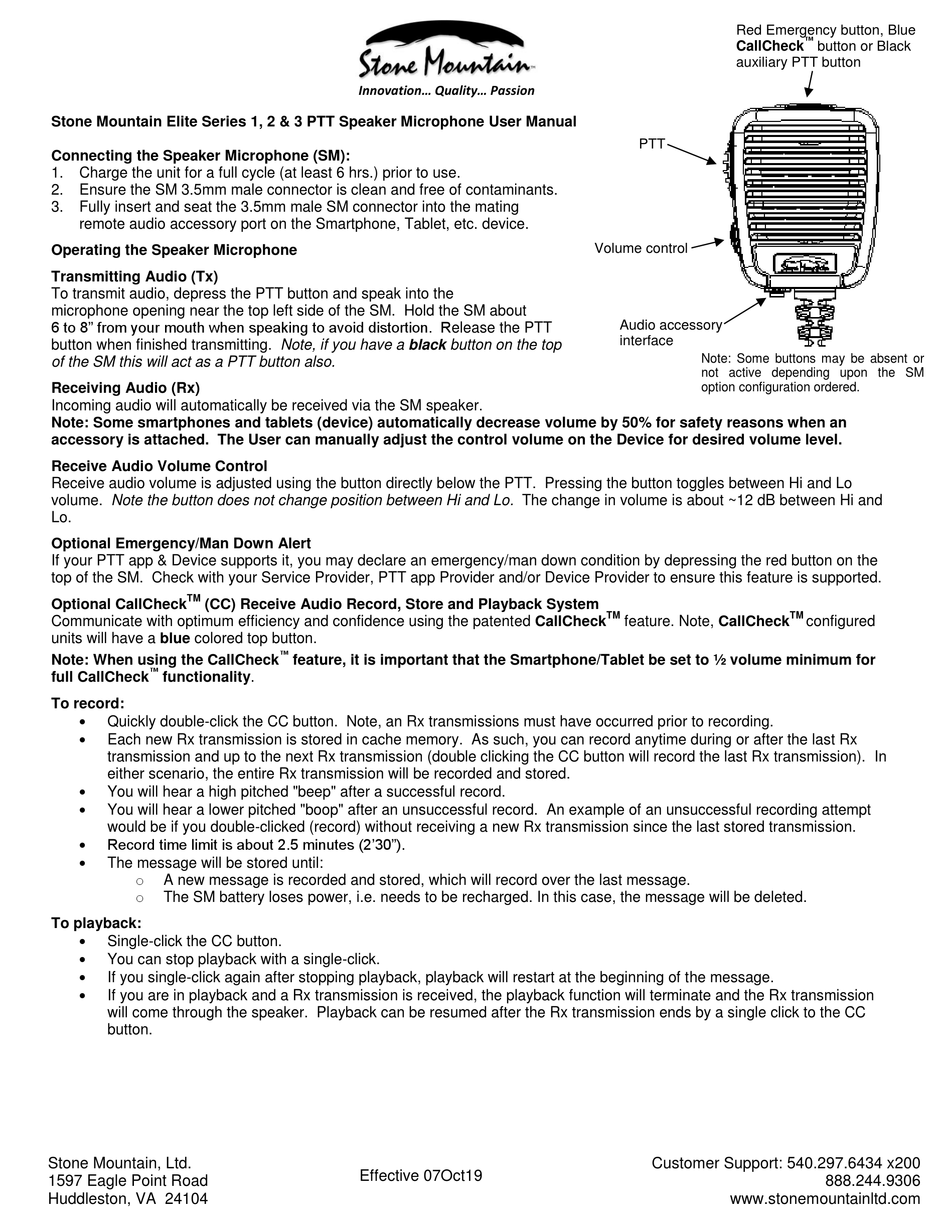

Stone Mountain Elite Series User Manual

Stone Mountain Elite Series 1, 2 & 3 PTT Speaker Microphone User Manual

Connecting the Speaker Microphone (SM):

1. Charge the unit for a full cycle (at least 6 hrs.) prior to use.
2. Ensure the SM 3.5mm male connector is clean and free of contaminants.
3. Fully insert and seat the 3.5mm male SM connector into the mating
remote audio accessory port on the Smartphone, Tablet, etc. device.

Operating the Speaker Microphone

Transmitting Audio (Tx)

To transmit audio, depress the PTT button and speak into the
microphone opening near the top left side of the SM. Hold the SM about
6 to 8" from your mouth when speaking to avoid distortion. Release the PTT
button when finished transmitting. Note, if you have a black button on the top
of the SM this will act as a PTT button also.

Receiving Audio (Rx)

Incoming audio will automatically be received via the SM speaker.
Note: Some smartphones and tablets (device) automatically decrease volume by 50% for safety reasons when an
accessory is attached. The User can manually adjust the control volume on the Device for desired volume level.

Receive Audio Volume Control

Receive audio volume is adjusted using the button directly below the PTT. Pressing the button toggles between Hi and Lo
volume. Note the button does not change position between Hi and Lo. The change in volume is about ~12 dB between Hi and
Lo.

Optional Emergency/Man Down Alert

If your PTT app & Device supports it, you may declare an emergency/man down condition by depressing the red button on the
top of the SM. Check with your Service Provider, PTT app Provider and/or Device Provider to ensure this feature is supported.
TM
Optional CallCheck (CC) Receive Audio Record, Store and Playback System
Communicate with optimum efficiency and confidence using the patented CallCheck
units will have a blue colored top button.
Note: When using the CallCheck
™
full CallCheck functionality.
To record:

Quickly double-click the CC button. Note, an Rx transmissions must have occurred prior to recording.

Each new Rx transmission is stored in cache memory. As such, you can record anytime during or after the last Rx
transmission and up to the next Rx transmission (double clicking the CC button will record the last Rx transmission). In
either scenario, the entire Rx transmission will be recorded and stored.

You will hear a high pitched "beep" after a successful record.

You will hear a lower pitched "boop" after an unsuccessful record. An example of an unsuccessful recording attempt
would be if you double-clicked (record) without receiving a new Rx transmission since the last stored transmission.

Record time limit is about 2.5 minutes (2'30").

The message will be stored until:
o
A new message is recorded and stored, which will record over the last message.
o
The SM battery loses power, i.e. needs to be recharged. In this case, the message will be deleted.
To playback:

Single-click the CC button.

You can stop playback with a single-click.

If you single-click again after stopping playback, playback will restart at the beginning of the message.

If you are in playback and a Rx transmission is received, the playback function will terminate and the Rx transmission
will come through the speaker. Playback can be resumed after the Rx transmission ends by a single click to the CC
button.
Stone Mountain, Ltd.
1597 Eagle Point Road
Huddleston, VA 24104
Innovation... Quality... Passion
™
feature, it is important that the Smartphone/Tablet be set to ½ volume minimum for
Effective 07Oct19
Red Emergency button, Blue
CallCheck
auxiliary PTT button
PTT
Volume control
Audio accessory
interface
Note: Some buttons may be absent or
not active depending upon the SM
option configuration ordered.
