Important notes before installing:

- Installing this product to your vehicle may require an adaptor. SAAS make a large range of
adaptors and installation parts, please check with your SAAS dealer for available adaptors.
- SAAS Muscle series gauges are designed for 12volt systems ONLY!
- All installation work should be done by a qualified professional to avoid damage to this product.
- SAAS RECOMMENDS all products be tested prior to installation. This will save time and speed up
the troubleshooting process if you encounter any issues.
Wire colour
White
Red
Green
Black
Orange
Rear of gauge
Colour change button
Note: Colour change
button is on the front
for Series II gauges.
Mounting studs for U bracket.
Fitting U bracket: Remove nuts
and replace with stud spacers
that are supplied in this kit.
Note: U brackets are not
available for 2 5/8 inch gauges.

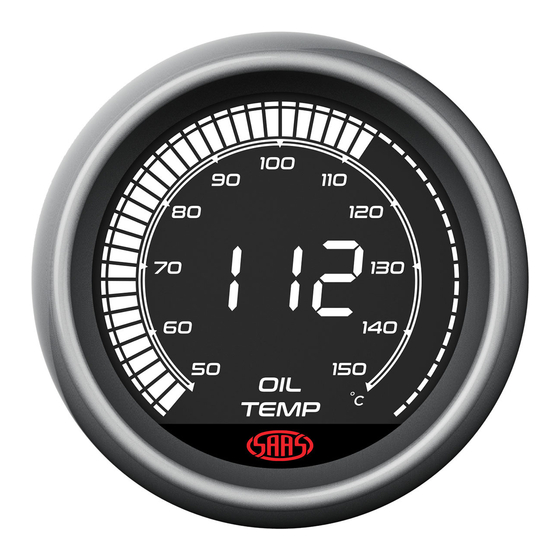

OIL TEMPERATURE
Installation Instructions

Wiring Guide:

Wire Function
Illumination 12V+ (
NOT adjustable
Ignition 12V+
Sensor input-
Ground 12V-
Battery 12V+

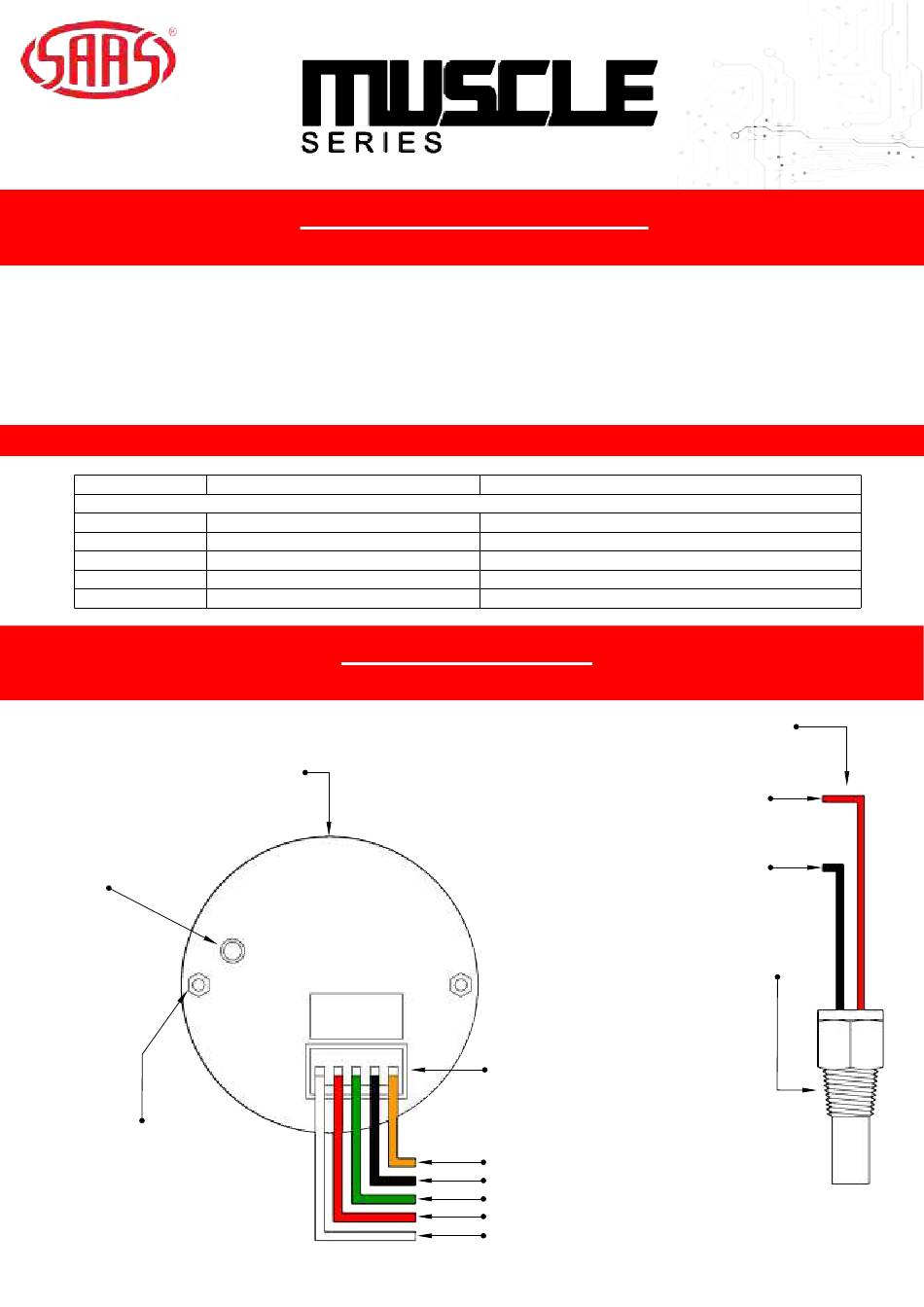

Wiring Diagram

Typical Layout
Batch #
Wire Connection Location
) Park light circuit (do NOT connect to a dimmer)
Ignition harness / Fuse box
Oil temp sender output (red wire of sender)
Vehicle body
Ignition harness / Fuse box
Oil temperature sender
Red - Sender output
(to green wire of gauge)
Black - Sender ground
(to chassis or (-) of battery
only, do not connect to engine)
1/8" NPT thread
(3/8" NPT bush adaptor is
included in kit)
Connector pinout
Battery 12V+
Ground 12V-
Sensor input-
Ignition 12V+
Illumination 12V+
Page 1/2
