v20230508
Important notes before installing:
- Installing this product to your vehicle may require an adaptor. SAAS offer a large range of
adaptors and installation parts; please check with your SAAS dealer for available adaptors.
- SAAS Muscle series gauges are designed for 12volt systems ONLY!
- All installation work should be done by a qualified professional to avoid damage to this product.
- SAAS RECOMMENDS all products be tested prior to installation. This will save time and speed up
the troubleshooting process if you encounter any issues.
- BEFORE installing, please check our website (shopsaas.com) for the latest fitting instructions.
If the top left corner (v) number is different to website, please use instructions from website.
Wire colour
Black
Yellow
White
Red
Power and link connector pinout.
Use any connector to power the
gauge and for less wiring use the
other connector with the supplied
link cable to power a second Muscle
Series 3 gauge ONLY!
TRANS TEMPERATURE
Installation Instructions
Wire Function
Ground 12V-
Park lights 12V+
Battery 12V+
Ignition 12V+

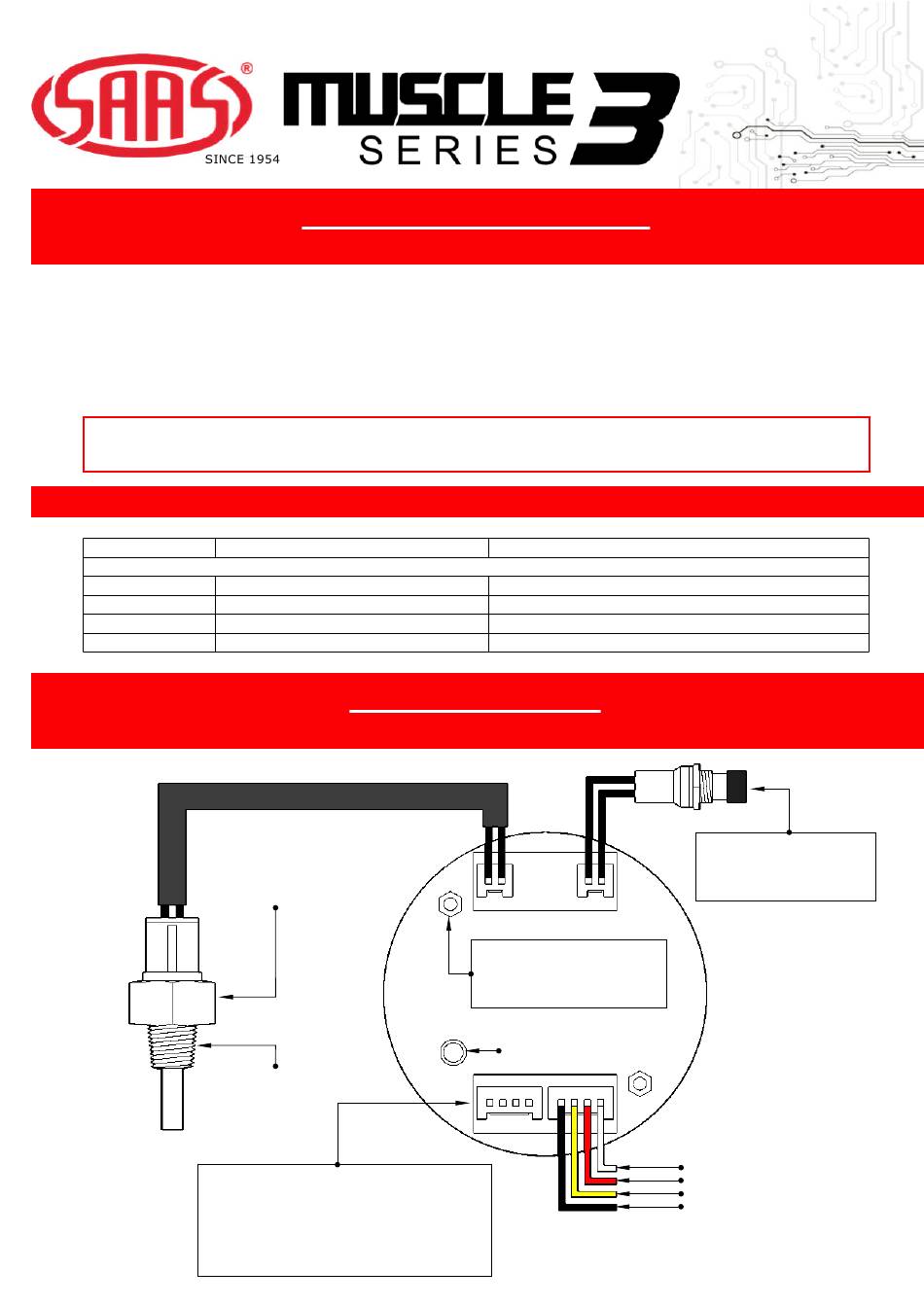

Wiring Diagram
Typical Layout
Trans temperature
sender
1/8" NPT thread
Wiring Guide:
Wire Connection Location
Vehicle body
Park light circuit (do NOT connect to a dimmer)
Ignition harness / Fuse box
Ignition harness / Fuse box
Fitting U bracket:
Remove nuts and add
stud spacers before fitting
U bracket if required.
Programming button
Part No: SG32222
2 inch-52mm
Remote programming
button. Fit under dash
for easier programming.
(Installation optional)
Ignition 12V+
Battery 12V+
Park lights 12V+
Ground 12V-
Page 1/4
