DMX512 Control

Notice: Be sure to follow 2 & 3 when making your own
cables. Do not connect the cable´s shield conductor
tto the ground lug or allow the shield conductor
to come in contact whith the XLR´s outer casing.
Grounding the shield could cause a short circuit and
erratic behaviour.

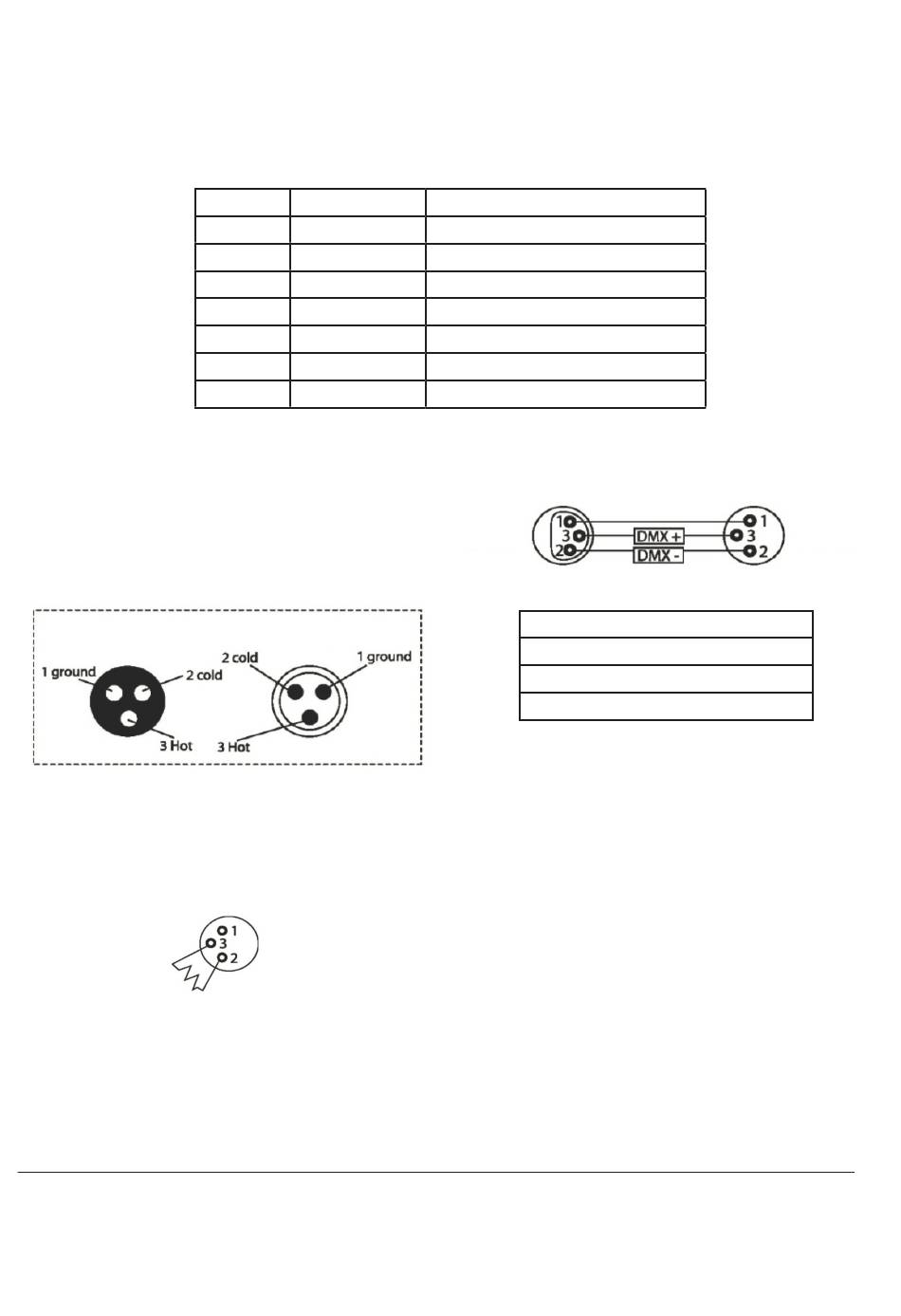

XLR MALE SOCKET
• When longer runs of cable are used, you may
need to use a terminator on the last unit to
avoid erratic behaviour.
• Termination reduces signal transmission
problems and interferance. It is always
advisable to connect a DMX terminal, (resistance
120 Ohm 1/4W) between pin 2 (DMX-) and pin 3
(DMX+) of the last fisture.
Design and product specifications are subject to change without prior notice.
CH Value
CH1 0-255
CH2 0-255
CH3 0-255
CH4 0-255
CH5 0-255
CH6 0-255
CH7 0-255
XLR FEMALE SOCKET
Figure 3
Function
Master-Dimmer
UV
UV
UV
Strobe Control
Speed
Macro function
DMX-512 out
3-pin XRL
XLR Pin Configuration
common
Pin 1: Ground
Pin 2: Negative
Pin 3: Positive
Figure 2
| Tecshow Cosmo UV
English version
DMX-512 in
3-pin XRL
