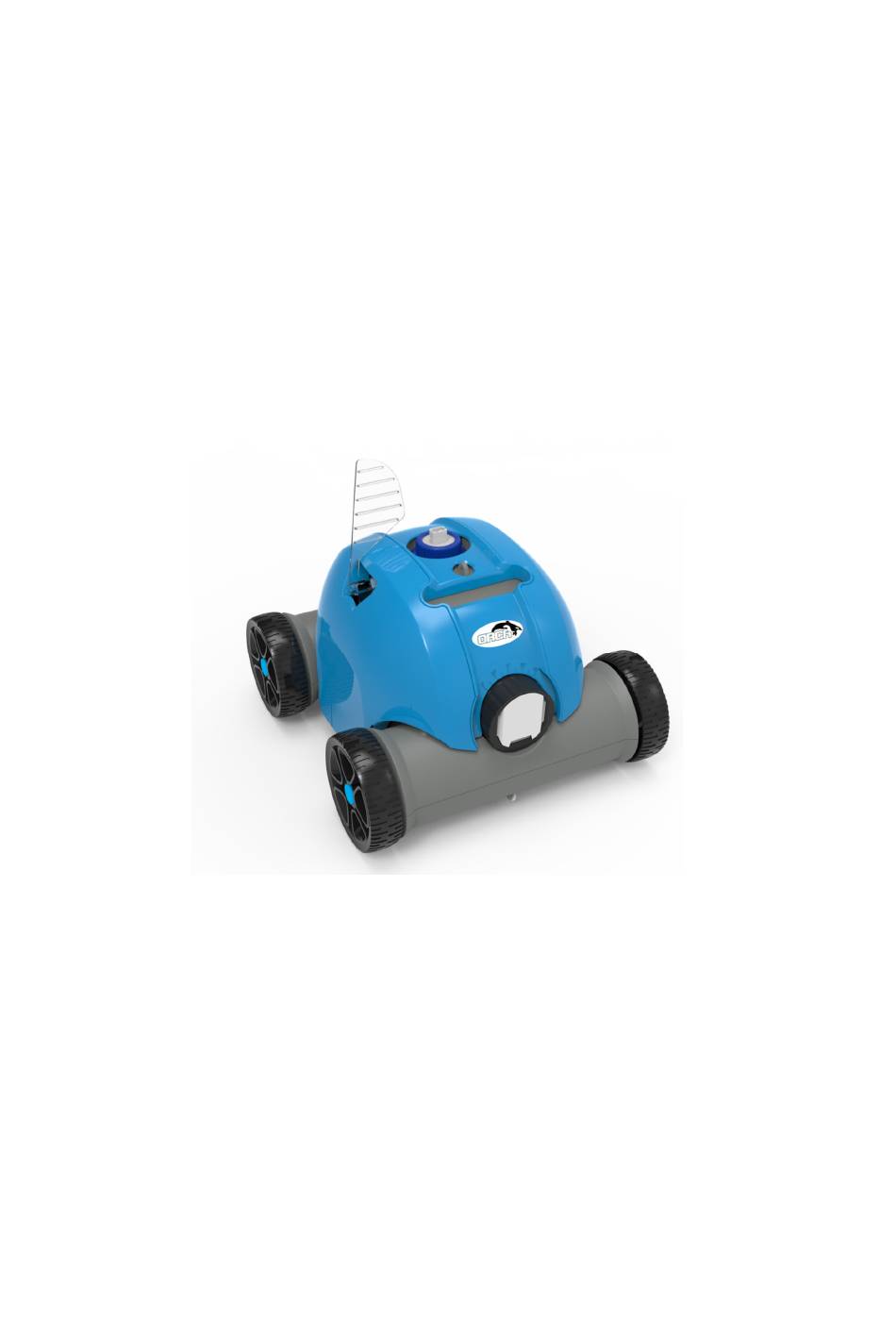

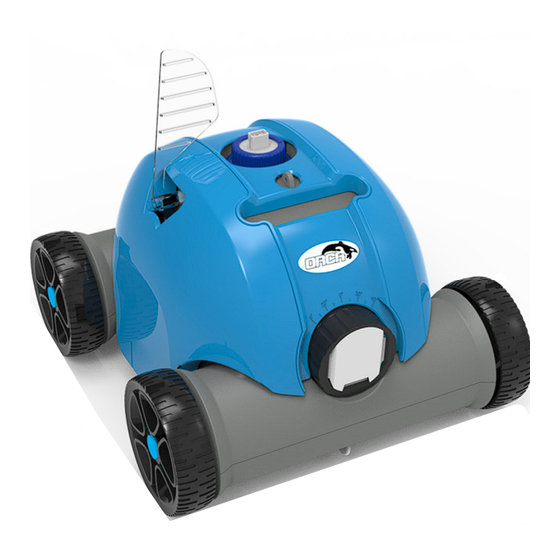

- Page 1 BATTERY POWERED POOL FLOOR CLEANER HJ1103J For SWIMMING POOL OF FLAT FLOOR USER MANUAL Subject to update by manufacturer without prior notice...
- Page 2 Important Precautions 1. Strictly prohibit using the cleaner beyond its operating conditions. Please read the manual carefully, and use it according to the manual. We have no responsibility for any loss or injury caused by improper use. 2. Use the accessories recommended or sold by the manufacturer only. 3.
- Page 3 affect the cleaning effect. 18. The cleaner should be charged every three months if it needs to be stored for a long time. Please use the original and authorized adapter only to ensure that the battery power is maintained at 40%-60%. The battery voltage will be lower than the over-discharge protection voltage due to the self-discharge of battery if not charging the battery for a long time, which will lead to fatal damage to the battery if continuing too long.
-
Page 5: Table Of Contents
Contents I. Introduction ........................1 II. Appearance characteristics & structure ..............1 III. Specifications ......................1 IV. Operation instruction ....................2 V. Trouble Shooting ....................... 11 VI. Packing list ........................ 12 VII. Warranty ........................12... -
Page 7: Introduction
Introduction The robotic pool cleaner HJ1103J is a new type of rechargeable automatic cleaning equipment for pools with the function of automatic beaching. Please read the manual carefully before use so that you can use it correctly. II. Appearance characteristics & structure... -
Page 8: Operation Instruction
9. Max. cleaning surface:80 ㎡ 10. Filter capacity: 10m³/h 11. Filter capability: 180µm 12. Pool water temperature: 10℃ -35℃ 13. Moving speed: appr. 16m/min 14. IP Grade: IPX8 15. Charging environment temperature: 0℃ -45℃ 16. Max. water depth: 2.0m 17. Size: 400(L)*360（W）*270（H）mm 18. - Page 9 b. Install the brush before use to avoid possible dirt leaks. c. Please ensure that top cover of the cleaner is tightly assembled with its chassis. d. Power off the cleaner after use. e. Do not touch the wall to avoid scratching the wall or damaging the cleaner when putting into or lift out from pool.
- Page 10 g. Lift the handle or clips of the cleaner out from the pool. 2. Quick operation a. Install the floating handle *Adjust the tow rope according to the swimming pool depth. *Tie the floating handle to the cleaner In the place indicated in the fig. b.
- Page 11 e. The blue light flashes three times after completing the working cycle and then the cleaner stops to run about 2 minutes later while the indicator light is steady blue. Statut Cleaner indicator Working Indicator blue flashes Work finished Indicator blue steady Fault Indicator blue flashes quickly f.
- Page 12 b. Recommended three CYCLEs and nozzle settings Setting One: default setting: 0°——20°, for most of pools. Nozzle angle Moving route...
- Page 13 Setting Two: 0°——40°, when the cleaner does not have a full coverage of pool. Nozzle angle Moving route...
- Page 14 Setting Three : 20°——20°, for round pools. Nozzle angle Moving route Note: above are recommended settings and different settings might apply to specific pools. So the operator can set according to the principle of nozzle settings and the actual situation of the pool...
- Page 15 4. Clean the filter tray a. Open the cleaner by clips b. Take off the filter tray c. Clean the filter tray and chassis...
- Page 16 d. Reassemble the cleaner e. Push the clips on 5. Installation and removal of swing plate The swing plate can be removed by poking the base buckle upwards and installed by inserting it into the base.
-
Page 17: Trouble Shooting
V. Trouble shooting Symptom Possible reason Solution The cleaner does not work and the Low remaining battery Charge the battery indicator light slowly capacity flashes. The cleaner does not work and the Internal fault Contact after-sale service indicator light rapidly flashes. -
Page 18: Packing List
VI. Packing list Item Name Model QTY(pc) Application Remark Cleaner body HJ1103J In carton Adapter XSG1261800 In carton User manual & In plastic bag certificate Brush In plastic bag Tow rope In plastic bag Floating handle In plastic bag Warranty Ⅶ... - Page 19 5. Any claim made or repair made during the warranty period will be subject to mandatory presentation of the invoice.
