OPERATOR'S MANUAL
HWH JOYSTICK-CONTROLLED
225 SERIES LEVELING SYSTEM
SPACEMAKER ROOM EXTENSION SYSTEMS
One, Two or Three Single Cylinder Room Extensions
Ph: 800/321-3494 (or) 563/724-3396 | Fax: 563/724-3408
AP29418
H H
W
CORPORATION
R
AND
R
FEATURING:
Joystick BI-AXIS Control
Hydraulic Leveling
Straight-Acting Jacks
Optional Travel Clamps
HWH
HYDRAULIC LEVELING
ON
NOT IN
PARK/
EXTEND
BRAKE
FRONT
EXTEND
EXTEND
LEFT
RIGHT
EXTEND
REAR
ON
OFF
CAUTION!
UNDERSTAND OPERATOR'S MANUAL BEFORE USING.
BLOCK FRAME AND TIRES SECURELY BEFORE
REMOVING TIRES OR CRAWLING UNDER VEHICLE.
HWH CORPORATION
(On I-80, Exit 267 South)
2096 Moscow Road | Moscow, Iowa 52760
www.hwh.com
R
R
OPERATE
STORE
FRONT
FUSE
5 AMP
STORE
REAR
OPERATE
ML29419/MP05.2404
13FEB03
Advertisement
Table of Contents
Related Manuals for HWH 225 Series
Summary of Contents for HWH 225 Series
- Page 1 CORPORATION OPERATOR’S MANUAL HWH JOYSTICK-CONTROLLED 225 SERIES LEVELING SYSTEM SPACEMAKER ROOM EXTENSION SYSTEMS FEATURING: Joystick BI-AXIS Control Hydraulic Leveling Straight-Acting Jacks One, Two or Three Single Cylinder Room Extensions Optional Travel Clamps HYDRAULIC LEVELING NOT IN OPERATE PARK/ EXTEND BRAKE...
-
Page 2: How To Obtain Warranty Service
HWH CORPORATION personnel will contact you to the problem quickly. If the dealer has difficulty solving determine whether or not your claim is valid. If it is, HWH the problem, he should immediately contact the Customer CORPORATION will authorize repair or replacement of the Service Department, at HWH CORPORATION. -
Page 3: Control Identification

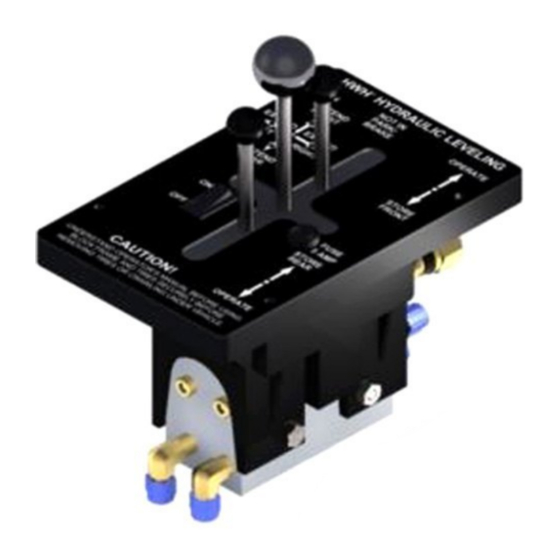

CONTROL IDENTIFICATION "NOT IN FRONT STORE LEVER PARK/BRAKE" LIGHT (Operate Position) HYDRAULIC LEVELING "ON" LIGHT NOT IN OPERATE PARK/ EXTEND FRONT STORE LEVER BRAKE FRONT (Store/Travel Position) WARNING LIGHTS (4 - Red) EXTEND EXTEND LEFT RIGHT STORE FRONT JACK CONTROL LEVER EXTEND REAR LEVELING LIGHTS... - Page 4 CONTROL IDENTIFICATION ROOM OPERATOR’S PANEL CORPORATION HYDRAULIC ROOM EXTENSION EXTEND ROOM CONTROL KEY SWITCH SWITCH CAUTION! UNDERSTAND OPERATOR’S MANUAL BEFORE USING. KEEP PEOPLE AND OBSTRUCTIONS RETRACT CLEAR OF ROOM WHEN OPERATING. CONTROL FUNCTIONS KEY SWITCH: The KEY SWITCH controls power to the ROOM ROOM CONTROL SWITCH: The ROOM CONTROL SWITCH CONTROL SWITCH.
