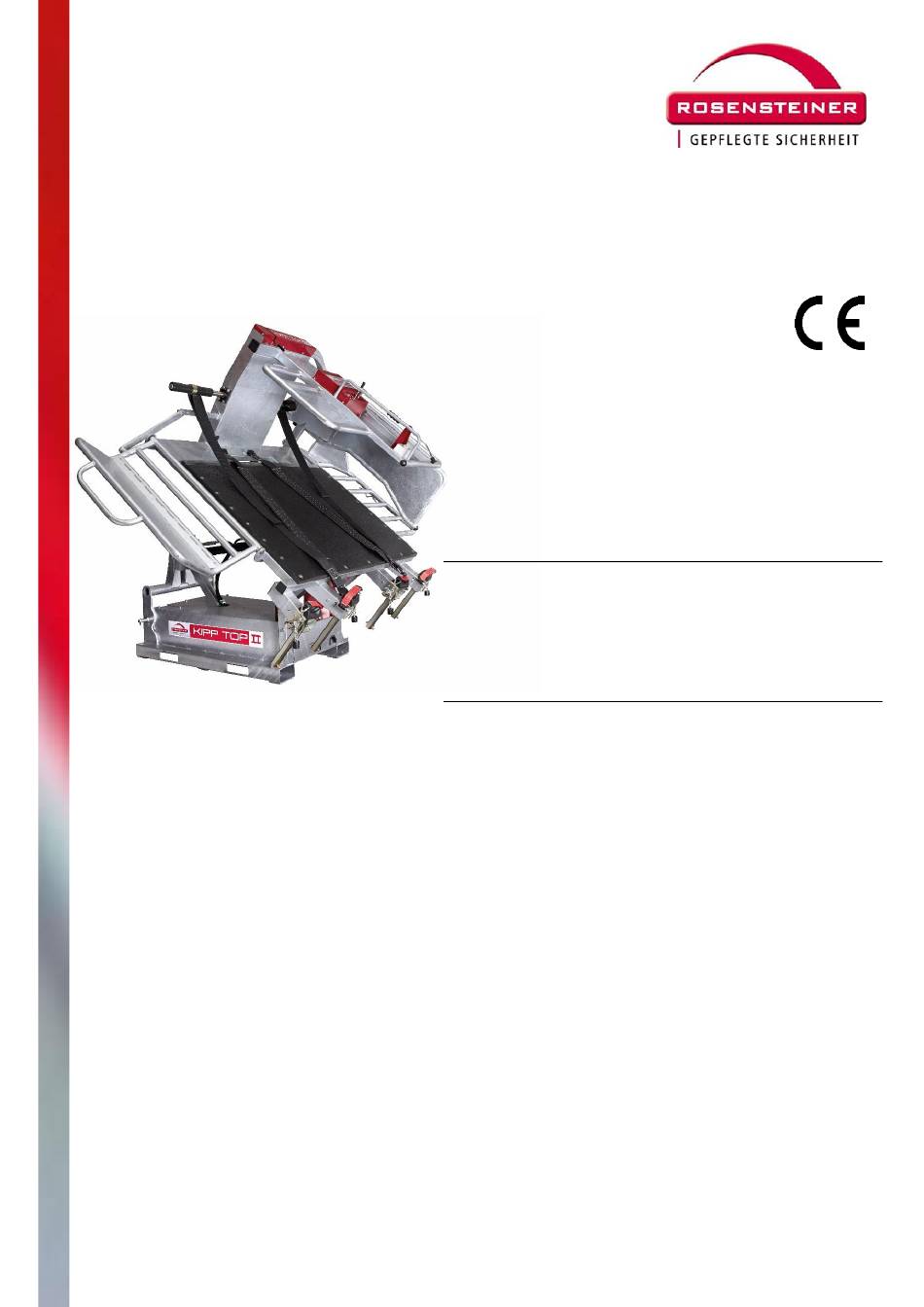

- Page 1 Operating and Servicing Instructions Incl. Transfer Documentation Hoof Trimming Crush Kipp Top Kipp Top II - Basic Kipp Top II - Comfort Kipp Top II - Professional Serial Number: Purchase Date: Must be read before first use! Keep for future reference! Valid as of: 05/2020...
-
Page 2: Table Of Contents
Operating and Servicing Instructions Contents INTRODUCTION ........................2 About this product ......................3 Intended use ..............Fehler! Textmarke nicht definiert. Examples of incorrect use ....................4 EU Declaration of conformity ..................... 5 Guarantee statement ............Fehler! Textmarke nicht definiert. Technical specifications ..................... 6 Data plate ................. -
Page 3: About This Product
You have purchased equipment with pioneering technology for the care of animal hooves in the Rosensteiner “Kipp Top II“ hoof trimming crush. The hoof trimming crush is for economic, periodic and proper care of hooves in a position that is ergonomic, functional and not tiring for the carer. -
Page 4: Intended Use
Operating and Servicing Instructions 1.2 Intended Use The Kipp Top II hoof trimming crush is intended solely for the care of animal hooves. The hoof trimming crush is suitable for cattle from 300 kg to a maximum of 1000 kg. Any action other than the “intended use“... -
Page 5: Eu Declaration Of Conformity
Rosensteiner. No expenditure will be covered without the express approval of the manufacturer. Faulty parts must be kept by the dealer or sent to Rosensteiner as agreed: the appliance must be brought by the customer carriage paid to the dealer. -
Page 6: Technical Specifications
Operating and Servicing Instructions 1.6 Technical Specification Machine type Hoof Trimming Crush Kipp Top II Dimensions 1960/2130/2060 (L/B/H) Recommended animal size 300-1000kg Tare weight 620 - 720 kg Attachment Three-point attachment Cat II Cushioning Rubber matting Cow Comfort 30mm Drive via 220V/1.8kW electro-hydraulic Upper surface galvanized... -
Page 7: Changes To These Operating Instructions
It is a legal part of your machine. You can also find the operating instructions on our homepage www.rosensteiner.at 1.8.5 Spatial Limits The equipment is designed for mobile use at different locations. -
Page 8: Pictograms In The Operating Instructions And On The Machine
Operating and Servicing Instructions Useful additional information in free text is labelled with an adjacent info button. SIGNAL WORD Type and source of the hazard and the associated risk! Possible consequences for people, machine parts, tools and workpiece – residual risk! Actions for avoidance of the risk to life and limb and reduction of the residual risk. -
Page 9: Transport
Operating and Servicing Instructions Caution -Tipping hazard, secure hoof trimming crush against tipping. 2 Transport 2.1 Hitching the Hoof Trimming Crush to a Tractor WARNING To transport the hoof trimming crush by tractor, the balls of the lower link are first connected to the lower link pin of the Kipp Top II. -
Page 10: Removal Of The Hoof Trimming Crush From The Tractor And Setting Down
Operating and Servicing Instructions Transporting animals with the hoof trimming crush is forbidden without exception! 2.3 Removal of the Hoof Trimming Crush from the Tractor and Setting Down Proceed as follows to set down the hoof trimming crush: WARNING ... -
Page 11: Starting / Operation
Operating and Servicing Instructions 3 Starting / Operation 3.1 View of the Appliance / Main Operating Elements Kipp Top II Comfort Item. Designation Item. Designation Locking-catching device Winding rod Drive-in bar Motor switch Lift/lower lever Safety catch Locking lever Foot holder Emergency program cover Plug Catching device... -
Page 12: Safety Instructions Before Starting
Operating and Servicing Instructions 3.2 Safety before Starting NOTICE When first switching on, you should get the assistance from someone with experience of the appliance and with hoof care. Do not carry out hoof care immediately after feeding! WARNING ... -
Page 13: Procedure For Starting The Hoof Trimming Crush
Rosensteiner GmbH cannot accept any responsibility for the correct design! 2) switch on the unit using the plug (10) (230V, 50Hz) and switch on using the main switch (4). - Page 14 Operating and Servicing Instructions 3) lower the table by pulling the lever (5). (ensure that the appliance is sufficiently secured against tipping) 4) Open the catching device (6) by pulling the locking lever (7) and fold the head bar (13) out into the working position and lock it using the spring lock.
-
Page 15: Commissioning / Cessation Of Work
Operating and Servicing Instructions Catching Device Position for Driving in with a Halter 4 Decommissioning / Cessation of Work See appliance view(s) for numbering in the following. If there are interruptions to work, or at the end of work, the ignition key of the tractor must be removed. -
Page 16: Cleaning
Operating and Servicing Instructions 5 Cleaning NOTICE If cleaning agents are used, follow the safety instructions in the accompanying safety data sheet. Dispose of cleaning water according to the national regulations. When cleaning with high pressure cleaners, wear safety glasses. ... -
Page 17: Servicing And Care
Operating and Servicing Instructions Loosening bolt connections: when opening bolted connections, open them slowly to release pressure in the lines. Opening of outlet points with bolt connections: do not remove bolt connections of outlet points until the system is de-pressurised. The pressure must be completely released before opening pipe connections and pressurised systems 6.3 Servicing and Care... -
Page 18: Regular Inspection
Operating and Servicing Instructions After expiry of the guarantee period, we recommend the use of original parts to ensure constant efficiency of the machine. In the event of guarantee claims, please contact your local sales and service partner. 8 Regular Inspection NOTICE The electrical installation of the machine must be subjected to an annual inspection by a qualified person. -
Page 19: Scope Of Delivery / Accessories
Easily accessible service openings Complete base frame galvanised Art. No. Type Description 14 000B Kipp Top II Basic according to series equipment 14 000C Kipp Top II Comfort o mech. Drive-in gate o Equipment box for tools (2x flex, 2x knife-holder) - Page 20 Side-line activity Business Yes, I would like to receive the free Rosensteiner newsletter (e-mail address required) I agree to being named as a reference customer. I confirm that the operating instructions were handed to me with the appliance, and that the operating, safety and servicing regulations were also explained to me.
