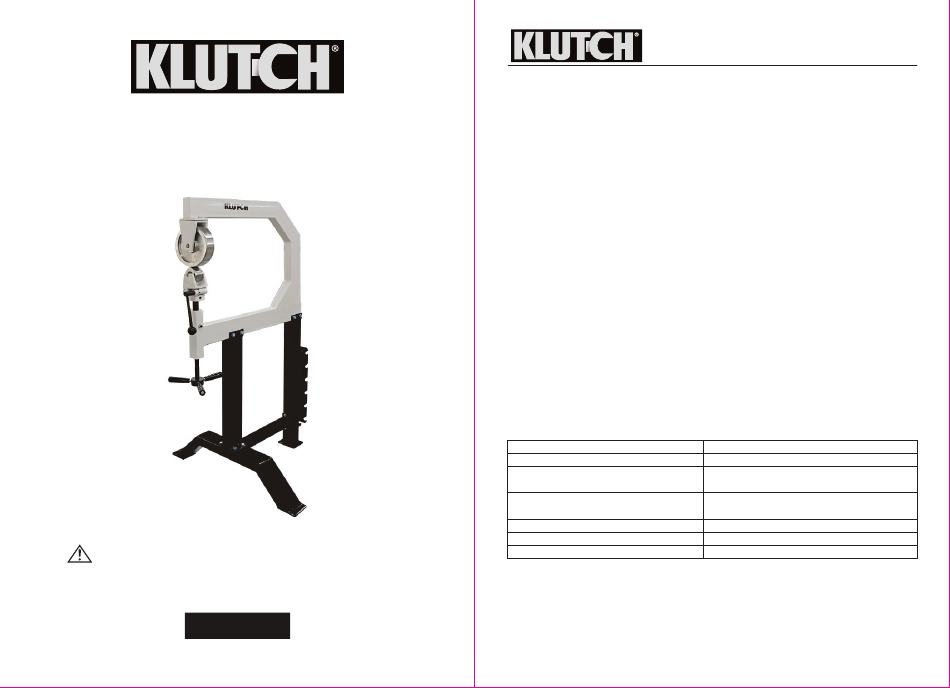

ENGLISH WHEEL WITH STAND
OWNER'S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and
other basic safety precautions may result in serious personal injury.
Item# 49703
Thank you very much for choosing a Klutch product. For future reference, please complete the
owner's record below:
Serial Number/Lot Date Code: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
Thismanual pipe bender, with or without the base, is designed for certain applications only.
Northern Tool and Equipment cannot be responsible for issues arising from modification or use
of this product in an application for which it was not designed. We strongly recommend that
this product not be modified and/or used for any application other than that for which it was
designed.
For technical questions please call 1-800-222-5381.
Table of Contents
Intended Use ----------------------------------------------------------------------------------------------- 1
Technical Specifications ---------------------------------------------------------------------------------- 1
Important Safety Information ----------------------------------------------------------------------------- 2
Specific Operation Warnings ----------------------------------------------------------------------------- 3
Assembly --------------------------------------------------------------------------------------------------- 3
Before Each Use ------------------------------------------------------------------------------------------- 4
Operating Instructions ------------------------------------------------------------------------------------ 4
After Each Use --------------------------------------------------------------------------------------------- 4
Maintenance ----------------------------------------------------------------------------------------------- 4
Parts Diagram ----------------------------------------------------------------------------------------------5
Parts List --------------------------------------------------------------------------------------------------- 6
Replacement Parts ---------------------------------------------------------------------------------------- 6
Limited Warranty ------------------------------------------------------------------------------------------- 6
Intended Use
The English wheel is ideal for shaping, fabrication, smoothing dents or weld seams in fenders,
hoods and trunk panels. It is also excellent for polishing aluminum, etc.
Technical Specifications
Property
Throat Depth (in.)
Capacity
Accessory
Overall
Dimension (in.)
Ship Weight (lbs.)
ENGLISH WHEEL WITH STAND
OWNER'S MANUAL
Purchase Date: _______________
Specification
28"
Handles sheet metal to 16 gauge (1.2mm),
copper and aluminum to 14 gauge (1.9mm)
1pc 8in. dia. x 2in. W top anvil and
1pc 3in. dia. x 2in.
radius bottom anvil
35-1/2 x 34-5/8 x 60-1/4
180
1 of 7
