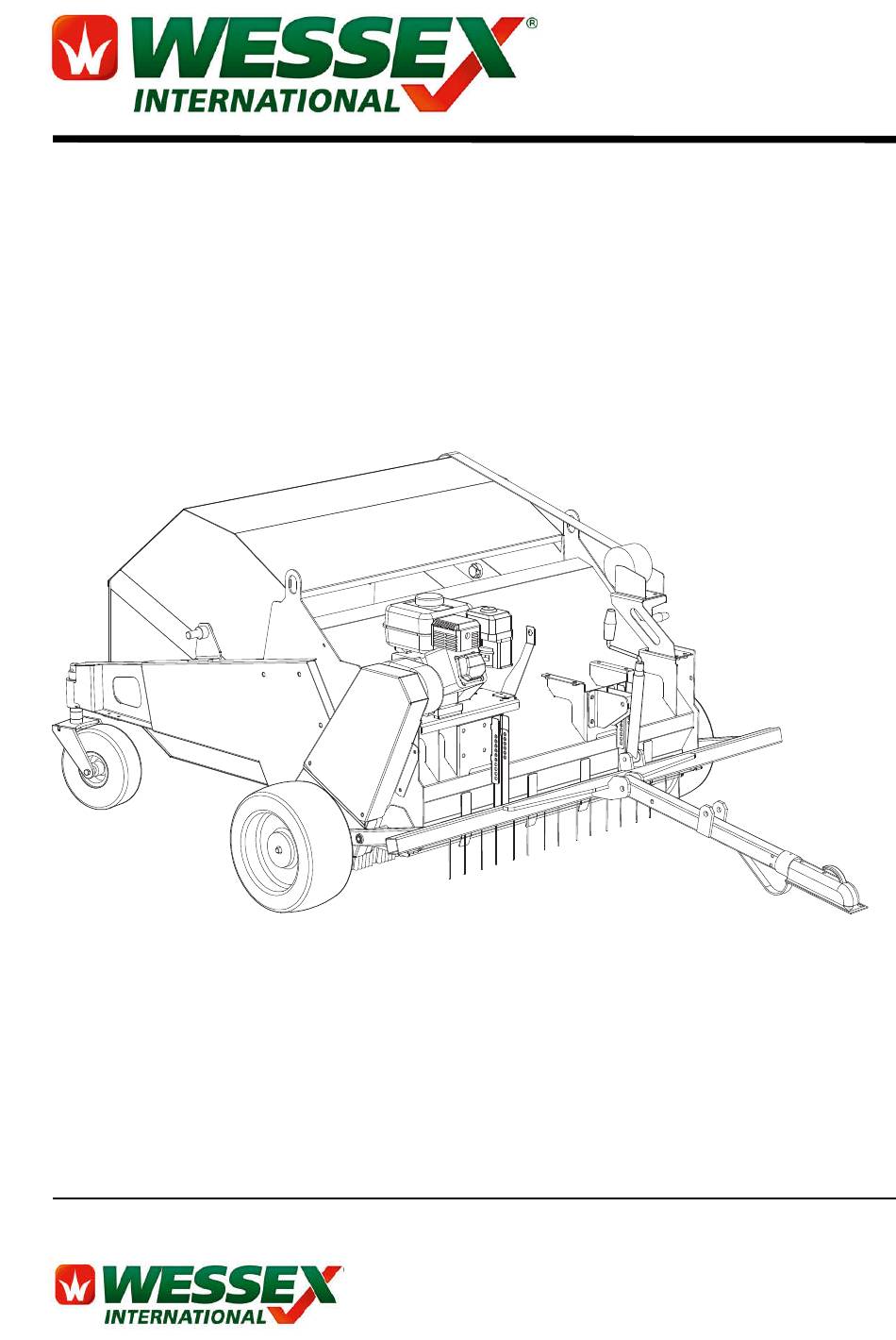

- Page 1 Operation Manual and Parts Book Wessex MTC 120 and MTX 120 Sweeper (MKII) Paddock Cleaner & Dung Beetle Range Product Code: L2052 Issue January 2016...
-
Page 3: Table Of Contents
Welcome to your new Wessex Product ........ -
Page 4: Welcome To Your New Wessex Product
WELCOME TO YOUR NEW WESSEX PRODUCT Thank you for purchasing a Wessex Product. As a Wessex customer, you now number among the most important people of our business and we will endeavour to give you the best service available through our dealer network. -
Page 5: Safety Decals
SAFETY DECALS GB ATTENTION Description of pictograms. Description des pictogrames. ATTENTION Beschreigung der piktogramme. VORSICH GB Read Operating manual before use. Lisez Manual D’Opéreration avant l’utilisation. Vor der Benutzung, Betriebshandbuch lesen. GB Do not use without pto shaft guard. Ne pas utiliser sans de dispositif de sûreté de l’abre (arbre d’entraînement). Nicht benutzen ohne p.t.o. - Page 6 SAFETY DECALS GB Replace brushes when worn to 130mm of bristle. Remplacez la brosse à 130 mm de longuer de poil. Die Bürsten sind zu wechseln, wenn die Borsten nur noch 130mm lang sind. GB Always stop rotor before emptying hopper. Arrêtez le rotor avant de vider la trémie.
- Page 7 P.T.O. Shaft. ● Ensure that the shaft and guard is regulary greased to avoid overheating and to give lubrication. ● Important: Thoroughly read through the manufacturers instruction book before using the P.T.O. Shaft. P.T.O.Shafts are not covered by the Wessex Warranty.
-
Page 8: Important Safety Warnings
IMPORTANT SAFETY WARNINGS Wessex sweepers are guarded for your protection, but you must always observe certain elementary precautions. Sweepers are potentially dangerous and should be used with the greatest respect and ALL OPERATORS MUST read this manual and be are aware of all safety precautions. -
Page 9: Important Atv Safety Warnings
IMPORTANT ATV SAFETY WARNINGS READ THE FOLLOWING CAREFULLY IMPORTANT SAFETY INSTRUCTIONS ON COUPLING IMPLEMENTS AND ATTACHMENTS TO ATV’S TRAINING It is most essential that all operators of ATV’s are trained by a certified training organisation. It is strictly forbidden that any person under 16 years of age should ride an ATV. Any person 17 years of age must have had training before towing a trailer with an ATV. - Page 10 Take extra care when towing on hillsides, slopes or rough terrain. OPERATING ON ROADS The Wessex MT sweeper is not designed for travelling distances on roads but when crossing or going short distances always travel slowly and do not exceed 10 KPH.
-
Page 11: Warranty
WARRANTY Your Wessex product or equipment is warranted free from defect in workmanship or manufacture for one year from date of purchase. Any parts which appear to us to be defective, either in material or workmanship shall be replaced or repaired at... -
Page 12: Setting Up Your Wessex Sweeper Collector
Please note: White Wessex bristles have been developed for use in general sweeping (leaves and twigs) on fine turf. The yellow bristles are coarser and intended for dung collection. Using the correct bristles will ensure the best performance. -
Page 13: Compensating For Brush Wear
EMPTYING THE HOPPER The hopper of the Wessex Sweeper tips forward towards the vehicle when using the hand winch. REMEMBER , KEEP HOLD OF THE HANDLE WHEN CLOSING HOPPER. 1. Grip handle. -
Page 14: Maintenance / Belt Adjustment / Lubrication
MAINTENANCE IMPORTANT! Check that all fastening sets (bolts and nuts) are tight after the first hour of operation. BELT ADJUSTMENT The belts are tensioned in the factory but they will stretch after two or three hours work. It is important to check and re-tension at this point. To tighten the belts, stop the machine and remove the belt cover, then adjust the belt tension by adjusting the jockey pulley adjuster. -
Page 15: Troubleshooting
TROUBLESHOOTING FAULT CAUSE REMEDY Not sweeping correctly 1. Driving too fast 1. Slow down 2. Worn brushes 2. Replace brushes 3. Belts slipping 3. Adjust belt tension 4. Brushes set too high/low 4. Adjust brush height 5. Dung tines too high 5. -
Page 16: Parts Illustration - Mainframe Assembly - Plate 1
PARTS ILLUSTRATION - MAINFRAME ASSEMBLY - PLATE 1 4,5,6 9,10,11 38,39,40,41,42,43 34,35 12,13 14,15 32,33 16,17,18,19 30,31 28,29 25,26,27 22,23,24 20,21 PLATE 1... -
Page 17: Parts List - Mainframe Assembly - Plate 1
PARTS LIST - MAINFRAME ASSEMBLY - PLATE 1 Item No. Part No. Description Qty. per Machine WX-3430 Winch WX-9503 Winch Fastening Set WX-3530 Winch Strap WX-2820 Strap Support Tube WX-9603 Strap Support Tube Fastening Set WX-32276 Winch Hopper Bracket WX-34880 Handle WX-34401 Handle Fastening Set... - Page 18 PARTS ILLUSTRATION - MAINFRAME ASSEMBLY - PLATE 1 4,5,6 9,10,11 38,39,40,41,42,43 34,35 12,13 14,15 32,33 16,17,18,19 30,31 28,29 25,26,27 22,23,24 20,21 PLATE 1...
- Page 19 PARTS LIST - MAINFRAME ASSEMBLY - PLATE 1 Item No. Part No. Description Qty. per Machine WX-34980 50x50 Plastic End Cap WX-17651 Front Wheel Frame WX-19277 Belt Guard (Lower) WX-34101 Belt Guard (Lower) Fastening Set WX-31976 Belt Guard (Upper) WX-34101 Belt Guard (Upper) Fastening Set WX-31876 Belt Guard (Inner)
-
Page 20: Parts Illustration - Engine Drive Assembly - Plate 2
PARTS ILLUSTRATION - ENGINE DRIVE ASSEMBLY - PLATE 2 25,26 PLATE 2... -
Page 21: Parts List - Engine Drive Assembly - Plate 2
PARTS LIST - ENGINE DRIVE ASSEMBLY - PLATE 2 Item No. Part No. Description Qty. per Machine WX-6460 Loncin Engine WX-6756 Throttle Cable WX-0541 Bearing Unit WX-1101 Bearing Fastening Set (Non Drive End) WX-11066 1.2m MT Brush Rotor WX-5001 Brush Fastening Set (3 Bolts) WX-0647 Rotor Key WX-6562... -
Page 22: Parts Illustration - Pto Drive Assembly - Plate 3
PARTS ILLUSTRATION - PTO DRIVE ASSEMBLY - PLATE 3 27,28 29,30,31,32 33,34 36,37 PLATE 3... -
Page 23: Parts List - Pto Drive Assembly - Plate 3
PARTS LIST - PTO DRIVE ASSEMBLY - PLATE 3 Item No. Part No. Description Qty. per Machine WX-18577 Driveshaft Shield (Upper) WX-34101 Cover Fastening Set WX-0541 Bearing Unit WX-1101 Bearing Fastening Set (Non Drive End) WX-11066 Brush Rotor WX-5001 Brush Fastening Set (3 Bolts) WX-0647 Rotor Key WX-8762... -
Page 24: Parts Illustration / Parts List - Rear Wheel Assembly - Plate 4
REAR WHEEL ASSEMBLY - PLATE 4 PLATE 4 Item No. Part No. Description Qty. per Machine WX-17451 Side Arm - Left Hand WX-17551 Side Arm - Right Hand WX-0127 Linch Pin WX-16751 15mm Spacer WX-31880 Bush WX-16651 25mm Spacer WX-1450 Wheel Fork WX-16103 Wheel Fastening Set... -
Page 25: Parts Illustration / Parts List - Spring Tine Option Plate 5
SPRING TINE OPTION - PLATE 5 PLATE 5 Item No. Part No. Description Qty. per Machine WX-31576 Tine Bar WX-1128 Retaining Pin WX-11303 Tine Fastening Set WX-3125 Tine... -
Page 26: Pto Shaft - Operation And Maintenance
PTO SHAFT OPERATION AND MAINTENANCE - MT120-P ONLY IMPORTANT! PTO drive shafts must only be used for their intended purpose. PTO drive shafts are designed for specific machine types and power requirements. They must not be replaced by other models. Ensure that the PTO drive shaft is securely connected. - Page 27 PTO SHAFT OPERATION AND MAINTENANCE MT120-P ONLY LENGTH ADJUSTMENT To adjust the length, hold the half-shafts next to each other in the shortest working position and mark them. Shorten inner and outer guard tubes equally. Shorten inner and outer sliding profiles by the same length as the guard tubes.
-
Page 28: Ce Certificate
MTC/MTX 120 SWEEPER COLLECTOR 30/04/2015... - Page 30 Wessex International Charlton House, Caxton Close, East Portway Industrial Estate, Andover Hampshire. SP10 3QN Telephone: 01264 345870 Fax 01264 345880 e-mail: sales@wessexintl.com www.wessexintl.com...
