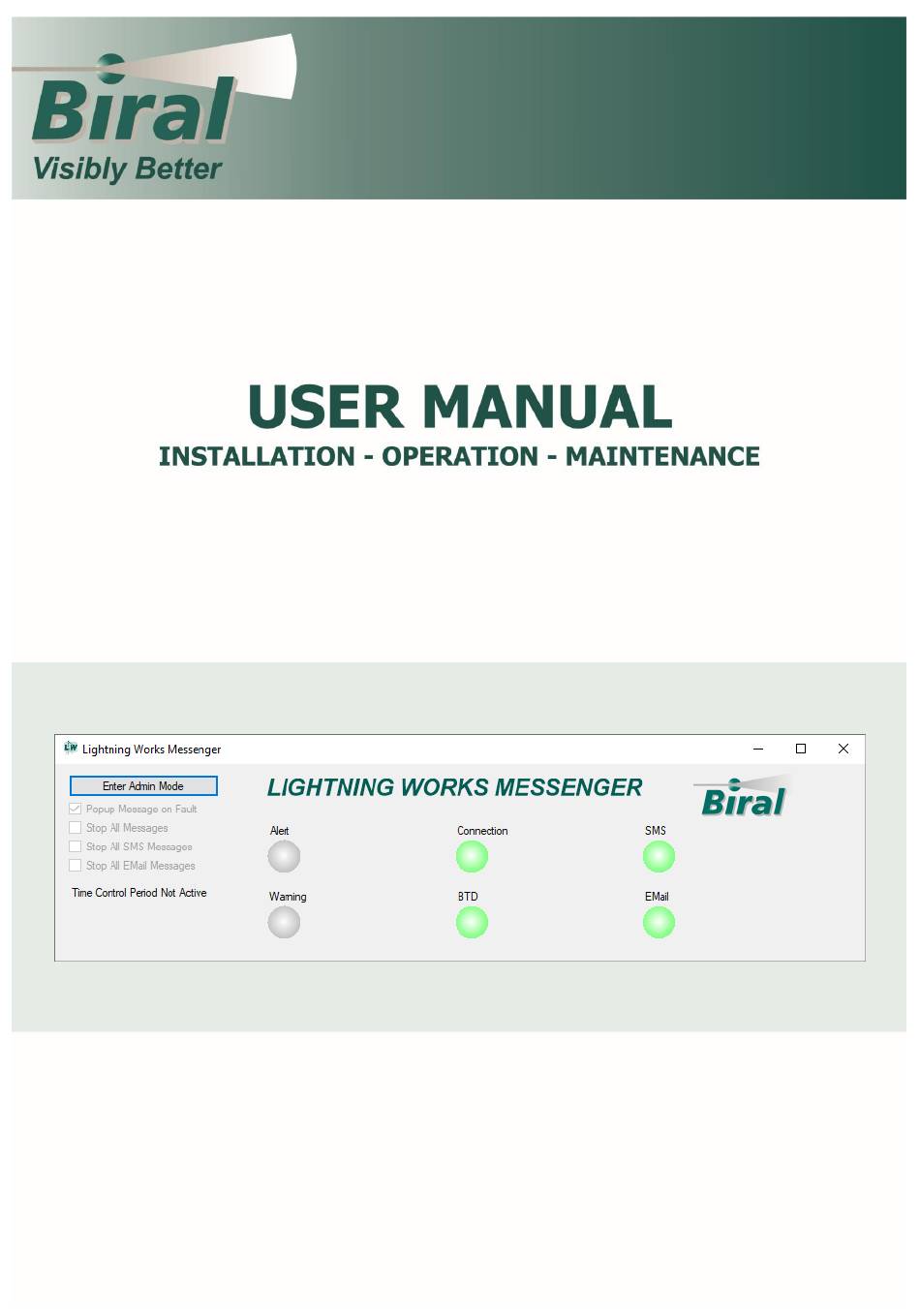

  • Page 1 BTD-200 Lightning Works Messenger BTD-200 Lightning Works Messenger...
  • Page 3 PROPRIETARY NOTICE The information contained in this manual (including all illustrations, drawings, schematics and parts lists) is proprietary to BIRAL. It is provided for the sole purpose of aiding the buyer or user in operating and maintaining the software. This information is not to be used for the manufacture or sale of similar items without written permission.

  • Page 4: Table Of Contents

    After Sales Support ..................5 Safety......................5 Contacting Biral ................... 6 SUPPLIED EQUIPMENT ................7 BTD-200 LIGHTNING WORKS MESSENGER ........... 8 BTD-200 System Overview ................8 Lightning Works Messenger Overview ............8 BTD-200 System Compatibility ..............9 LIGHTNING WORKS MESSENGER INSTALLATION ....... 10 Introduction ....................
  • Page 5 Lightning Works Messenger Indicators ............27 Activity Log ....................29 INDEX ....................31 LIST OF FIGURES Figure 5-1 LWM Admin Mode ............... 14 Figure 7-1 LWM Normal Mode .............. 27...

  • Page 6: How To Use This Manual

    HOW TO USE THIS MANUAL The manual is organised so that if you read it from start to finish you will have a good understanding of how the Lightning Works Messenger operates, how it should be installed and how to use it. We realise however that different people may be involved in the installation and use of the system, so the following guidance is given.

  • Page 7: General Information

    After Sales Support Biral offers support by telephone and email for the lifetime of our products, even if there has been a change of ownership, so please get in touch if you require help.

  • Page 8: Contacting Biral

    + 44 (0)1275 847303 Contact us by email at: service@biral.com If you bought your system from a local agent, you may wish to contact them in the first instance. No matter how you got your system Biral is here to help.

  • Page 9: Supplied Equipment

    SUPPLIED EQUIPMENT The following equipment is supplied in the Lightning Works Messenger pack. Please check the contents carefully and immediately report any missing items to your supplier. Picture Part No. No. Supplied Description BTD20.LWM 1 USB Drive. Holds the software as well as an electronic copy of this manual 107794...

  • Page 10: Btd-200 Lightning Works Messenger

    BTD-200 System Overview The BTD-200 sensor detects the presence of lightning flashes and the possibility of overhead lightning even before the first flash. The sensor must be mounted outside in an open area where it can sense changes in the Earth’s electrostatic field caused by thunderstorms.

  • Page 11: Btd-200 System Compatibility

    The computer must have a reliable internet connection. Use of the Lightning Works Messenger is controlled by an activation code which is linked to the serial number of the BTD-200 sensor in the system. Activation codes are available from Biral as described in Section 5.8.1.

  • Page 12: Lightning Works Messenger Installation

    Thunderstorm Detector, its Lightning Works software or the Lightning Works Messenger for a particular purpose or use. Biral does not warrant, guarantee or make any representations regarding the use or the results of the use of the BTD-200 Thunderstorm Detector or the software.

  • Page 13: Compatible Operating Systems

    The capability of exporting the recipient data in .CSV file format is provided. Files exported using this facility are not encrypted and it is therefore the user’s responsibility to ensure local data protection requirements are met. Compatible Operating Systems The Lightning Works Messenger has been tested for use with the following Microsoft operating systems: •...

  • Page 14: Installing The Software

    Installing the Software 5.6.1 Installation To install the Lightning Works Messenger software on a computer, follow the steps below. 1. Insert the BTD20.LWM USB Drive into a suitable USB port of the computer, wait for the drive to be recognised and then use file explorer to locate the Lightning Works Messenger folder.
  • Page 15 The software is now ready to use. 5.6.2 Running the Lightning Works Messenger Software To start the software for the first time, see section 5.7. The Lightning Works Messenger can be configured to start automatically with the computer, or it can be started by doubling clicking on the desktop icon. The software may also be configured to start minimised to the system tray area of the task bar.

  • Page 16: Running The Software For The First Time

    Running the Software for the First Time The first time the program starts a dialog box will appear asking for the default username and password to be entered. Enter the following: Username: admin Password: admin Once the default details have been entered a new dialog box will open to create an administrator login.

  • Page 17: Activating The Lightning Works Messenger Software

    The Lightning Works Messenger software serial number is shown on the envelope containing the USB drive. The BTD-200 serial number can be found on the label on the sensor, on the sensor test certificate or in Help\About window of the Lightning Works Client. The BTD-200 serial number is also shown in the “About Lightning Works Messenger”...

  • Page 18: Configuring Lightning Works Messenger

    CONFIGURING LIGHTNING WORKS MESSENGER Once the Lightning Works Messenger software has been activated it must be configured. All configuration actions are performed in Admin Mode, essential configuration activities include entering a list of recipients and the SMS and/or email service provider details. Entering the Email Service Provider Details To send thunderstorm warning emails an email account is required, this may be an existing email account or a new one dedicated to issuing thunderstorm warnings.

  • Page 19: Selecting An Sms Service Provider

    Once valid email account details have been entered the Email indicator in the top section of the Lightning Works Messenger window will turn green provided message sending is not disabled by the checkboxes in the top left of the main window. If message sending is disabled, the Email indicator will remain grey.
  • Page 20 the Sender ID along with the recipient’s phone number. The SMS service provider then sends the message as an SMS over the phone network. The Sender ID is what the recipient sees to tell them who the SMS message came from.
  • Page 21 6.2.2 Twilio SMS Service Provider Programable SMS Twilio describe the required SMS service as on their website. They offer local telephone numbers in a wide range of countries as well as allowing you to enter text for the Sender ID. 6.2.2.1 Configuring the Twilio SMS Service Select “Twilio”...
  • Page 22 6.2.3 IntelliSMS Service Provider SMS Message Sending IntelliSMS describe the required SMS service as on their website. They offer local telephone numbers in a wide range of countries as well as allowing you to enter text and telephone numbers for the Sender ID. 6.2.3.1 Configuring the IntelliSMS Service Select “IntelliSMS”...
  • Page 23 6.2.4 Nexmo Service Provider SMS API Nexmo describe the required SMS service as simply on their website. They offer local telephone numbers in a wide range of countries as well as allowing you to enter text and telephone numbers for the Sender ID. 6.2.4.1 Configuring the Nexmo Service Select “Nexmo”...
  • Page 24 6.2.5 TextMagic API Service Provider SMS Gateway API TextMagic describe the required SMS service as on their website. They offer local telephone numbers in a wide range of countries as well as allowing you to enter text for the Sender ID or use their default number. 6.2.5.1 Configuring the TextMagic API Service Select “TextMagicAPI”...

  • Page 25: Entering And Editing Recipient Details

    Entering and Editing Recipient Details Recipients are people who will receive notifications when thunderstorm activity is detected. To enter recipient details, select the “Recipient” tab and click on “Add”, a new window will open with the following fields. Field Name Description Entry Type Recipient Name...

  • Page 26: Message Sending Controls

    The text included in each SMS and email message is set in two text boxes in the “Settings” tab when in Admin mode. The “Message BTD Location” should be used to describe the location of the BTD-200 sensor, such as “Watleys End Golf Club”.

  • Page 27: Time Control

    Click the “Save Settings” button to confirm the entered text. Time Control The Time Control function is used to stop Lightning Works Messenger sending SMS and email messages during a user defined period of the day, such as during the night.

  • Page 28: Adding Administrators

    To enable popup messages when faults are detected, tick the “Popup Message on Fault” tick box located in the top left section of the main window. This tick box is only enabled in Admin mode. Click the “Save Settings” button to confirm your selections. Adding Administrators Administrative users may be added or edited using the “Users”...

  • Page 29: Using Lightning Works Messenger

    Note: The Connection, BTD, SMS and Email indicators may take some time to change state when the application starts or a setting is changed. This is caused by the synchronisation of the BTD-200 system components and the response time of the SMS and email service providers.
  • Page 30 • Flashing Red No Server Connection 7.2.4 BTD The BTD indicator shows the status of the BTD-200 and the connection from the Lightning Works Server to the BTD-200. The following states are possible: • Solid Green BTD-200 connected and operational •...

  • Page 31: Activity Log

    Activity Log The Activity Log records important information about the operation of the Lightning Work Messenger and errors associated with connections to the BTD-200 and SMS and Email Service providers. The Activity Log may be useful in helping to diagnose reported errors.
  • Page 32 Log display area. A file dialogue window will appear to allow you specify the required file name and location, this will be followed by a dialogue box that allows the start and end dates to be specified. The “Clear” button below the Activity Log display area clears the display. The information stored in the Activity Log is not cleared and may still be exported.

  • Page 33: Index

    INDEX ......................... 29 CTIVITY ......................26 DDING DMINISTRATORS ........................ 5 FTER ALES UPPORT .......................... 25 TART ........................6 ONTACT ETAILS ........................10 RIVACY ......................16 MAIL ERVICE ROVIDER ........................25 UMP TO RONT ....................... 25 ANGUAGE ELECTION ....................8, 10 IGHTNING ORKS OFTWARE...
  • Page 34 ..........................23 ECIPIENTS ........................... 5 AFETY SMS A ......................22 CCOUNT ALANCE SMS M ......................17 ESSAGING ASICS SMS S ......................17 ERVICE ROVIDER IntelliSMS ........................20 Nexmo ..........................21 TextMagic ........................22 Twilio ..........................19 ......................15 OFTWARE CTIVATION .....................
  • Page 35 Notes:...
