Biral BTD-200 User Manual

Biral BTD-200 User Manual

Lightning warning system
Hide thumbs Also See for BTD-200:
Table of Contents

Advertisement

Quick Links

Download this manual
BTD-200
Lightning Warning System
BTD-200
Lightning Warning System
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTD-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Biral BTD-200

Summary of Contents for Biral BTD-200

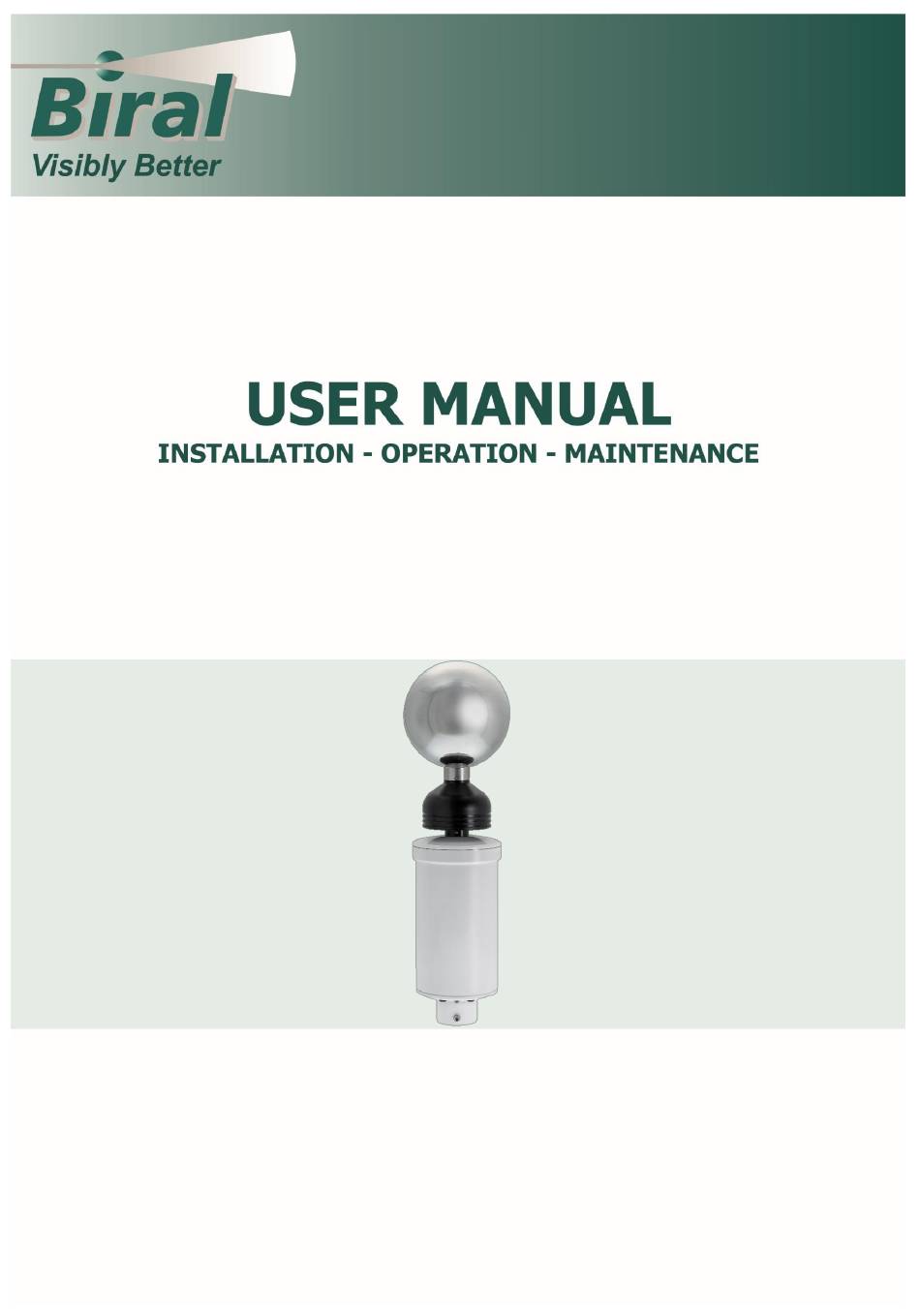

  • Page 1 BTD-200 Lightning Warning System BTD-200 Lightning Warning System...
  • Page 3 The information contained in this manual (including all illustrations, drawings, schematics and parts lists) is proprietary to BIRAL. It is provided for the sole purpose of aiding the buyer or user in operating and maintaining the sensor. This information is not to be used for the manufacture or sale of similar items without written permission.

  • Page 4: Table Of Contents

    BTD-200 Data Archive ................20 SENSOR INSTALLATION ..............21 Site Selection .................... 21 Mounting the BTD-200 to a Pole ..............23 Mounting the BTD-200 to a Wall ..............24 Installing an Earth Connection ..............25 Removing and Refitting the Outer Cover ............26 Setting Your Configuration .................
  • Page 5 10.10 Included with Sensor ................. 63 10.11 Lightning Works Software ................63 INDEX ....................64 LIST OF FIGURES Figure 5-1 Obstacle Distances .............. 21 Figure 5-2 Site Suitability Considerations ..........22 Figure 5-3 BTD-200 Pole Mounting ............23 Figure 5-4 BTD-200 Wall Mounting ............24...
  • Page 6 Figure 5-5 BTD-200 Earth Connection ........... 25 Figure 5-6 Cover Fasteners ..............26 Figure 5-7 BTD-200 Terminal Board ............27 Figure 5-8 Power Adaptor Terminal Block ..........29 Figure 5-9 SCIU Connections & Jumpers ..........32 Figure 6-1 Main Tab ................40 Figure 6-2 Administrator Tab ..............

  • Page 7: How To Use This Manual

    IT department about where to install the server part of the software. Use and Maintenance Section 4, The BTD-200 System, describes how the system operates and how it can be configured to your needs. This section should be read by the person responsible for operating the system.

  • Page 8: General Information

    After Sales Support Biral offers support by telephone and email for the lifetime of our products, even if there has been a change of ownership, so please get in touch if you require help.

  • Page 9: Contacting Biral

    Your full name, address and contact details If you need to return the sensor The BTD-200 sensor should give you many years of trouble-free service but in the unlikely event that the equipment proves to be faulty and we have asked you to...

  • Page 10: Ce Certification

    CE Certification All Biral’s BTD sensors comply with the requirements for CE marking. Once installed, it is the user’s responsibility to ensure that all connections made to the equipment comply with all Local and National safety requirements. Safety 2.9.1 Earthing This product MUST BE EARTHED.

  • Page 11: Supplied Equipment

    SUPPLIED EQUIPMENT The following equipment is supplied in the BTD-200 carton. Please check the contents carefully and immediately report any missing items to your supplier. Picture Part No. No. Supplied Description BTD20 BTD-200 Thunderstorm detection sensor BA.001 Universal AC Power adaptor Indoor use only BA.000...

  • Page 12: The Btd-200 System

    Base Control Box also has relays for connection to your site warning system. The relays have the same function as those in the BTD-200 sensor. You can connect your computer or server directly to the Base Control Box using either USB or Ethernet, this replaces the data connection from the BTD-200 to the computer.
  • Page 13 The Wide Area Sounder is controlled by a data link that may come from either the BTD-200 or the Base Control Box. The ability to connect to either the BTD-200 or Base Control Box is provided to make installation as flexible and easy as possible.

  • Page 14: System Configurations

    System Configurations A BTD-200 system can be put together in several ways depending on the needs of the user and the chosen equipment. This section looks at the features available to the user in various configurations. 4.2.1 Standalone Use The simplest possible configuration. The BTD-200 sensor connects to your site warning system using the built in relays.
  • Page 15 Section 4.4.3. 4.2.2 Connected Directly to a Computer The BTD-200 can connect directly to a user’s computer or a group of computers on a local network using either a wired data connection or a Radio Module link. The Lightning Works software can then run on up to five networked computers allowing lightning warnings to be displayed along with system health status.

  • Page 16: Other Equipment You May Have Purchased

    Warnings and Alerts. Connecting the BTD-200 to a Base Control Box does not stop you using the BTD-200 relays, indeed the relays in both the BTD-200 and Base Control Box can be used at the same time. When a Base Control Box is connected to the BTD-200, any connection to a user’s computer or network must be made through the Base Control Box USB or Ethernet connection.
  • Page 17 5m (16’) or 10m (32’) of 10mm (7 AWG) copper cable are available from Biral. 4.3.6 BTD-200 Mounting Pole For mounting the BTD-200 to a level concrete base a 1.50m (59”) high pole with 250mm (10”) square base is available.

  • Page 18: Understanding Warnings And Alerts

    Vicinity and Distant. The three bands are represented by concentric circles centred on the BTD-200. When the size of the band is given the value is the distance from the BTD-200 to the outer edge of the band. The size of the bands can be adjusted using the Lightning Works software, the allowable values and the defaults are given in the table below.

  • Page 19: How The Relays Work

    The relays on the Base Control Box function in exactly the same way as those in the BTD-200, either or both sets of relays can be used. The way these relays operate and how they can be configured is explained in this section.
  • Page 20 The duration for which the Warning relay closes to Time signal the end of thunderstorm activity.  Warning Persistence The time delay from the BTD-200 detecting the last Time instance of thunderstorm activity and the closing of the relay to signal the end of the Warning.
  • Page 21 The Relay inactive time is set using the Lightning Works Software. The inactive period start and end times are entered using the 24-hour clock format. The BTD-200 internal clock is used to control the switching time, make sure it is set to local time.

  • Page 22: Btd-200 Data Archive

    BTD-200 Data Archive The BTD-200 communicates with the Lightning Works software and Base Control Box by sending digital messages over the primary communications link. The Lightning Works software archives these messages on the server computer, so they can be exported at a later date. You might want to do this to see when Warnings and Alerts were generated on a particular day or to prove that you have an effective lightning warning system in operation.

  • Page 23: Sensor Installation

    SENSOR INSTALLATION Site Selection It is very important for the successful operation of the BTD-200 that it is installed at a suitable site. Please consider the following when selecting your installation site: Ideal site (gives best performance)  Flat, level ground with no obstacles higher than approximately 20cm (10”) (including vegetation) within 2m (79”) of the sensor...

  • Page 24: Figure 5-2 Site Suitability Considerations

    When the installation site is not ideal, the distance to lightning discharges as reported by the BTD-200 may be greater or less than it should be. This can be corrected using the Site Correction Factor. Calculating the Site Correction Factor is...

  • Page 25: Mounting The Btd-200 To A Pole

    Mounting the BTD-200 to a Pole Mount the BTD-200 to a suitable pole as shown in Figure 5-3 below. The pole can have any outside diameter between 46mm and 53mm (1.8” to 2.0”) with a height of 1.5m (59”) above ground level. A mounting pole suitable for use with concrete foundations is available from Biral if required (Part No.

  • Page 26: Mounting The Btd-200 To A Wall

    Use the BTD-200 wall mounting kit (Part No. BA.023) or suitable alternative to provide a secure fixing for the mounting pole. See Figure 5-4 below for suitable locations. Always mount the base of the BTD-200 at least 1.5m (59”) higher than the wall or roof level. Figure 5-4 BTD-200 Wall...

  • Page 27: Installing An Earth Connection

    Connect the earth wire to the M6 threaded stud as shown in Figure 5-5 below. A M4 earth stud is provided inside the BTD-200 on the chassis for connection of a protective ground wire associated with wiring to the relays.

  • Page 28: Removing And Refitting The Outer Cover

    Removing and Refitting the Outer Cover To remove the main cover, loosen the three hex head captive fasteners shown in Figure 5-6 below with the supplied 3mm Hex key. Grip the outside of the cover and pull downwards. Carefully lower the cover until it is supported by the earth strap that connects the cover to the main body.

  • Page 29: Setting Your Configuration

    Setting Your Configuration Before the BTD-200 can operate you must tell it about the other components in the system, this is done using the Configuration Switches inside the BTD-200. With the power to the BTD-200 disconnected or turned off and the outer cover removed, locate the System Configuration switches on the terminal board.

  • Page 30: Table 5-1 Configuration Switch Settings

    Switch Number Table 5-1 Configuration Switch Settings If you add additional components to your system in the future, you will need to update the configuration settings. Switch 8 is reserved for other functions. Do not change the position of this switch or the system may not operate as expected.

  • Page 31: Connecting Power To The Btd-200

    Connecting Power to the BTD-200 5.7.1 Mains Power Supply and Cable The BTD-200 is supplied with a universal AC mains to DC power adaptor. This power adaptor is suitable for indoor use only. The output of the power adaptor is fully isolated from the mains input supply and ground connection.

  • Page 32: Connecting The Primary Data Cable

    BTD-200. Take care to avoid looping the cable around the cover’s earth strap or you will not be able to refit the cover. Strip the power cable outer insulation back approximately 35mm (1.3”). Strip the conductor insulation back 7mm (0.28”).
  • Page 33 Serial Communications Interface Unit, the primary data cable connects directly to the Base Control Box. Having run the primary data cable from the BTD-200 to the location of the computer cut off any excess cable, always ensuring enough remains to easily reach the computer.

  • Page 34: Figure 5-9 Sciu Connections & Jumpers

    Pass the prepared cable through the cable gland. Connect the wires to the connector terminals as shown in the table below. The conductor colours listed in the table below relate to Biral supplied cable, if you have provided your own cable the colours may differ.

  • Page 35: Connecting To The Relays

    BTD-200. Take care to avoid looping the cable around the cover’s earth strap or you will not be able to refit the cover.

  • Page 36: Btd-200 Status Indicator

    Figure 5-7. 5.10 BTD-200 Status Indicator An indicator light is located on the base of the BTD-200 to provide a visual check of the sensor’s status. When the BTD-200 is powered and operating without any faults the indicator will show steady green.

  • Page 37: Lightning Works Software

    The Lightning Works software allows up to five users to view Warnings and Alerts generated by the BTD-200 system on networked PCs. One of the users can be an administrator who can also configure the system and reset Warnings and Alerts.

  • Page 38: Compatible Operating Systems

    Choosing the Server Computer In a system where the BTD-200 system connects to your computer system using the Serial Communications Interface Unit the Lightning Works server software must be installed on the computer connected to the Serial Communications Interface Unit.

  • Page 39: Installing The Serial Communications Interface Unit Driver

    1. Connect the USB cable from the Serial Communications Interface Unit to your chosen computer. It does not matter if the BTD-200 is powered or not at this stage. 2. Your computer should automatically detect the device and start the installation process.
  • Page 40 5. When the software has successfully installed you will see the following window. The software is now running and will start automatically whenever the computer is started. 6.6.2 Running the Lightning Works Server Software The server software runs as a service on your computer so does not have a program icon.

  • Page 41: Installing The Lightning Works Client Software

    Installing the Lightning Works Client Software To install the Lightning Works Client software on a computer, follow the steps below. 1. Insert the BTD20.LW USB Drive into a suitable USB port of the computer, wait for the drive to be recognised and then use file explorer to locate the Lightning Works Client folder.

  • Page 42: Configuring The Lightning Works Software

    Figure 6-1. This may take several minutes depending on the performance of the computer. If the Main tab does not appear check that the BTD-200 is turned on, the configuration code has been correctly set on the switches inside the BTD-200 and that all connections are correctly wired.

  • Page 43: Figure 6-2 Administrator Tab

    The Administrator tab will appear as in Figure 6-2 below. Figure 6-2 Administrator Tab Whilst the BTD-200 is sampling it is not possible to change any system settings other than the Administrator password, all other settings will be greyed out. To allow changes to be made click on the Stop button in the Operating Mode section of the tab.
  • Page 44 To set the BTD-200 clock to the same time as your PC click on the Set Time button in the BTD-200 Time area of the screen. You may want to perform this action every few months to ensure the BTD-200 clock...
  • Page 45 6.8.2.5 Map Settings For a map to be displayed in the Main tab the coordinates of the BTD-200 must be entered in the Map Settings area. Coordinates are entered in a decimal point format such as 51.491729 -2.757886. For a map to be displayed the computer on which the Lightning Works client is installed must be connected to the internet.
  • Page 46 The times are entered in HH:MM:SS format. To never disable the relays, enter 00:00:00 in both boxes. Note: The time used for this function is the BTD-200 internal clock time, make sure you have set the internal clock to local time if using this function.

  • Page 47: Figure 6-3 User Settings Tab

    Figure 6-3 User Settings Tab 6.8.3.1 Local Warning and Alert Sounds When a Warning or Alert is issued by the BTD-200 the user’s computer can be set to play a sound through the PC’s speaker. For this function to work the PC speaker must be enabled and turned on.
  • Page 48 After the Snooze time the indicator will resume flashing and the sound will start playing if the Warning or Alert is still active for the BTD-200 system. The length of time a Warning or Alert is cancelled for can be set by entering the required time in the Snooze Time dialogue box.

  • Page 49: Using The Lightning Works Software

    Click on the Save button to confirm your settings. 6.8.3.6 Flash Display Settings When the BTD-200 detects a lightning flash the number of flashes detected increments in the Flashes section of the main tab. The length of time a flash is included in the display total can be set by using the Flash Display Settings area.
  • Page 50 The map display area in the top left of the Main tab will display a Google terrain map of the area around the BTD-200 if the coordinates have been set; see Section 6.8.2.5 for details of setting the coordinates. The three circles that overlay the map represent the overhead, vicinity and distant warning bands.
  • Page 51 The righthand section of the Main tab is dedicated to the Activity Log. This area will display all Warnings and Alerts and the cause as they are detected by the BTD-200. When no thunderstorm activity is detected nothing is added to the activity log, during a thunderstorm the log can update every 2 seconds.

  • Page 52: Maintenance

    It is recommended that any heavy buildup of spider webs and dirt is removed from the BTD-200 sensor. This can be achieved with a brush and water hose as required. Small amounts of detergent can be used to clean the sensor if desired but make sure the sensor is thoroughly rinsed to remove all traces of detergent.

  • Page 53: Adjusting The Site Correction Factor

    ADJUSTING THE SITE CORRECTION FACTOR If the BTD-200 is installed at a different height than recommended, on the roof of a building or close to tall objects, the lightning distance reported by the detector may be inaccurate. If you notice a systematic difference between actual distance to a...

  • Page 54: Entering The Correction Factor

    Actual and Reported boxes. In the Reported Distance box, enter the distance reported by the BTD-200 for the same lightning activity, using the same units as for the actual distance (e.g. kilometres). Click on the SET button to complete the process.

  • Page 55: Understanding Exported Data

    The BTD-200 produces three types of data message:  No Flash Message. This message type is output by the BTD-200 every minute when there is no thunderstorm activity. The message serves to record configuration, operating state and health of the BTD-200 system. It also acts as an indicator that the BTD-200 is powered and active.
  • Page 56 Date BTD-200 date. DD/MM/YY Time BTD-200 Time. HH:MM:SS Records the configuration using the binary values Configuration of the BTD-200 configuration switches. Displayed as a decimal integer. 0 = Not sampling Operating Mode 1 = Sampling 0 = No Warning Warning State...

  • Page 57: Flash Message

    BTD-200 date. DD/MM/YY Time BTD-200 Time. HH:MM:SS Records the configuration using the binary values Configuration of the BTD-200 configuration switches. Displayed as a decimal integer. The number of lightning flashes detected in the last Flash Count 2 seconds 0 = No thunderstorm activity detected...
  • Page 58 32 = Overhead lightning flash detected When multiple phenomenon occur, the values are added together. 0 = All components OK 1 = BTD-200 fault 2 = User Computer fault 4 = Base Control Box fault System Health 8 = Wide Area Sounder fault...
  • Page 59 Field No. Field Name Description Date of the first detected lightning flash in the last Flash 1 Date 2 seconds. DD/MM/YY Time of the first lightning flash detected in the last Flash 1 Time 2 seconds. HH:MM:SS Flash 1 Time, Milliseconds from field 16 of first lightning flash.

  • Page 60: Status Message

    STATUS: Marks the no status message Sensor ID Always 1 Date BTD-200 date. DD/MM/YY Time BTD-200 Time. HH:MM:SS Records the configuration using the binary values Configuration of the BTD-200 configuration switches. Displayed as a decimal integer. 0 = Not sampling Operating Mode 1 = Sampling...
  • Page 61 Field No. Field Name Description 0 = All components OK 1 = BTD-200 fault 2 = User Computer fault 4 = Base Control Box fault System Health 8 = Wide Area Sounder fault Status 16 = Reserved 32 = Radio Module fault...

  • Page 62: Specifications

    SPECIFICATIONS 10.1 Measurement Lightning detection Cloud-to-ground, intracloud and cloud-to- cloud lightning. Thunderstorm activity for Charged precipitation and strong electric field advanced warning of lightning Lightning detection range 35 km, 21.7 miles Range resolution 1 km Detection efficiency 95% for a single lightning flash 99% for storm with 2 lightning flashes 99.9% for storm with 3 lightning flashes For flashes within 35 km...

  • Page 63: Outputs

    Warning state Fault All relays 16 VAC, 35V DC 5A Connection method Screw terminals 10.4 Cables and Glands BTD-200 Cable glands 6 off 3.5mm (0.14”) to 7mm (0.28”) 2 off 4.5mm (0.18”) to 10mm (0.39”) Power Cable Recommended cable. 22AWG or greater (For lengths less than 100m, 328’)

  • Page 64: Power Requirements

    10.5 Power Requirements BTD-200 Supply Voltage 9 to 30 V DC BTD-200 Power Consumption Less than 6 W (DC) Mains Power Adaptor 110 to 240 VAC 50 to 60Hz 24 V DC Output 10.6 Environmental Operating temperature -20°C to 50°C...

  • Page 65: Included With Sensor

    10.10 Included with Sensor Universal input mains power supply adaptor Optically isolated Serial RS422 to USB adaptor (SCIU) Manual Lightning Works software on USB drive 3mm and 6mm Hex keys 10.11 Lightning Works Software Multi-user capability. Maximum of 5 simultaneous users Map overlay showing lightning distance bands Warning state icons Sensor health status display...
