Summary of Contents for PCE Health and Fitness PCE-LDC 8

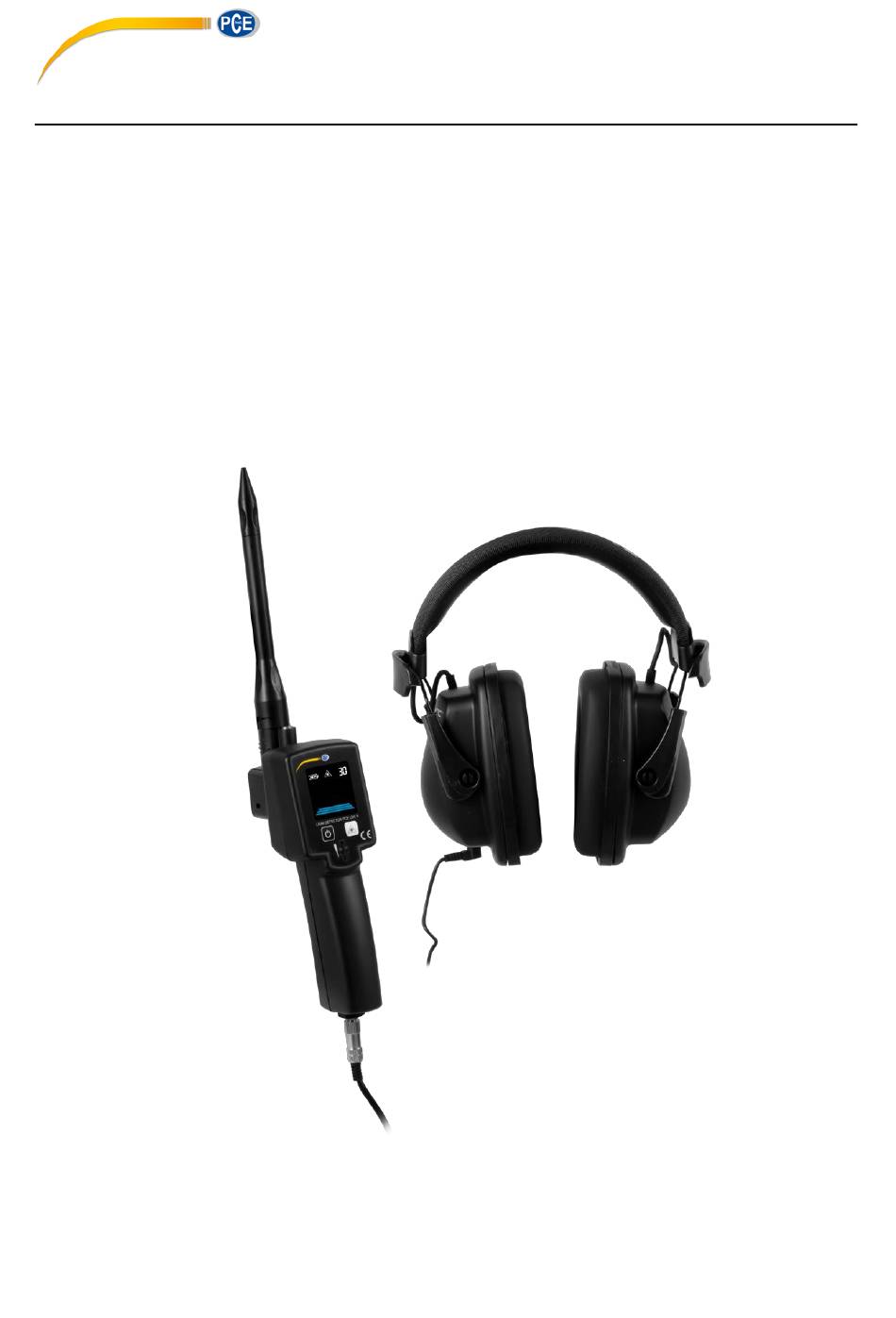

- Page 1 English User Manual PCE-LDC 8 Leak detector...
- Page 2 Dear Customer, thank you for choosing our product. The operating instructions must be read in full and carefully observed before starting up the device. The manufacturer cannot be held liable for any damage which occurs as a result of non-observance or non- compliance with this manual.
-
Page 3: Table Of Contents
Table of contents 1. Safety instructions ................4 2. Application ..................6 3. Features ..................... 6 4. Technical Data ..................7 4.1 General ..................7 4.2 Electrical Data ................7 4.3 Performance chart ................7 5. Dimensional drawing................8 6. Operating ................... 9 6.1 Operating Principle ................ -
Page 4: Safety Instructions
1. Safety instructions Please check if this instruction manual accords to the product type. Please observe all notes and instructions indicated in this manual. It contains essential information which have to be observed before and during installation, operation and maintenance. Therefore this instruction manual has to be read carefully by the technician as well as by the responsible user / qualified personnel. - Page 5 WARNING! Permitted operating parameters! Observe the permitted operating parameters, any operation exceeding this parameters can lead to malfunctions and may lead to damage on the instrument. • Do not exceed the permitted operating parameters. • Make sure the product is operated in its permitted limitations. •...
-
Page 6: Application
The integrated laser pointer helps to spot the leak from distance. The PCE-LDC 8 leak detector is not developed to be used in explosive areas. For the use in explosive areas please contact the manufacturer. -
Page 7: Technical Data
4. Technical Data 4.1 General Principle of measurement Ultrasonic leak detection Measuring medium Air, refrigerants and any gases Plugs Plug 1: 4 pole connector shared by headphone and battery charger Plug 2: 3.5 mm stereo phone jack for sensor or sensor cable connection. Operating frequency 40 kHz ±... -
Page 8: Dimensional Drawing
5. Dimensional drawing... -
Page 9: Operating
6. Operation Please make sure that all components listed below are included in your package. Description PCE-LDC 8 leak detector Sensor unit noise isolated headphones focus tube incl. focus tip Cable from instrument to sound probe Battery charger Transport case... -
Page 10: Operating Procedure
6.2 Operating Procedure The following steps explain the procedure of an appropriate use. 1. Press the Power button. 2. The Display of the PCE-LDC 8 look like the picture on the left side. • The laser pointer is off. • the Display will show you: ◦... -
Page 11: Electrical Connection
6.3 Electrical connection Either the headphone or the charger can be connected to PCE-LDC 8 at a time. Remark If the instrument has not been used for more than 2 months, the battery might be over discharged. Connect the battery charger and wait about 2-3 minutes until the display can show you the actual battery status.
