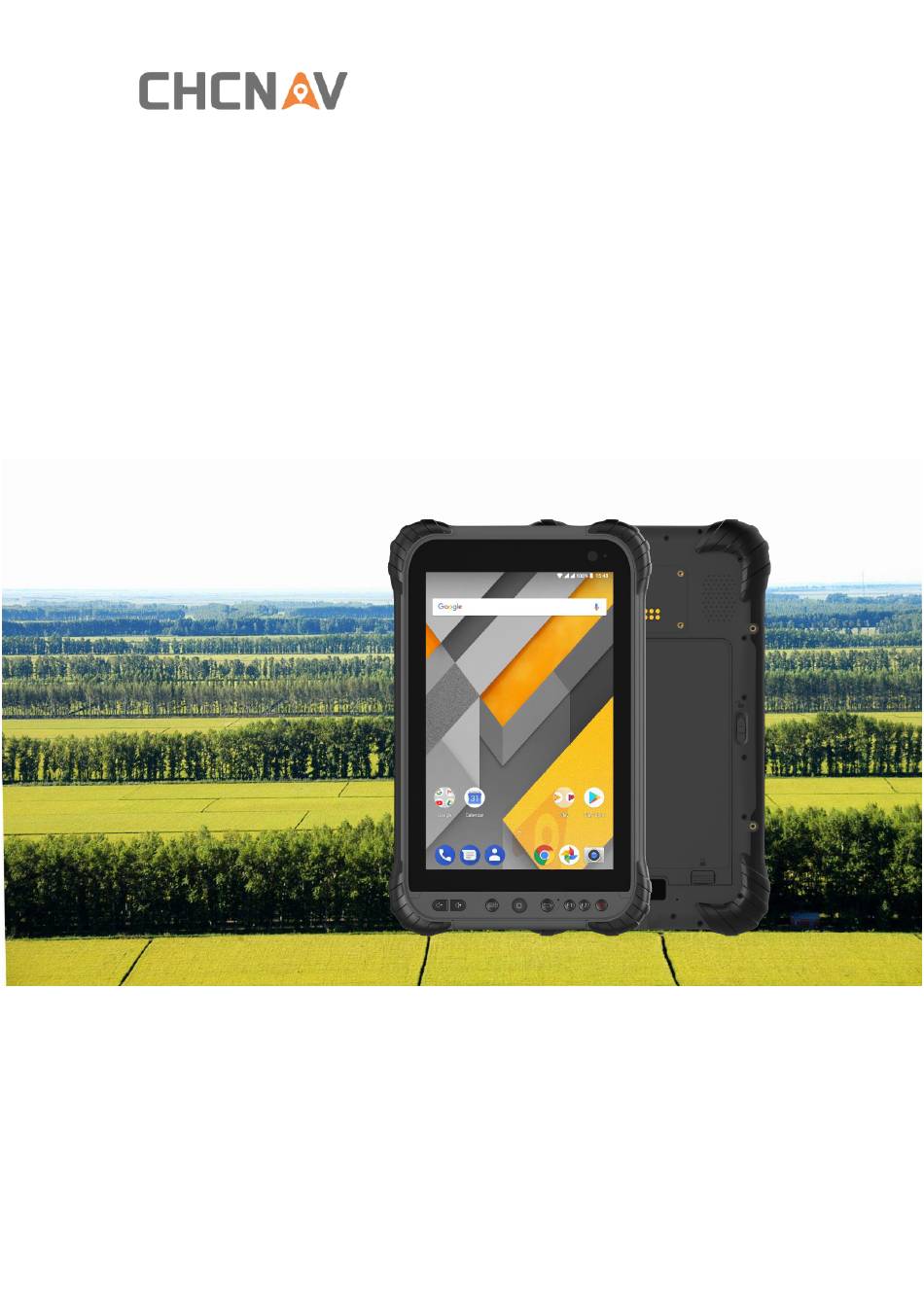

- Page 1 CHCNAV LT700 TABLET User Guide Make your work more efficient...
-
Page 2: Table Of Contents
Turn The Test Switch On ................. 28 Enter Test Settings Interface ..............28 Turn The Test Switch On ................30 Update The Android Operating System............31 Preparation ....................31 CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... - Page 3 Table of Content Updating ....................31 Getting Started With GNSSTool ..............34 Connection ....................34 CORS Login ....................36 Sky Plot ..................... 36 Debugging Data ..................37 CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |...
-
Page 4: Introduction
Please e-mail your comments to support@chcnav.com. 1.3 Safety Information This manual describes CHCNAV LT700 GNSS Data Collecting Terminal. Before using the LT700, please make sure that you have read and understood this Getting Started Guide, as well as the safety requirements. 1.4 Warning and Cautions This device complies with Part 15 of the FCC Rules. -
Page 5: Use And Care
CAUTION - A Caution alerts you to a possible risk of serious injury to your person and/or damage to the equipment. 1.5 Use and Care The LT700 is designed to withstand the rough environment that typically occurs in the field. However, the LT700 is high-precision electronic equipment and should be treated with reasonable care. -
Page 6: Overview

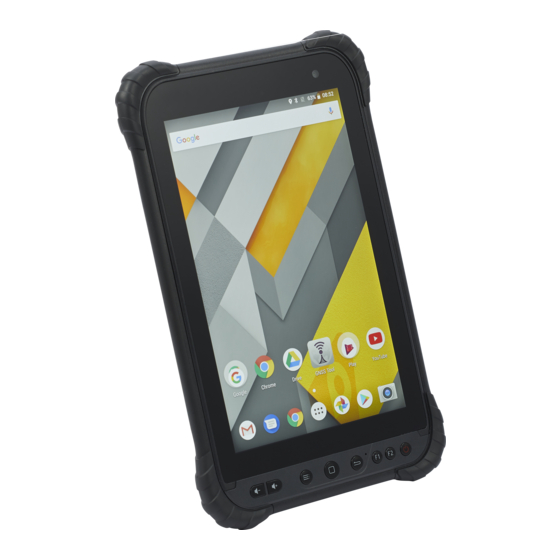

LT700 is the high-end GNSS tablet which supports Android 8.1 platform. Meanwhile, its dust and water proof level is IP67 and it can survive 1.2 m fall onto concrete. With 8000 mAh Li-ion battery, it can continuously work more than 12 h. LT700 can track GPS+GLONASS or GPS+BDS as user wanted. -
Page 7: Specifications
Dustproof and waterproof: IP67 ▪ Shock: Survives a 1.2 m drop onto concrete ▪ Humidity: 5% - 95% RH (without condensation) ▪ Dimension: 235 mm*146 mm* 13 mm (L*W*H) CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... - Page 8 Storage temperature: -30 °C to +70 °C Sensors ▪ NFC: Support ▪ G-sensor: Support ▪ Light sensor: Support ▪ Distance sensor: Support ▪ E-compass: Support ▪ Gyroscope: Support CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |...
-
Page 9: Front View
Power Button Power on: Press the button for 1-2 seconds, the Power Indicator will turn on and the boot screen will appear, and then the LT700 will enter the operating system after 30 seconds. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE... - Page 10 F1/F2 Function Button This key is a shortcut key to the preset function or menu. Type C This interface is used for battery charging and data transmission between LT700 and PC by using a USB cable. Volume button These two buttons are used for increase / decrease the volume.
-
Page 11: Back View
Overview 2.4 Back View 2.5 Bottom USB Type-C Charging/Data Interface CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... -
Page 12: Installation
Overview 2.6 Installation Please insert the SIM card and the MicroSD card in the direction of the diagram. SIM Card Slot SIM Card Slot Micro-SD Card CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... -
Page 13: Basic Operation
Refer to 2.6 Installation find the SIM card and TF card slot, and then insert the cards into slots correctly. Before powering on LT700, please make sure the battery has plenty of power. Then long press the power button to turn on LT700 and enter its home screen. - Page 14 After powering on LT700, click Settings/SIM card to turn on the SIM cards. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04...
-
Page 15: Language & Input
[Add a lauguage] to find the target lauguage. 3.3 Set Date & Time Click [Settings] – [Date & time] and enter [Date & time] interface. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... -
Page 16: Display
You can also customize your time zone and choose whether to use the 24-hour format in this interface. 3.4 Display Click [Settings] – [Display] to enter Display interface. Click Advanced to view all the options. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... - Page 17 Basic Operation Brightness adjusting: Click Brightness level to adjust it according to your preference. Sleep: Click to optimize the inactivity time LT700 needs to close the screen. Font size: Slide the green dot to change the font size. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE...
-
Page 18: Wi-Fi
Basic Operation 3.5 Wi-Fi Click [Settings] – [Wi-Fi] to switch on the button. Select Wi-Fi and type in its password to connect. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... -
Page 19: Bluetooth
Click [Settings] – [Bluetooth] to turn on the Bluetooth. Find nearby devices and pair with it. 3.7 USB Connection For connection or data transmission between LT700 and PC, please use the USB data cable as shown below. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE... -
Page 20: Use Camera
USB debugging dialogue pops up, and then click OK. You can also use third party software to manage the documents and data stored in LT700 and install software like GNSS Tool into it. 3.8 Use Camera Make sure that the battery is charged and installed in the receiver. -
Page 21: Log In 4G
Networks] –[Advance] – [Preferred network type] and select corresponding network type of your SIM card. Then turn on Mobile data and click Data usage to see data usage. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... -
Page 22: Location
Click [Settings] – [Security & Location] – [Location] – [On] to switch on location service. 3.10.2 Select The Constellation Combination On the [Location] panel, the choose [Location Mode], and the user can choose the constellation/constellations. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... -
Page 23: Check The Imei Number Of The Device
BDS: The device will use BDS signal only; GLONASS: The device will use GLONASS signal only; 3.11 Check The IMEI Number of The Device Turn the LT700 on and enter the dialing panel, tap ‘*#06#’, the IMEI numbers show up automatically. 3.12 Edit F1/F2 Function Key The F1/F2 Function Key can be edited to launch the APPs in the device. - Page 24 Basic Operation Check the APP for corresponding function key in [F1 Settings] / [F2 Settings]. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |...
-
Page 25: Install Third-Party Software
2. Click [Install] and a security confirmation message pops up, click [Setting] and enter next step; 3. Click [Install] to continue the process; 4. Wait for the installing, and the ‘APP installed’ shows up when the installation finished. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... -
Page 26: Access The Cloud
Tap [topoXpress] – [Settings] – [Cloud], and then, enter the username and password. Tap the [Login], if the user and password are correct, the message box with ‘Successful cloud login!’ pups out. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... -
Page 27: Install The Topoxpress
2. Click [Install] to start downloading the .apk file from the play store; 3. Wait for the installing, and the ‘APP installed’ shows up when the installation finished. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... -
Page 28: Turn The Test Switch On
[About Tablet], then tap [build number] 5 times until the system pups up the ‘you are now a developer’. One step back, on the [System] screen, the [Developer Options] option shows up. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... - Page 29 Turn The Test Switch On Tap the [Engineering mode], and then, tap ‘#*20170206#’. After the tapping, the test setting panel shows automatically. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |...
-
Page 30: Turn The Test Switch On
Tap the [Test Switch] on the top of the screen, and check [On] on the new interface shows up. Choose [Yes], and the computer can detect the device after the reboot finished. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... -
Page 31: Update The Android Operating System
6 Update The Android Operating System 6.1 Preparation We need to prepare the updating tools (software and data cable), update OS and LT700. For updating tools (software), please contact our technical support for the download link. The contact methods are shown at the end of this user guide. - Page 32 [Erase All Before Download], [Auto Backup Restore QCN] and [Enable Multi-SIM QCN]; 7. Connect LT700 to the computer via data cable, when the [No Port Available] position changes to 9091/9008 Port, click download and wait until ‘Download Success’ pops up. (if the computer cannot detect the LT700, please switch the device into test mode, see chapter 5);...
- Page 33 Update The Android Operating System Enter [Settings] – [System] – [Reset options] – [Erase all data (factory reset)] CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |...
-
Page 34: Getting Started With Gnsstool
1. Open GNSSTool and click [Connect] menu and select [Device Type] and [Connection Type] – [Device ID] in connect interface. 2. Device Type: There are 4 types of Device Type: Smart RTK, GNSS RTK, Local and Peripheral. Here for LT700, we choose Local. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04... - Page 35 For Local and Peripheral, we select the specific device type that we use. Here we select LT700 for Connection Type. 4. Click [Connect] to connect with the receiver successfully and go back to the previous interface. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |...
-
Page 36: Cors Login
LOGIN. 7.3 Sky Plot Click Sky Plot and see how many satellites (including GPS, GLONASS, BDS, GALILEO and SBAS) the device is currently tracking. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... -
Page 37: Debugging Data
Click Debugging Data to enter data debugging interface. Click HEX to change the data into txt format, you can also pause, save and clear the data using the button in the upper side. CHCNAV LT700 GIS RUGGED TABLET USER GUIDE | 2019-04 P a g e |... - Page 38 CHC Navigation Building D, NO. 599 Gaojing Road, Qingpu District, 201702 Shanghai, China Tel: +86 21 542 60 273 | Fax: +86 21 649 50 963 Email: sales@chcnav.com | support@chcnav.com Skype: chcnav_support Website: www.chcnav.com Make your work more efficient...
