Summary of Contents for The Flying Culinary Circus FCCBBQ ULTIMATE 4.1

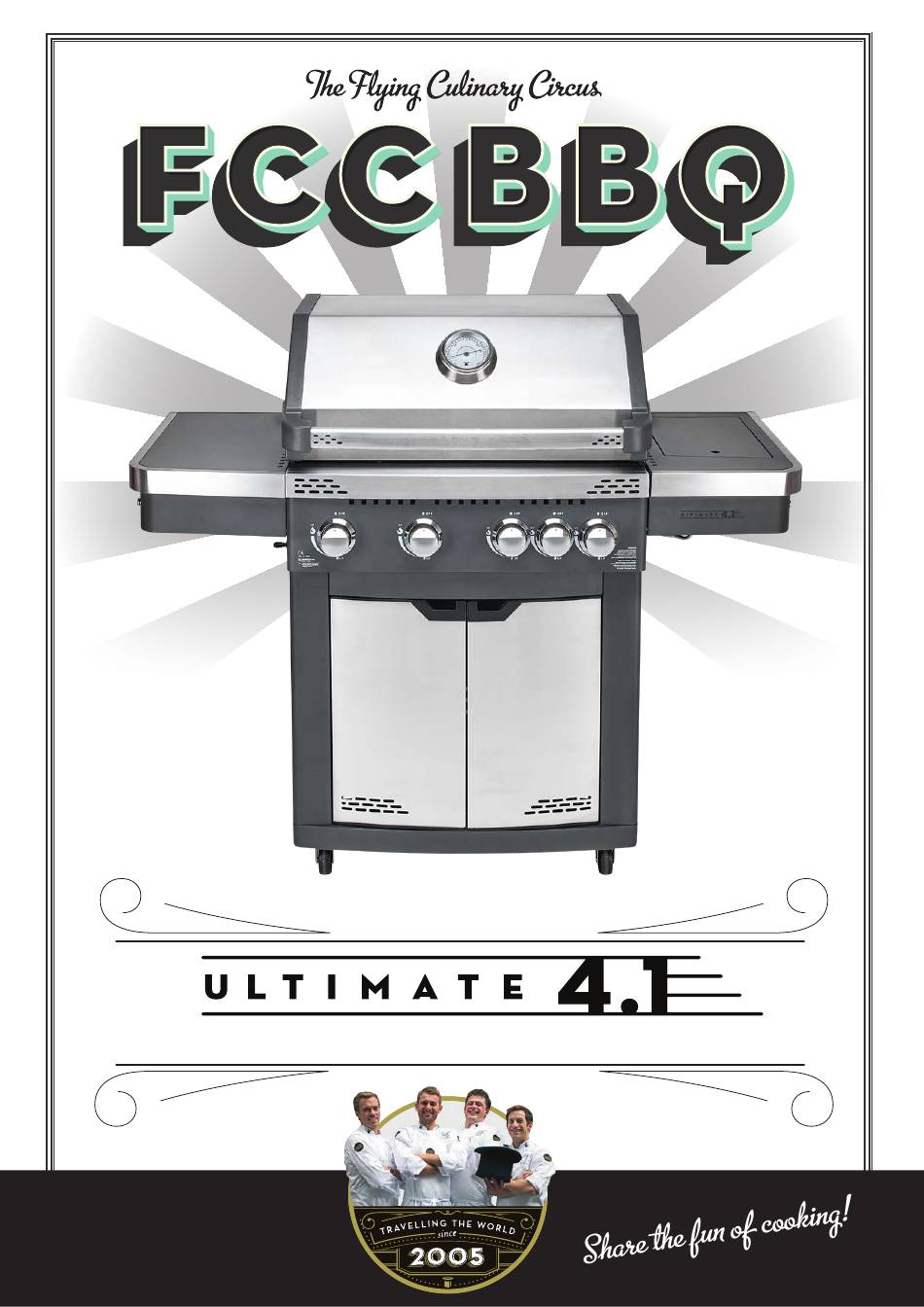

- Page 1 INSTRUCTION MANUAL AND MAINTENANCE FCC-GG-201980-41 OUTDOOR USE ONLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE.
-
Page 2: Table Of Contents
Contents Warnings ..........................3 Technical Data ........................4 Gas category ...........................4 Exploded Drawing .......................5 Parts list .............................6 Hardware ..........................7 Assembly instructions ......................8 Gas leak test .........................16 Last check ..........................17 Lighting instructions ......................18 Warnings ..........................19 Maintenance ........................20 Grease fire ..........................21 Singapore Chili Crab .......................22 Troubleshooting ........................23 Consumer Contact ......................24... -
Page 3: Warnings
Read carefully WARNINGS • FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED CAN IMPLY A RISK OF SERIOUS INJURY TO PERSONNEL AND FIXED INSTALLATIONS. • THE BBQ IS INTENDED FOR OUTDOOR USE ONLY IN WELL- VENTILATED AREAS. NEVER BBQ IN ENCLOSED SPACES OR UNDER A ROOF, DUE TO THE DANGER OF THE LACK OF OXYGEN. -
Page 4: Technical Data
Technical Data Tekniske data W: 142 cm Total Heat input: 16,3 kW Gas consumption: 1164 gram/time Gasbottle (not included): Use standard bottle approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic Region. -
Page 5: Exploded Drawing
Exploded Drawing... -
Page 6: Parts List
Parts List CODE DESCRIPTION LID HANDLE THERMOMETER THERMOMETER BEZEL WARMING RACK STAINLESS STEEL GRILL CAST IRON B CAST IRON C FLAME TAMER SIDE TABLE ASSY LID SHOCK PAD OIL TRAY ASSY SIDE BURNER RACK SIDE BURNER ASSY SIDE BURNER ELECTRODE SIDE BURNER TABLE ASSY KNOB BEZEL KNOB... -
Page 7: Hardware
Hardware HARDWARE CODE DESCRIPTION CODE DESCRIPTION M6x16 screw M6 washer M6 spring washer M5x12 screw M6x12 screw M4x10 screw WARNING! EXERCISE CAUTION WHEN USING ELECTRIC TOOLS – THEIR STRENGTH CAN DAMAGE THE SCREWS. Please follow these instructions step by step. A Philips head screwdriver and adjustable/allen wrench (not provided) is necessary when assembling the BBQ. -
Page 8: Assembly Instructions
Assembly 1. Turn bottom panel of cabinet (26) upside down, and fix castors with brake(30) and castors without brake(31) with A,B,D. 2. Fix left side panel (23) and right side panel (25) with screw C as below. Fix door block component (35) with screw F as illustration above. - Page 9 Assembly 3. Fix rear panel (24) with screw E as illustration above. Fix left cabinet shelf top plate (32) and support plate (33) with screw C and then fix them with screw C on left side panel (23) and bottom panel (26) as illustration above. 4.
- Page 10 Assembly 5. Follow in the illustration above to insert lower rotating axis of left door assy (28) into hole on bottom panel of cabinet(26), then follow in the illustration to press spring pin and insert into hole of upper beam(27). Same assembling procedure for right door assy (29).
- Page 11 Assembly 4PCS NOTE TWO PERSONS IS RECOMMENDED WHEN LIFTING THE STOVE BODY 7. Fix stove body assy (20) with screw (C) onto cabinet. 8. Screw 4pcs of screw A halfway into right side of stove body assy(20), hang side burner table assy (15) onto screw A and tighten screw A.
- Page 12 Assembly 9. Screw 4pcs of screw A halfway into left side of stove body assy(20), hang side table assy (9) onto screw A and tighten screw A 10. Follow illustration and put flame tamer (8) -> stainless steel grill (5) -> cast iron grate B (6) ->...
- Page 13 Assembly 11. Push oil tray (11) onto the gap on the rear side of stove body assy all the way in. 12. Follow in the illustration to loosen the nut on side burner injector assy and move it to fixing sheet, then follow in the illustration to insert injector through fixing sheet hole and follow in the illustration to tighten the nut.
- Page 14 Assembly 13. Follow illustration to insert the side burner assy(13) through the side burner table assy(15), then make side burner assy(13) to be inserted with side burner injector assy and fix it with screws F as shown; Follow illustration to insert side burner electrode into ignition wire as shown.
- Page 15 Assembly 15. Fix the right cabinet shelf assy to the bottom panel using screw sC. 16. Assembly finished...
-
Page 16: Gas Leak Test
Gas Leak Test WARNING ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BBQ. LEAK TEST ANNUALLY, AND WHENEVER THE GAS BOTTLE IS REMOVED OR REPLACED. ALWAYS PERFORM A LEAK TEST IN A WELL-VENTILATED AREA. Make a mixed solution ( water and liquid detergent / soap). WARNING Ensure that there are no naked flames, heat sources and cigarettes in the vicinity when performing a leak test. -
Page 17: Last Check
Last Check LOCATION Ensure that the BBQ is placed at least 120cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. Do not place the BBQ under a roof or overhang Ensure the BBQ is placed where there is plenty of ventilation. Do not BBQ below normal ground level. -
Page 18: Lighting Instructions
Lighting Instructions LIGHTING INSTRUCTIONS MANUAL IGNITION 1. Turn all knobs to “OFF” (O), then You can light the burner manually if open the tank valve. the electronic ignition fails. Wearing a protective glove, hold a long kitchen 2. Open lid during lighting match or extended gas lighter alongside 3. -
Page 19: Warnings
Read Carefully WARNINGS • ALWAYS KEEP AN EYE ON THE BBQ WHEN IN USE. NEVER ALLOW CHILDREN OR OTHERS WHO REQUIRE SUPERVISION NEAR THE BBQ WHEN IN USE. • THIS BBQ IS ONLY INTENDED FOR OUTDOOR USE AND MUST NOT BE USED UNDER A ROOF. -
Page 20: Maintenance
Maintenance MAINTENANCE INSECTS AND VERMIN After long-term storage, insects and other vermin can Check that the burners are burning correctly regu- be found in the BBQ. If you experience problems with larly. lighting or irregular flames, it can be due to unwanted Remove the BBQ grate and flame guards. -
Page 21: Grease Fire
Grease Fire Lack of maintenance may result in a rease fire because old fat and grease takes fire when it reaches high temperatures. PREVENT GREASE FIRE • Clean the BBQ regularly to avoid grease fires. Always, remove residues of grease and food after the BBQ has been used. IN CASE OF GREASE FIRE In case of grease fire, close the gas supply and disconnect the control- ler. -
Page 22: Singapore Chili Crab
Recipe Try to make one of our favorites SINGAPORE CHILI CRAB Start with the sauce. Sauté shallots, ginger, chili and King crab loins split in half garlic with some cooking oil. Add chopped and canned Chinese buns tomatoes along with the sweet chili sauce. Let it simmer Fresh coriander for 5 minutes. -
Page 23: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Empty gas bottle Replace gas bottle Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose BURNER WILL NOT LIGHT Electrode is broken or dirty Clean the electrode Place the BBQ in a less Windy conditions... -
Page 24: Consumer Contact
Consumer Contact This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help.
