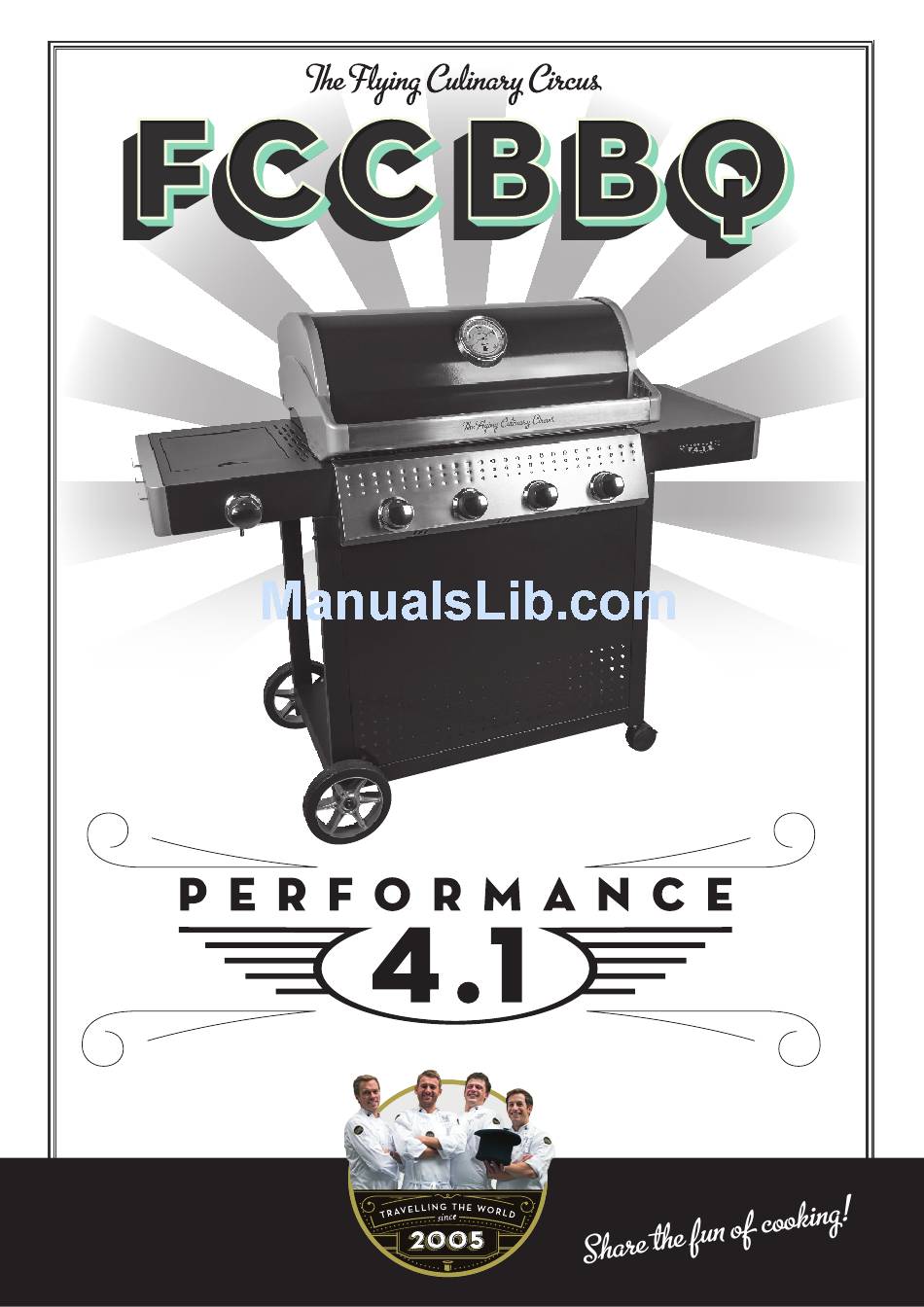

- Page 1 INSTRUCTION MANUAL & MAINTENANCE FCC-G-18220-41 / GD4842 OUTDOOR USE ONLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE.
-
Page 2: Table Of Contents
Contents Warnings......................3 Technical data Performance 4.1............4 Gas category ....................4 Exploded drawing ..................5 Parts list ......................6 Assembly instructions ................7 Gas leak test ....................14 Regulator and hose ...................15 Last Check ....................16 Lighting instructions................. 17 Warnings ......................18 Maintenance .....................19 Grease fire ....................20 Singapore Chili Crab................21 Troubleshooting ..................23... -
Page 3: Warnings
Read carefully WARNINGS • FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED CAN IMPLY A RISK OF SERIOUS INJURY TO PERSONNEL AND FIXED INSTALLATIONS. • THE BBQ IS INTENDED FOR OUTDOOR USE ONLY IN WELL- VENTILATED AREAS. NEVER BBQ IN ENCLOSED SPACES OR UNDER A ROOF, DUE TO THE DANGER OF THE LACK OF OXYGEN. -
Page 4: Technical Data Performance 4.1
GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA Technical information H: 120 cm W: 146 cm Total Heat input: 17.2 kW (main burner 14 kW + side burner 3.2 kW. Gas consumption: 1252 gram/hour (main burner: 1019 g/h + side burner: 233 g/h) FOR OUTDOOR Gasbottle (not included): Use standard bottle approved for use in the Nordic Region. -
Page 5: Exploded Drawing
Explosion view: Exploded drawing — 2 —... -
Page 6: Parts List
Parts List CODE DESCRIPTION WARMING RACK COOKING GRILL 1 COOKING GRILL 2 FLAME TAMER BODY ASSEMBLY RIGHT SIDE TABLE DECOR SHEET RIGHT SIDE TABLE GREASE CUP OIL TRAY, SUPPORT RIGHT SIDE RIGHT BACK FOOT RIGHT FRONT FOOT BOTTOM PANEL LOCKABLE CASTER WHEEL AXLE WHEEL FRONT PANEL... -
Page 7: Assembly Instructions
GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA Assembly Assemble the legs and bottom panel Assemble the wheels and castors — 4 —... - Page 8 GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA Assembly Install the front panel Install the drip tray brackets — 5 —...
- Page 9 GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA Assembly Install the firebox Install the tooling hook panels to the side burner table and side table — 6 —...
- Page 10 GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA Assembly Install the right side table assy Install the side burner assy — 7 —...
- Page 11 GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA Assembly Assemble the valve and knob of side burner Assemble the side burner — 8 —...
- Page 12 GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA Assembly Place the grills /warming rack/ pot support Insert the drip tray and grease cup place the matchstick holder assy — 9 —...
- Page 13 GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA Assembly Finish the BBQ's assembly ASSEMBLY IS NOW COMPLETE. ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BBQ. LEAK TEST ANNUALLY, AND WHENEVER THE GAS BOTTLE IS REMOVED OR REPLACED. —...
-
Page 14: Gas Leak Test
Gas Leak Testing WARNING ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BBQ. LEAK TEST ANNUALLY, AND WHENEVER THE GAS BOTTLE IS REMOVED OR REPLACED. ALWAYS PERFORM A LEAK TEST IN A WELL-VENTILATED AREA. MAKE A MIXED SOLUTION ( WATER AND LIQUID DETERGENT / SOAP). -
Page 15: Regulator And Hose
Regulator and gas hose HOSE Connect the gas hose to the gas rail inlet on the left hand side of the barbecue. Do not overtighten. Do not use any sealing tape, paste or liquid on the connection. Connect the regulator to the gas bottle according to your regulator and bottle dealer’s instructions. -
Page 16: Last Check
Final Check LOCATION Ensure that the BBQ is placed at least 150cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. Do not place the BBQ under a roof or overhang Ensure the BBQ is placed where there is plenty of ventilation. Do not BBQ below normal ground level. -
Page 17: Lighting Instructions
Lighting Instruction MANUAL IGNITION IGNITION You can light the burner 1. Open the lid (lid must always be open manually if the ignition fails. when igniting). Wearing a protective glove. 2. Check that all controls are in the "off" 1. Read instructions before position. -
Page 18: Warnings
Read Carefully WARNING • ALWAYS KEEP AN EYE ON THE BBQ WHEN IN USE. NEVER ALLOW CHILDREN OR OTHERS WHO REQUIRE SUPERVISION NEAR THE BBQ WHEN IN USE. • THIS BBQ IS ONLY INTENDED FOR OUTDOOR USE AND MUST NOT BE USED UNDER A ROOF. -
Page 19: Maintenance
Maintenance MAINTENANCE INSECTS AND VERMIN After long-term storage, insects and other vermin can Check that the burners are burning be found in the BBQ. If you experience problems with correctly regularly. lighting or irregular flames, it can be due to unwanted Remove the BBQ grate and flame guards. -
Page 20: Grease Fire
Grease fire Lack of maintenance may result in a grease fire because old fat and grease takes fire when it reaches high temperatures. PREVENT GREASE FIRE • Clean the BBQ regularly to avoid grease fires. Always, remove residues of grease and food after the BBQ has been used. IN CASE OF GREASE FIRE In case of grease fire, close the gas supply and disconnect the control- ler. -
Page 21: Singapore Chili Crab
Recipe CHILI CRAB SINGAPORE CHILI CRAB Start with the sauce. Sauté shallots, ginger, chili and King crab loins split in half garlic with some cooking oil. Add chopped and canned Chinese buns tomatoes along with the sweet chili sauce. Let it simmer Fresh coriander for 5 minutes. - Page 22 Los Angeles. The idea of “The Flying Culinary Circus” was created. Fast forward – The chefs have now travelled to more than 56 countries all over the world. Royalties as well as celebrities have enjoyed the culinary concept the chefs offer tremendously.
-
Page 23: Troubleshooting
Trouble Shooting PROBLEM POSSIBLE CAUSE SOLUTION GAS BOTTLE IS EMPTY REPLACE GAS BOTTLE CHECK/REPLACE THE DAMAGED REGULATOR REGULATOR BURNER IS BLOCKED CLEAN THE BURNER CLEAN GAS VENTURY GAS SUPPLY IS BLOCKED OR HOSE ELECTRODE IS BROKEN OR CLEAN THE ELECTRODE BURNER WILL NOT DIRTY LIGHT... -
Page 24: Consumer Contact
Consumer contact This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help.
