T&S B-0182 Installation And Maintenance Instructions Manual

Kettle kaddy
Table of Contents
  • Exploded View
  • Part Number Guide
  • General Instructions
  • Instructions Générales
  • Allgemeine Anleitungen
  • Maintenance Instructions

Advertisement

Available languages

Available languages

Quick Links

Limited One Year Warranty
T&S warrants to the original purchaser (other than
for purposes of resale) that such product is free from
defects in material and workmanship for a period of
one (1) year from the date of purchase. During this
one-year warranty period, if the product is found to
be defective, T&S shall, at its options, repair and/
or replace it. To obtain warranty service, products
must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other transpor-
tation charges of the product to T&S and the return
of repaired or replaced product to the purchaser are
the responsibility of the purchaser. Repair and/or
replacement shall be made within a reasonable time
after receipt by T&S of the returned product. This
warranty does not cover Items which have received
secondary finishing or have been altered or modi-
fied after purchase, or for defects caused by physi-
cal abuse to or misuse of the product, or shipment
of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might arise,
is hereby excluded and disclaimed. Any implied
warranties of merchantability or fitness for a particu-
lar purpose are limited to one year in duration. Under
no circumstances shall T&S be liable for loss of
use or any special consequential costs, expenses
or damages.
Some states do not allow limitations on how long
and implied warranty lasts or the exclusion or limi-
tation of incidental or consequential damages, so
the above limitations or exclusions may not apply
to you. Specific rights under this warranty and other
rights vary from state to state.
P/N: 098-003156-45 Rev.3
Date: 980707
Drawn: CW
Checked: MAB 10-16-98
Approved: MW 10-15-98

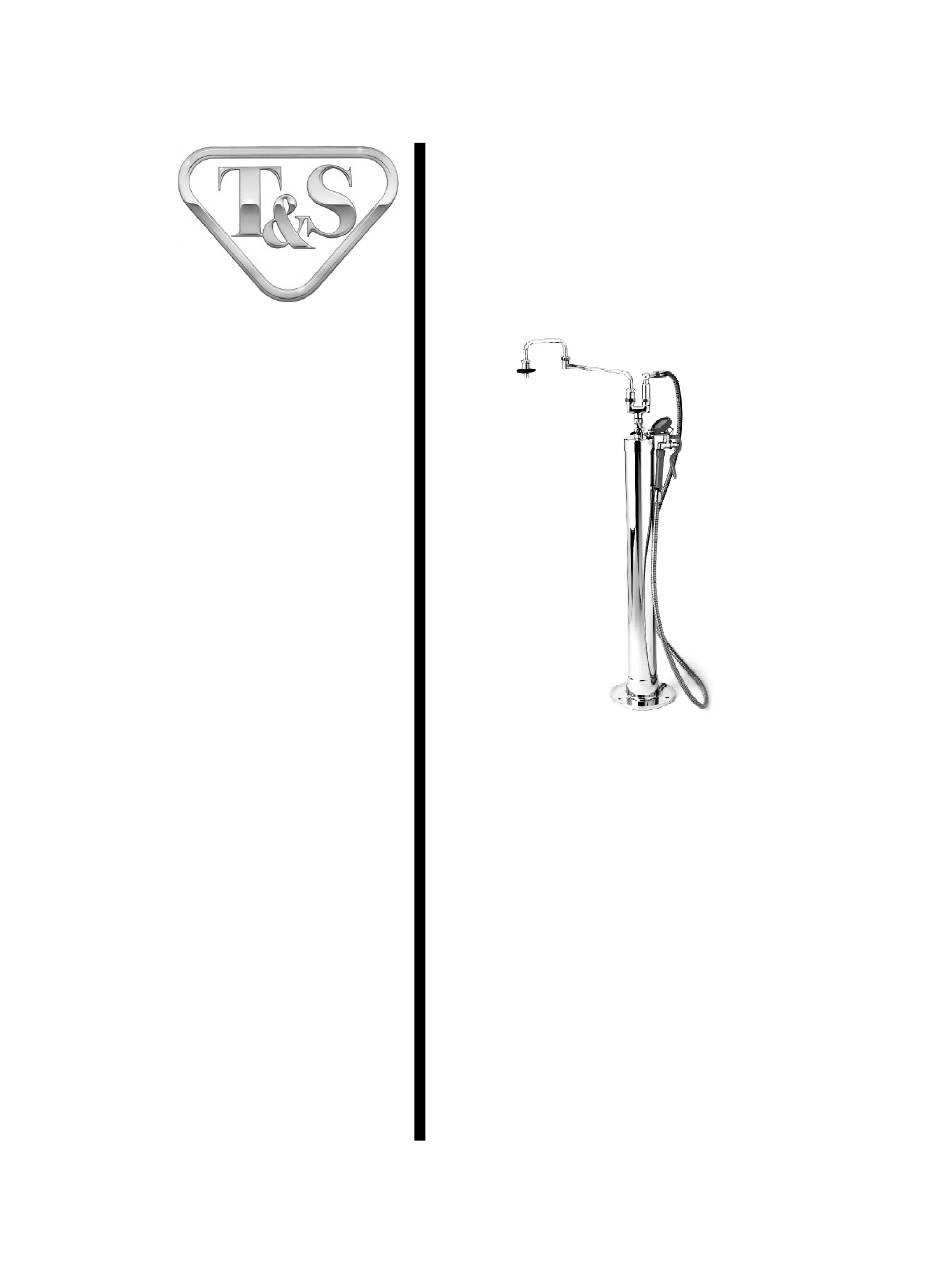

Installation and
Maintenance
Instructions
KETTLE KADDY
B-0182, B-0183, B-0186, B-0187,
B-0188, B-0192, B-0193
Deutsch:
Installations- und
Wartungsanleitungen
Español:
la Instalación y las
Instrucciones de
Mantenimiento
Français:
les Instructions
d'Installation et
d'Entretien

Advertisement

Table of Contents
loading

Summary of Contents for T&S B-0182

  • Page 1 KETTLE KADDY Any express warranty not provided herein, and any remedy for Breach of Contract which might arise, B-0182, B-0183, B-0186, B-0187, is hereby excluded and disclaimed. Any implied warranties of merchantability or fitness for a particu- lar purpose are limited to one year in duration. Under B-0188, B-0192, B-0193 no circumstances shall T&S be liable for loss of...
  • Page 2: Exploded View

    Exploded View Stanchion Unit Some items are listed for instructional purposes and may not be sold as separate parts.
  • Page 3: Part Number Guide

    Part Number Guide Stanchion Unit Asm, Stanchion 002847-40 Tube, Stanchion Shield, Expansion 001411-45 Bolt, Shield Valve, Check - 1/2 001332-45 Cap, B-0182, B-0183, B-0187, B-0188 001251-40 Cap, B-0186 001250-40 Cap, B-0192, B-0193 001252-40 Riser 001561-25 Locknut 001801-20 Grease Tube...
  • Page 4 Exploded View Kettle Kaddy B-0182, B-0183, B-0187, B-0188 Some items are listed for instructional purposes and may not be sold as separate parts.
  • Page 5 Part Number Guide Kettle Kaddy Assembly B-0182 Asm, Valve 002901-40 Flange, Cap 1/2 NPSL 001457-40 Mixing Yoke, "H" B-0182 000174-40 Mixing Yoke, "Y" B-0192 000175-40 Nipple, Close 1/2 NPT 002533-25 Swivel Body, 1/2" Pre-Rinse 000592-25 Swivel Body, 1/2" 000590-25 Asm, Nozzle - Double Jointed 18"...
  • Page 6 Exploded View Kettle Kaddy B-0192 and B-0193 Some items are listed for instructional purposes and may not be sold as separate parts.
  • Page 7 Flex Hose & Spray Assembly Asm, Flex S/S Hose 104" B-0104-C Asm, Spray Valve B-0192 002853-40 Asm, Flex S/S Hose 68" B-0068-C Asm, Spray Vlv & Hook Nzl B-0182 002851-40 #27 Washer 010476-45 Hook & Bolt Assembly Asm, Hook & Bolt 002852-40...
  • Page 8: General Instructions

    General Instructions 4. Screw no.9 into each no.5 with Installation: Stanchion Unit running threads up. 1. Shut off water supply and drain 5. Remove no.10 from top of no.9. lines. Prepare (2) two ½” IPS (Iron 6. Slide no.1 cover over assembly Pipe Size) nipples extending 6”[15cm] and put no.6 (or no.7 or no.8) in above the floor, roughed into con-...
  • Page 9 15. Replace no.3 on both no.1 Note: Use item numbers from couplings and tighten with a wrench. B-0182 exploded view. Other models are similar. 16. Attach no.7 to no.6. 11. Remove (no.3) yoke from no.1 17. Attach no.21 to no.5.
  • Page 10 Instruccione Generales 4. Atornille las partes No.9 a dentro de Instalación: Unidad De Puntal cada parte No.5 con las roscas largas hacia arriba. 1. Cierre la fuente de agua y desagüe las tuberias. Perfore (2) dos tubos de 1/2” IPS 5.
  • Page 11 No.1 y Nota: Use los numeros de los aprete con una llave. articulos del dibujo ampliado B-0182. Otros modelos son 16. Junte la parte No.7 a la parte No.6. semejantes. 17. Junte la arte No.21 a la parte No.5.
  • Page 12: Instructions Générales

    Instructions Générales L’Installation : L’élément 4. Visser Nº.9 dans chaque Nº.5 avec le filets courants vers le haut. Stanchion 5. Enlever Nº.10 du haut de Nº.9. 1. Fermer la réserve de l’eau et égoutter la tuyauterie. Préparer(2) deux 1/2” IPS (en 6.
  • Page 13 “Kettle Kaddy” avec une clef anglaise. Noter: Utiliser les numéros de 16. Attacher Nº.7 à Nº.6. B-0182 la vue agrandie. Les 17. Attacher Nº.21 à Nº.5. autres modèles être semblables. 18. Recommencer l’eau et vérifier s’il 11. Enlever le (Nº.3) joug des y a des fuites.
  • Page 14: Allgemeine Anleitungen

    Allgemeine Anleitungen Installation: Halterung 4. Nr. 9 in jede Nr. 5 mit dem Gewinde nach oben einschrauben. 1. Wasserzulauf absperren und 5. Nr. 10 von Nr. 9 oben entfernen. Leitungen entleeren. Zwei 1,25 cm große IPS-Nippel, die 15 cm über den 6.
  • Page 15 Anmerkung: Die Zahlen von der Schraubenschlüssel festziehen. Darstellung in auseinandergezogener 16. Nr. 7 mit Nr. 6 verbinden. Anordnung von B-0182 benutzen. Andere Modelle sind ähnlich. 17. Nr. 21 mit Nr. 5 verbinden. 11. Joch (Nr. 3) von den Ventilen Nr. 1 durch Lösen jeder Kupplungsmutter...
  • Page 16 RELATED T&S BRASS PRODUCT LINE B-0190 Combination Kettle Filler and Spray Stanchion B-0195 Kettle Filler with Hook Hose Stanchion T&S BRASS AND BRONZE WORKS, INC. A firm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’...
  • Page 17: Maintenance Instructions

    Installation and Maintenance Instructions Limited One Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workman- ship for a period of one (1) year from the date of purchase.
  • Page 18 Exploded View...
  • Page 19 Grey Grey Part Number Guide PARTS PARTS FOR ANY GREY T&S SPRAY VALVE Ring, Hold Down 000907-45 1,2,3 #27 Washer 010476-45 Body, Spray Valve 000065-40 Grey Handle 001120-45 Nut, Handle 003198-45 Screw, Handle 003199-45 PARTS FOR ANY GREY BONNET ASSEMBLY Bonnet Assembly 002856-40 1,2,3...
  • Page 20 Blue Blue Part Number Guide PARTS PARTS FOR ANY BLUE T&S SPRAY VALVE Ring, Hold Down 000907-45 4,5,6,7 #27 Washer 010476-45 Body, Spray Valve 000065-40 Blue Handle 011454-45 Nut, Handle 003198-45 Screw, Handle 003199-45 PARTS FOR ANY BLUE BONNET ASSEMBLY Bonnet Assembly 010594-40 4,5,6,7...
  • Page 21 General Instructions 8. For EB-0107/UK-0107 & B-0107 To replace worn parts: ONLY: To replace no.9, unscrew 1. Shut off water supply and drain no.11 and disassemble. Make sure lines. For ease of disassembly and the groove side of no.9 fi ts over reassembly, the handle grip can be no.8, and no.10 rest on ridge side.
  • Page 22 RELATED T&S BRASS PRODUCT LINE B-0108 JeTSpray Spray Valve B-0108-C JeTSpray Low Flow Spray Valve T&S BRASS AND BRONZE WORKS, INC. A fi rm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’...

This manual is also suitable for:

B-0183B-0186B-0187B-0188B-0192B-0193
