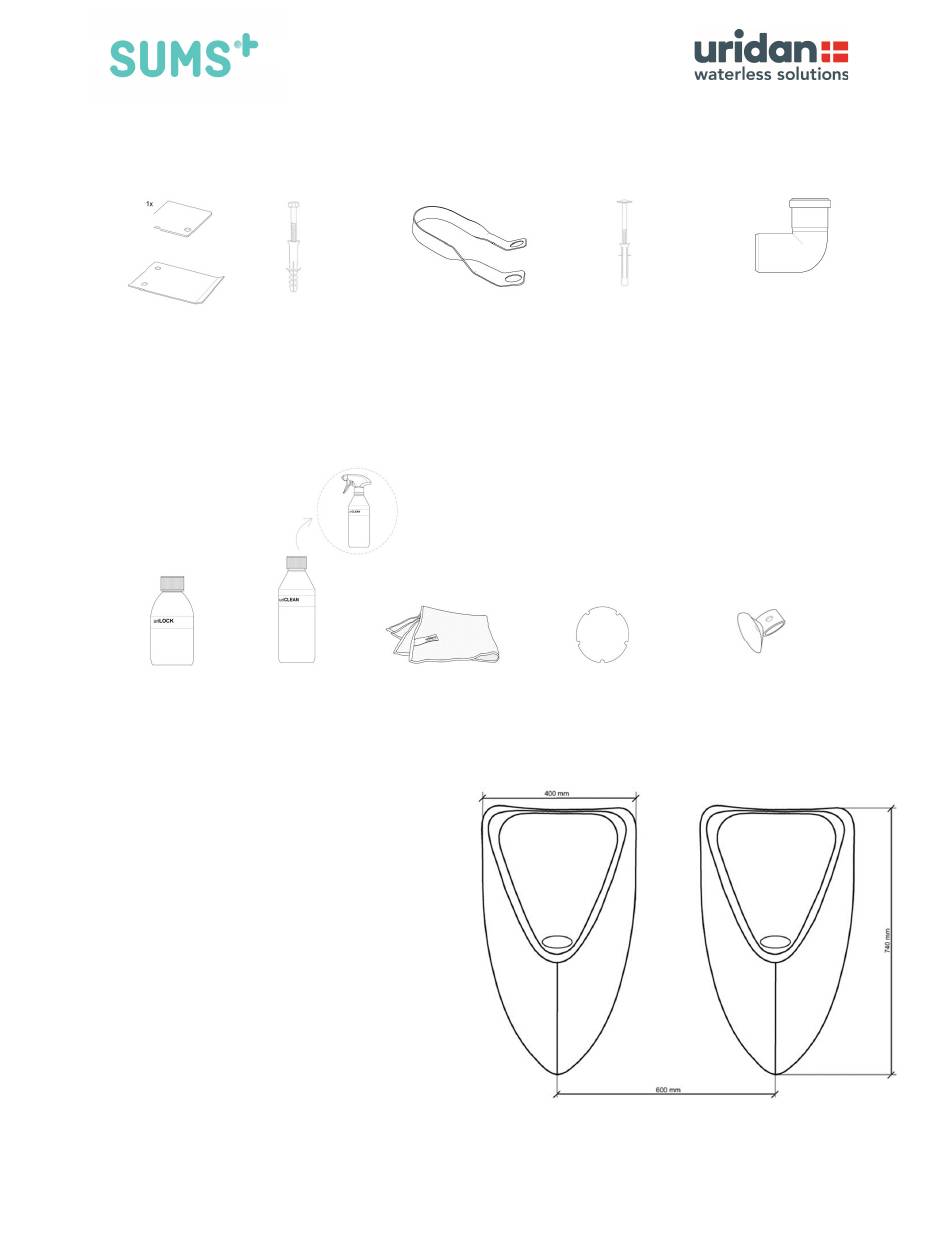

Installation Instructions
Parts List
|
4
x screws fitting No. 8
2
x fitting No. 8
Fitting Kit
|
1
x uriLOCK 0.3 L
1
x uriCLEAN 0.5 L
Note
|
Uridan urinals function without water. Installation is
very simple.
If you are retrofitting existing flushing urinals with
uridan waterless urinals, please ensure that the sewer
line is jetted and clean of uric scale before installation.
Please also remove any existing s-trap to avoid double
trapping the urinal.
Uridan urinals must be fitted to a 50mm waste pipe
and installation should be carried out by authorised
plumbers in accordance with AZ/NZA3500.2
Please Note:
The undiluted discharge from a waterless urinal
must not be transported through copper or copper
alloy pipework.
GHM-10 Installation Instructions – May 2020
1
x fitting No. 15
2
x screws fitting No. 15
1
x uriCLOTH
1
x Cover
1
x 87° bend
1
x suction device
