ADEMCO 5800RL Wireless Relay Module – Installation Instructions
INTRODUCTION
The ADEMCO 5800RL is a Wireless Relay Module that
enables use of remote sounders and/or remote arm/disarm
indicators using two relays activated by wireless signals from
a LYNX control. The 5800RL can also send tamper and
supervision signals to the LYNX if so programmed. The
5800RL is compatible with LYNX Plus controls having
software versions 9.0 or higher and LYNX Touch controls.
Refer to the LYNX control installation and setup guide for
software compatibility and zone programming information.
MODULE'S TWO
RELAYS ARE
ACTIVATED BY
SYSTEM
CONDITIONS
ARMED READY
OFF 1 2 3 STAY
ESCAPE RECORD VOLUME PLAY DELETE
4 5 6
AWAY AUX
ADD LIGHTS ON TEST BYPASS SELECT
7 8 9
LIGHTS OFF CODE CHIME
0
STATUS NO DELAY FUNCTION

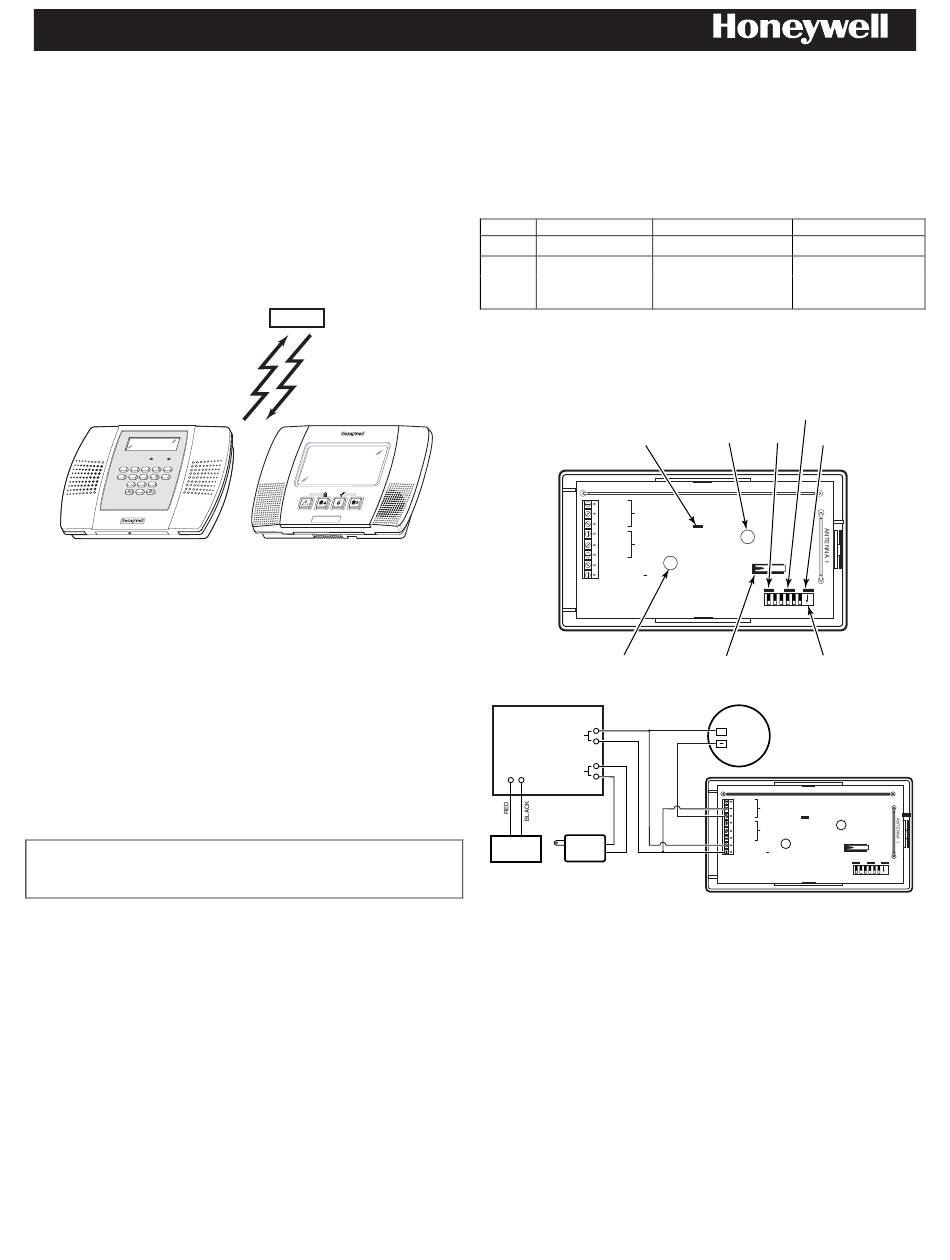

Figure 1. Lynx Interface Diagram
MOUNTING LOCATION GUIDELINES
Use the following guidelines when selecting a mounting
location for the 5800RL Relay Module (see Figure 2):
Mount the 5800RL in a high location for best wireless
•
reception.
Do not mount the 5800RL on or near metal objects. This
•
decreases range and/or blocks wireless transmissions.
Locate the 5800RL at least 10 feet from any remote
•
keypad to avoid interference from the microprocessors in
those units.
To avoid voltage loss that occurs on long power lines,
•
mount the external power supply unit in close proximity to
the 5800RL.
Mounting, Wiring, and Setup
IMPORTANT: Before permanently mounting the 5800RL,
perform the setup procedure described in the Setting Up
the 5800RL section.
1. Remove the 5800RL's cover from the base (using a small
flat head screwdriver, insert screwdriver's tip in slot at top
of the cover and twist).
2. Using the 5800RL base as a template, position in the
desired location and mark the two mounting holes. See
Figure 2 for mounting hole locations.
3. Attach the 5800RL base using the fasteners supplied.
Screws and plastic anchors are suitable for a typical
installation, but you may use any two fasteners that
secure the base firmly to the mounting surface.
NOTE: This product uses latching relays, which retain their
open/closed position even when power is disconnected. Due
to shocks or vibration during shipment and installation, the
out-of-box state of these relays may be either open or closed.
When power is first applied, the relay will be set to its correct
initial state. Please bear this in mind during installation; it is
strongly recommended that you wire this module and apply
power to it before energizing any external circuit controlled by
the latching relay.
RELAY MODULE
5800RL
TAMPER AND
SUPERVISION
SIGNALS SENT
TO CONTROL
5800RL-004-V1
4. Connect relay and power wiring to the 5800RL's terminals.
Refer to Figure 3 for a typical relay application.
The 5800RL can be powered from either an AC transformer
or DC power supply external power source connected to
terminals 7 and 8 (see Figure 3).
Power source ratings and connections are as follows:
Type Rating Connected to...
AC 9VAC, 15VA terminals 7 and 8
DC 12VDC, 100mA
terminals 7 and 8
or plugged into
power connector.
NOTE: Use of power sources with higher or lower voltages
may result in damage or failure to operate properly. Non-
ADEMCO power supplies may have connectors installed.
Remove these connectors prior to attempting to connect
power supply to 5800RL.
RF INTERFERENCE
LED (RED)
1 - NC
2 - NO RELAY A
3 - COM
4 - NC
5 - NO RELAY B
6 - COM
7 - AC OR DC (+) IN
8 - AC OR DC ( ) IN
MOUNTING
HOLE
Figure 2. 5800RL Diagram
ADEMCO AD12612
AUX PWR SUPPLY
+
(12 VDC) DC
_
OUT
AC
IN
_
+
1361
PWR SUPPLY
POWER SUPPLY
XFMR
BACKUP
16.5VAC
BATTERY 12VDC
Figure 3. Typical Sounder Wiring Installation
Setting Up the 5800RL
Refer to RELAY and LED Operation section and DIP Switch
(Figure 4) in order to set up the 5800RL as follows:
5. Set DIP switches 3-6 (Figure 4) to the appropriate House
ID (1-31). Make sure the House ID set by the DIP
switches matches that entered in the LYNX control.
6. If module supervision and/or tamper protection is desired,
program the 5800RL's tamper/supervisory loop (1) as a
zone and enroll its serial number.
Note the following when enrolling:
Zone Type = 5 (trouble by day/alarm by night)
Input Type = 3 (RF)
Loop Number = 1
7. Position the wiring in the exit slot and reinstall the
5800RL's cover on the base.
Test the 5800RL module with the rest of the system.
Source Example
Ademco 1332
AD12612
LED
(YELLOW)
MOUNTING LED LED
HOLE (GREEN) (RED)
ANTENNA 2
ON
OFF
1 2 3 4 5 6
TAMPER DIP
SWITCH SWITCH
+
SOUNDER
ANTENNA 2
1 - NC
2 - NO RELAY A
3 - COM
4 - NC
5 - NO RELAY B
6 - COM
7 - AC OR DC (+) IN
8 - AC OR DC ( ) IN
1 2 3 4 5 6
5800RL-005-V0
ON
OFF
