To reduce the risk of SERIOUS INJURY or DEATH:
• This device is for use ONLY on LiftMaster
Operators.
• For INDOOR USE ONLY.
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov

APPLICATION

The Commercial Protector System
Commercial Door Operators with a Normally Open (N.O.) sensing
edge input.
The CPS is for use with ancillary entrapment protection devices
only, and not used for primary monitored entrapment protection
devices.
THE COMMERCIAL PROTECTOR SYSTEM
IMPORTANT INFORMATION ABOUT THE PHOTOELECTRIC SENSORS
Be sure power to the operator is disconnected.
When properly connected and aligned, the photoelectric sensors will detect an obstruction in the path of its invisible light beam. If an
obstruction breaks the light beam while the door is closing, the door will stop and typically reverse to the full open position.
The photoelectric sensors must be installed inside the garage so that the sending and receiving sensors face each other across the door,
no more than 6" (15 cm) above the fl oor. Either can be installed on the left or right of the door as long as the sun never shines directly
into the receiving eye lens. This product is not suitable for outdoor use.
The brackets must be securely fastened to a solid surface such as the wall framing. If installing in masonry construction, add a piece of
wood at each location to avoid drilling extra holes in masonry if repositioning is necessary.
The invisible light beam path must be unobstructed. No part of the garage door (or door tracks, springs, hinges, rollers or other
hardware) may interrupt the beam while the door is closing. If it does, use a piece of wood to build out each sensor mounting location to
the minimum depth required for light beam clearance.

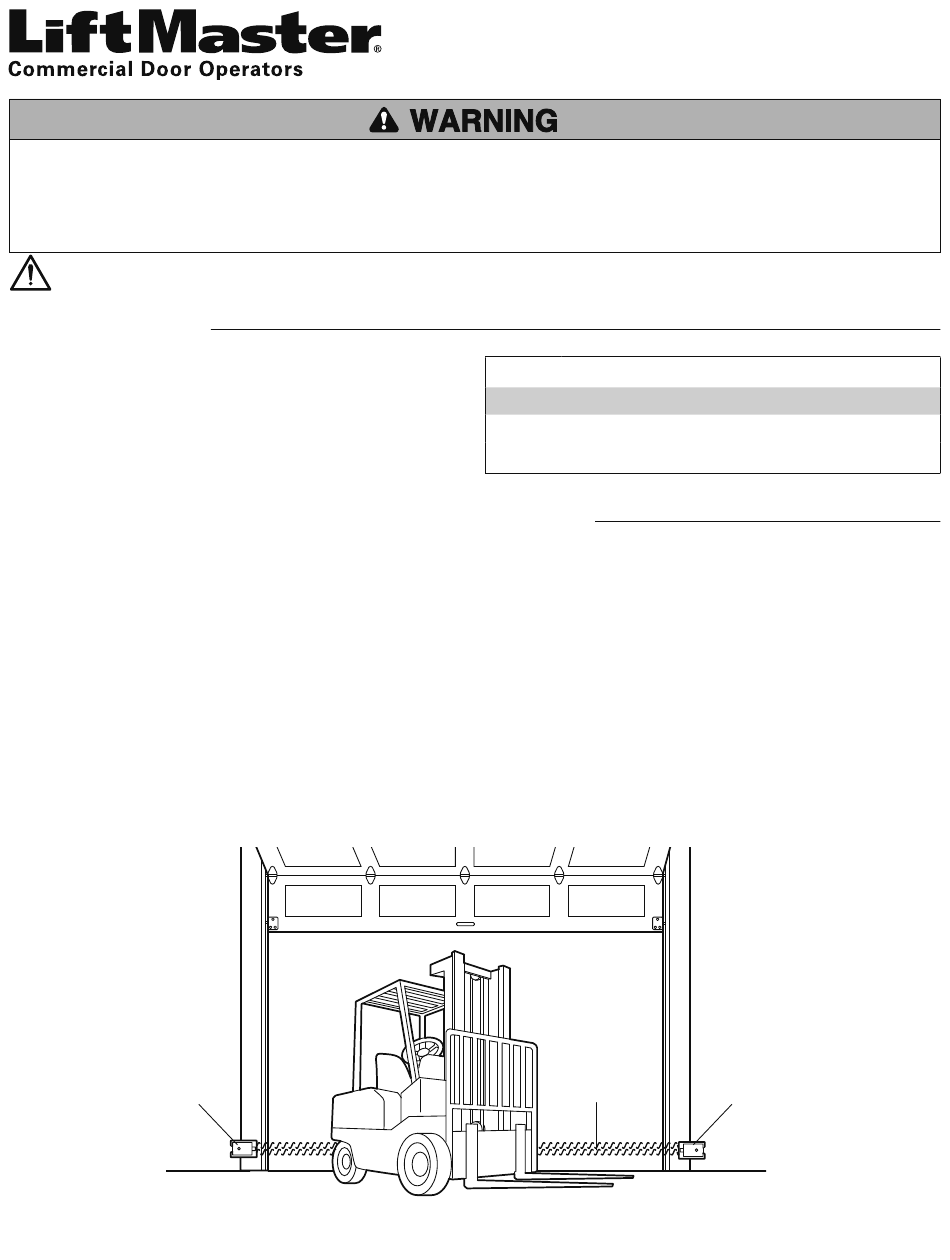

Left Side of Garage
Photoelectric Sensor
Facing the door from inside the garage (installation procedures are the same for all door types).
®
Commercial Door
®
(CPS) is suitable for LiftMaster
COMMERCIAL PROTECTOR SYSTEM
• Disconnect power BEFORE installing the Commercial Protector
System
®
.
• READ AND FOLLOW ALL INSTRUCTIONS.

CARTON INVENTORY

PART #
DESCRIPTION
CPS-U
Photoelectric Sensors with Mounting Hardware
41K4629 Commercial Protector Interface
®
Invisible Light Beam
Protection Area
Installation INSTRUCTIONS
Right Side of Garage
Photoelectric Sensor
®
QTY
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Commercial Protector System CPS-U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chamberlain Commercial Protector System CPS-U

  • Page 1 ® COMMERCIAL PROTECTOR SYSTEM INSTALLATION INSTRUCTIONS To reduce the risk of SERIOUS INJURY or DEATH: • This device is for use ONLY on LiftMaster ® Commercial Door • Disconnect power BEFORE installing the Commercial Protector Operators. System ® • For INDOOR USE ONLY. •...
  • Page 2 INSTALLATION ASSEMBLE AND MOUNT THE BRACKETS The following instructions show recommended assembly of the Mounting Bracket bracket(s) and “C” wrap based on the wall installation of the with Square Holes “C” Wrap photoelectric sensors on each side of the door or on the door tracks themselves.
  • Page 3 INSTALLATION MOUNT AND WIRE THE PHOTOELECTRIC SENSORS Center each photoelectric sensor in the bracket with the lenses pointing toward each other across the door. Wing Nut “C” Wrap Sensor Wire Attach the photoelectric sensors to the brackets with the provided hardware. Finger tighten the receiving sensor wing nut.
  • Page 4 INSTALLATION ALIGN THE PHOTOELECTRIC SENSORS Connect power to the operator. The green indicator lights in both the sending and receiving sensors will glow steadily if wiring connections and alignment are correct. If both green indicator lights are fl ashing rapidly (and the invisible light beam path is not obstructed), alignment is required: •...
  • Page 5 CPS WIRING CONNECTIONS COMMERCIAL PROTECTOR INTERFACE 24 Vac/dc Power Supply Common LiftMaster Commercial Door Operators N.O. Sensing Edge Input INFRARED BLACK or BROWN Photoelectric Sensors Sending Sensor (Emitter) INFRARED and Receiving Sensor (Receiver) WHITE or BLUE TYPICAL WIRING CONNECTIONS * NOTE: Refer to your owner's manual for wiring diagrams specifi c to your LiftMaster Commercial Door Operator. Mechanical Logic 2 Logic 3-4...
  • Page 6 TEST THE COMMERCIAL PROTECTOR SYSTEM ® ® To reduce the risk of SERIOUS INJURY or DEATH, the Commercial Protector System MUST be properly installed and working. Press the OPEN button to fully open the door. Press the CLOSE button to close the door. Obstruct the light beam while the door is closing.
  • Page 7 SIMPLY DIAL OUR TOLL FREE NUMBER: 1-800-528-2806 www.liftmaster.com WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION: • PART NUMBER • PART NAME • MODEL NUMBER ADDRESS ORDERS TO: THE CHAMBERLAIN GROUP, INC. Technical Support Group 6050 S. Country Club Road Tucson, Arizona 85706...
  • Page 8 © 2010, The Chamberlain Group, Inc. 01-36145B All Rights Reserved...
