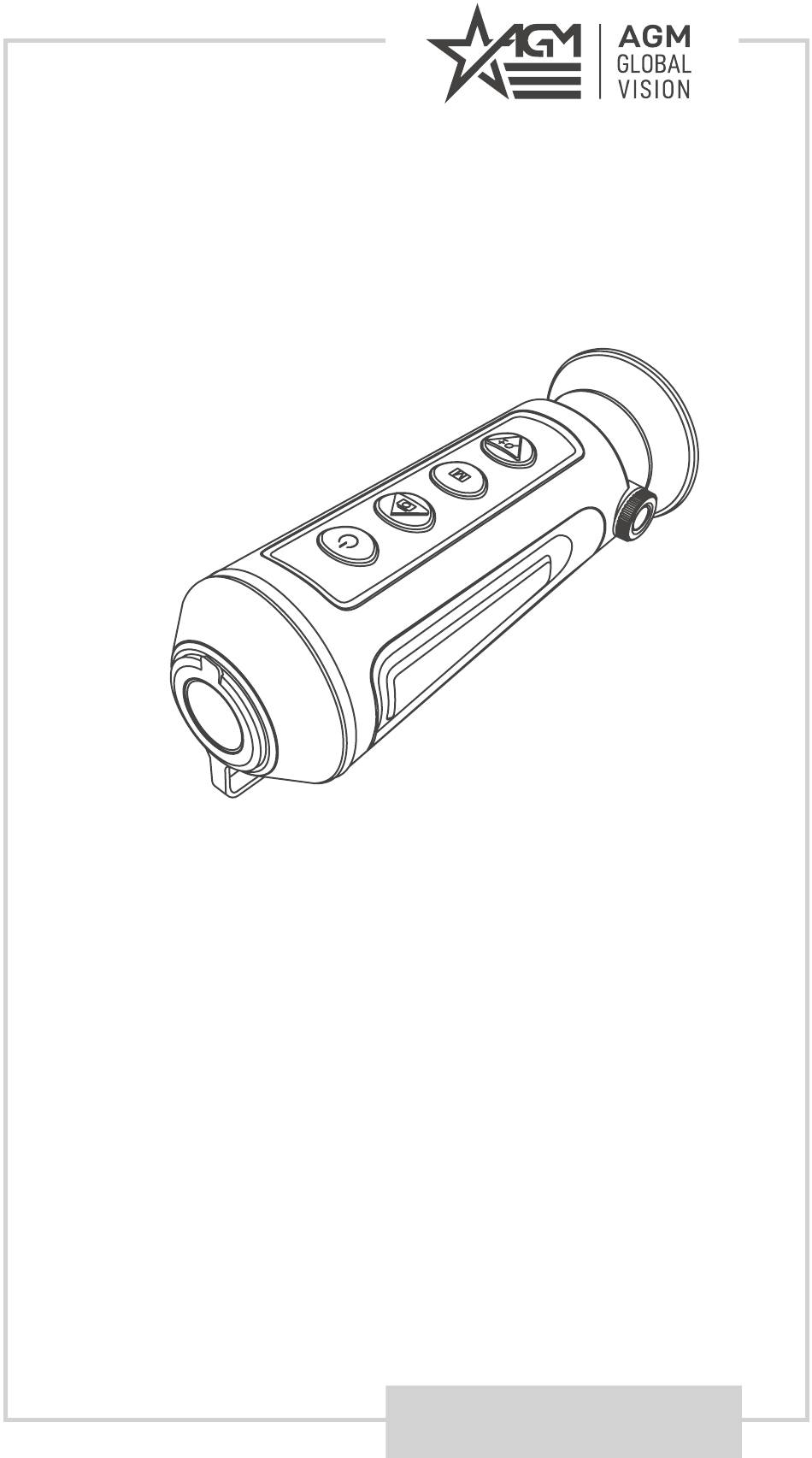

  • Page 1 ASP-MICRO THERMAL IMAGING MONOCULAR USER MANUAL...
  • Page 2 Act, and various U.S. embargoes and sanctions. AGM Global Vision products may not be exported, re-exported, or transferred contrary to U.S. export control laws. In particular, AGM Global Vision products may not be exported, re- exported, or transferred to prohibited countries, individuals, organizations, or...
  • Page 3 (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info INDUSTRY CANADA ICES-003 COMPLIANCE This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements. ASP-MICRO USER MANUAL...

  • Page 4: Table Of Contents

    1.2 Key Features 1.3 Standard Components 2. OPERATING INSTRUCTIONS 2.1. Basic Operations 2.2 Main Function 2.3 Client Software Introduction 3. MAINTENANCE 3.1 Maintenance 3.2 Troubleshooting 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration 5. SPECIFICATIONS 5.1 Specifications AGM Global Vision...

  • Page 5: Safety Summary

    If you are allergic to latex, it is important that you strictly avoid exposure to products that contain it. WARNINGS AND CAUTIONS: • In addition, an external power supply (5 V) provides an increase in operating time. ASP-MICRO USER MANUAL...

  • Page 6: General Information

    1 GENERAL INFORMATION SYSTEM DESCRIPTION The Asp-Micro handheld observational thermal monocular is equipped with a 160×120 or 384×288 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness.

  • Page 7: Key Features

    The standard components are shown in Figure 1-2 and listed in Table 1-2. The ITEM NO. column indicates the number used to identify items in Figure 1-2. FIGURE 1-2. STANDARD COMPONENTS TABLE 1-2. STANDARD COMPONENTS ITEM NO. DESCRIPTION QUANTITY Monocular USB Cable Neck Belt Lens Cloth Operation Manual ASP-MICRO USER MANUAL...

  • Page 8: Operating Instructions

    The charging temperature should be 0°C to 45°C (32°F to 113°F). BATTERY STATUS INTERFACE INDICATOR FIGURE 2-1. ASP-MICRO CHARGING 1. Lift the USB cover. 2. Plug in the USB cable and charge the device. 3. Plug the power adapter to the power source.
  • Page 9 2.1.3 CONTROL BUTTONS The Asp-Micro controls are shown in Figures 2-2 and are defined in Tables 2-2. Each button is responsible for some functions selected by short press or long press the button. Pushing a button for 2+ second is considered “long press/ hold.”...
  • Page 10 ADJUSTMENT KNOB FIGURE 2-4. DIOPTER ADJUSTMENT KNOB 4. Point the monocular towards the target of the view. 5. Set palettes, brightness, scenes, FFC (Flat Field Corrrection), and DPC (Defective Pixel Correction) to display the best image effect. AGM Global Vision...
  • Page 11 3. Enter DCIM>100EZVIZ to view the videos and snapshots. - Select and copy the videos to PC and play the file with the player. - Select and copy the snapshots to PC and view the files. 4. Disconnect the device from your PC. ASP-MICRO USER MANUAL...

  • Page 12: Main Function

    Press to adjust the FFC mode to auto, manual, or external. Press to correct dead pixel manually. Press to view the version number and serial number. Press to restore the device to defaults. AGM Global Vision...
  • Page 13 In black hot mode, the brightness of the image turns in the opposite way. FIGURE 2-7. BRIGHTNESS ADJUSTMENT 2.2.5 CONTRAST ADJUSTMENT Select and press button to adjust the image contrast. ASP-MICRO USER MANUAL...
  • Page 14 2.2.10 DISTANCE MEASUREMENT The device can detect the distance between the target and the observation position. NOTE: When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected. AGM Global Vision...
  • Page 15 5. Open the APP and connect your phone with the device. You can view the interface of monocular on your phone. NOTE: When the power is less than 15%, the Wi-Fi hotspot function will be turned off automatically. ASP-MICRO USER MANUAL...

  • Page 16: Client Software Introduction

    OSD menu. 2. Move the cursor to menu item and press the button to restore all parameters to default settings. 1. Open the APP and connect the phone or pad with the device. Asp-Micro TM160 AGM Global Vision...
  • Page 17 3. When the device is added, the live view can be seen. You can view the interface of the monocular on the software. User can change such image parameters as brightness, contrast, zoom, palettes directly via phone or pad as well as record video on phone/pad memory. ASP-MICRO USER MANUAL...

  • Page 18: Maintenance

    1. Connect the device to your PC with USB cable. 2. Open the detected disk, copy the upgrade file and paste it to the root directory of the device. 3. Disconnect the device from your PC. 4. Reboot the device. AGM Global Vision...

  • Page 19: Troubleshooting

    If the equipment malfunction is not corrected by the suggested actions, or a problem occurs that is not listed in this table, please contact AGM Global Vision’s Customer Support center or your retailer.

  • Page 20: Warranty Information

    Customer or by any party other than AGM Global Vision without prior written consent of AGM Global Vision; (d) is the result of a special order or categorized as “close-out” merchandise or merchandise sold “as-is” by either AGM Global Vision or the AGM Global Vision dealer;...
  • Page 21 AGM Global Vision and the Customer; AGM Global Vision’s obligations under this Agreement extend solely to the Customer. AGM Global Vision’s liability hereunder for damages, regardless of the form or action, shall not exceed the fees or other charges paid to AGM Global Vision by the customer or customer’s dealer.

  • Page 22: Specifications

    5 SPECIFICATIONS 5.1 SPECIFICATIONS ASP-MICRO TM160 ASP-MICRO TM384 Detector Type Vanadium Oxide Uncooled Focal Plane Arrays Resolution 160×120 384×288 Refresh Rate 50 Hz Response Waveband 8 μm to 14 μm Lens (Focal Length) 6.2 mm 15 mm Aperture F1.1 F1.0 Field of View (H×V)
