AGM ASP TM-384 Series User Manual

Thermal imaging monocular
Hide thumbs

Advertisement

Table of Contents

ASP TM-384
THERMAL IMAGING MONOCULAR
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASP TM-384 Series and is the answer not in the manual?

Questions and answers

Related Manuals for AGM ASP TM-384 Series

Summary of Contents for AGM ASP TM-384 Series

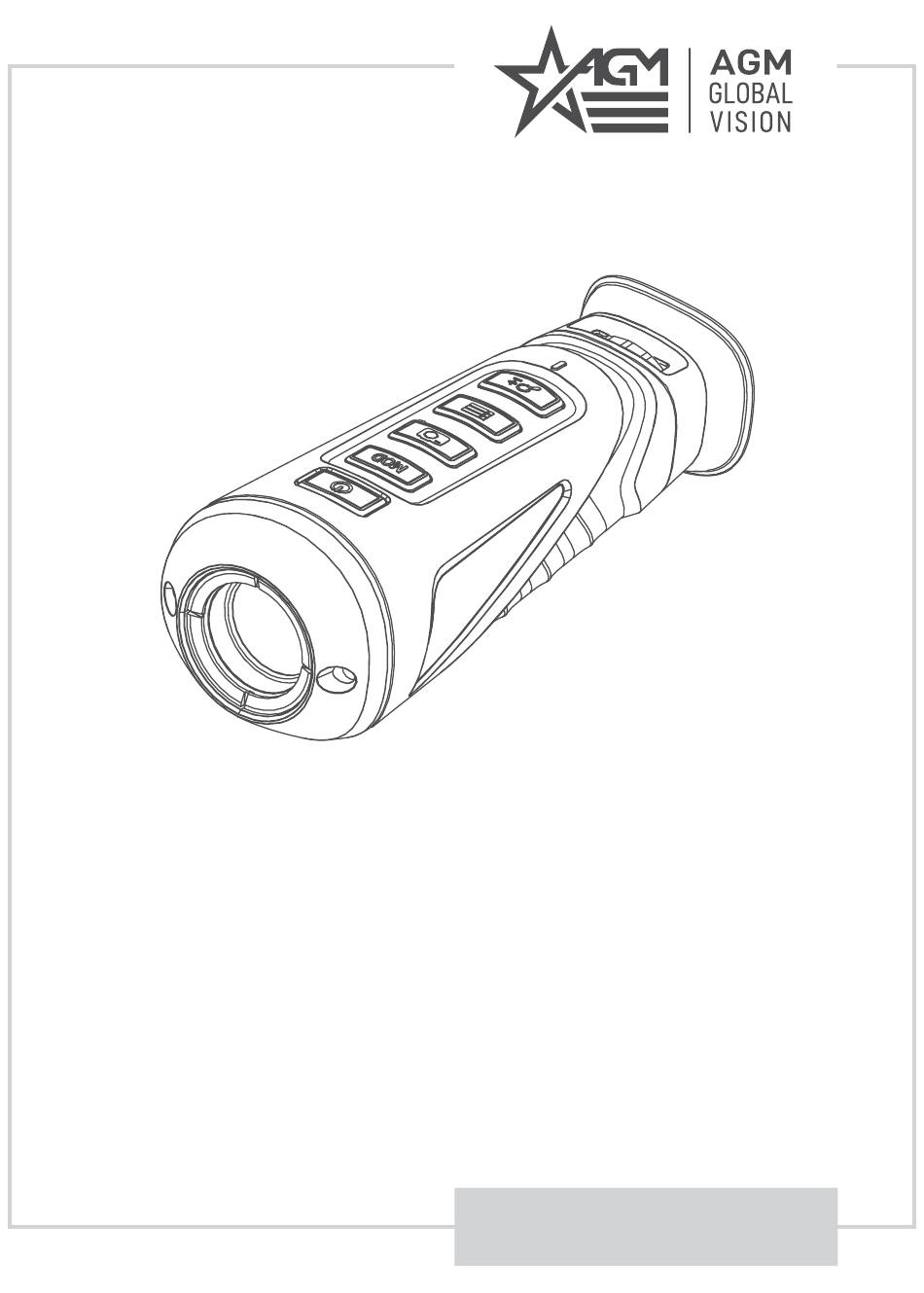

  • Page 1 ASP TM-384 THERMAL IMAGING MONOCULAR USER MANUAL...
  • Page 2 AGM Global Vision. If you have questions that are not covered in this manual, or need service, contact AGM Global Vision customer support for additional information prior to returning a product.

  • Page 3: Table Of Contents

    LIST OF CONTENTS TITLE PAGE Safety Summary SECTION 1. GENERAL INFORMATION 1.1 System Description 1.2 Key Features 1.3 Standard Components SECTION 2. OPERATING INSTRUCTIONS 2.1. Basic Operations 2.2 Main Function SECTION 3. MAINTENANCE INSTRUCTIONS 3.1 Maintenance 3.2 Troubleshooting SECTION 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration SECTION 5.

  • Page 4: Safety Summary

    The detector spectral band provides better visibility through smoke, dust, rain, smog, etc. Infrared radiation does not travel through glass. As a result, the monocular does not detect objects if they are behind glass windows or other barriers. AGM Global Vision...

  • Page 5: Section 1. General Information

    1 GENERAL INFORMATION SYSTEM DESCRIPTION The handheld thermal monocular is a handheld thermal camera with functions of observation, hot spot mark, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in IR detector provides you with clear view even in total darkness. FIGURE 1-1.

  • Page 6: Key Features

    The ITEM NO. column indicates the number used to identify items in Figure 1-2. FIGURE 1-2. ASP TM-384 STANDARD COMPONENTS TABLE 1-2. ASP TM-384 STANDARD COMPONENTS ITEM NO. DESCRIPTION QUANTITY Asp Monocular USB Cable Neck Belt Neck Belt Operation Manual Protective Bag AGM Global Vision...

  • Page 7: Section 2. Operating Instructions

    2 OPERATING INSTRUCTIONS 2.1. BASIC OPERATIONS 2.1.1 UNPACKING The following steps must be completed prior to each mission. 1. Open the carrying case, remove the monocular, and verify that all components are accounted for. 2. Inspect the monocular for any obvious evidence of damage to the optical surfaces, body, eyecup, operation buttons, etc.
  • Page 8 TABLE 2-2. BATTERY LED INDICATOR STATUS BUTTONS FUNCTIONS Power Hold: Power On/Off Press: Switch Pallet MODE Hold: Distance Measure On/Off Press: Capture Snapshot Capture Hold: Start/Stop Record Video Press: Shutter Release Menu Hold: Menu Operation Zoom ± Press: Digital Zoom AGM Global Vision...
  • Page 9 2.1.4 POWER ON AND OFF Power On Hold the POWER button for four seconds and the LED indicator in the front turns green. After the device is powered on, the indicator keeps green. Refer to the figure below for the main view of the monocular. DIGITAL ZOOM STORAGE WI-FI HOT SPOT...

  • Page 10: Main Function

    4. Reboot the monocular and the device upgrades automatically. The upgrading process will be displayed in the main interface. 2.2 MAIN FUNCTION 2.2.1 MENU OPERATION When the monocular is turned on, hold the button for three seconds to display the OSD menu. FIGURE 2-5. THE MAIN MENU AGM Global Vision...
  • Page 11 Press the button to move the cursor up, and press the button to move the cursor down. Press the button to confirm. TABLE 2-3. MENU FUNCTION MENU FUNCTION Press to display or hide the OSD information. Press to enable/disable hot spot mark (marking the spot of highest temperature).
  • Page 12 Press to confirm. 3. Set the top of the target. a) Move the monocular slightly to place the mark above the target top. b) Press to confirm. FIGURE 2-7. DISTANCE MEASUREMENT AGM Global Vision...
  • Page 13 4. Set the bottom of the target. a) Move the monocular slightly to place the mark below the target bottom. b) Press to confirm. The distance between you and the target will display on the upper left corner of the live view interface.
  • Page 14 5. Open the APP and connect your phone with the device. You can view the interface of monocular on your phone. NOTE: When the power is less than 15%, the Wi-Fi or hotspot function will be turned off automatically. AGM Global Vision...

  • Page 15: Section 3. Maintenance Instructions

    If the equipment malfunction is not corrected by the suggested actions, or a problem occurs that is not listed in this table, please contact AGM Global Vision’s Customer Support center or your retailer. ASP TM-384...
  • Page 16 The PC cannot identify the 2. If you use other USB cables, make sure the cable length is monocular. no longer than 1m. 3. Whether the Wi-Fi function is turned on. If so, go to OSD menu and turn off Wi-Fi. AGM Global Vision...

  • Page 17: Section 4. Warranty Information

    Customer. AGM Global Vision’s liability hereunder for damages, regardless of the form or action, shall not exceed the fees or other charges paid to AGM Global Vision by the customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special,...
  • Page 18 4.1.3 PRODUCT REGISTRATION In order to validate the warranty on your product, the customer must complete and submit AGM Global Vision PRODUCT REGISTRATION FORM on our website (www.agmglobalvision.com/ customer-support). 4.1.4 OBTAINING WARRANTY SERVICE To obtain warranty service on your unit, the End-user (Customer) must notify the AGM Global Vision service department via email.

  • Page 19: Section 5. Specifications

    5 SPECIFICATIONS 5.1 SPECIFICATIONS ASP TM25-384 ASP TM35-384 Image sensor Vanadium Oxide Uncooled Focal Plane Arrays Max. Resolution 384*288 Detector Pitch 17um Response Wavebond 8um to 14um NETD < 35mk(@25°C,F#=1.0) Lens (focal length) 25mm 35mm Field of View 14.88° x 11.19° 10.66°...
  • Page 20 AGM Global Vision 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. 928.333.4300 Fax 480.393.4882 info@agmglobalvision.com www.agmglobalvision.com AGMglobalvision.com...

This manual is also suitable for:

Asp tm35-384Asp tm25-384Asp tm-384
