Pyle PPHP103MU User Manual page 3

1
2
3
4
5
6

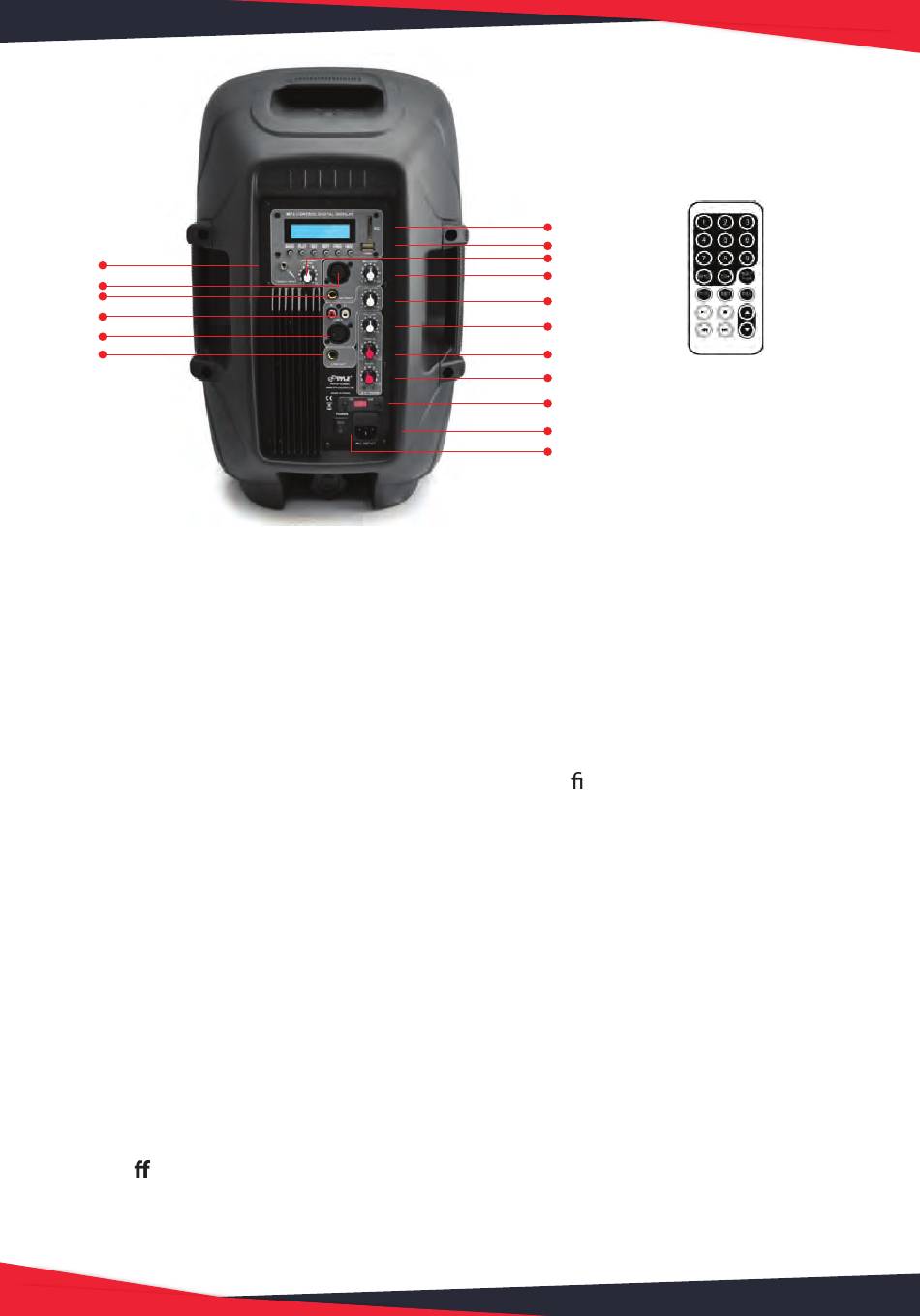

1. Iphone Input: Allows you to connect an Iphone using a 3.5mm connector.
2. Banlanced Microphone Input: Balanced microphone input connector
4. RCA Line-In: Connect an external audio device (CD, radio / DVD,etc) with RCA
connectors
5. XLR Line-In: Allows you to connect an external audio device (CD, radio / DVD,etc)
with XLR connectors
6. Signal Output: Use 6.35mm jack to connect ampli er or even another powered
speaker cabinet in cascade using a XLR connector
7/8. SD card /USB
9. MP3/ Iphone Volume Control: Set the MP3/ Iphone volume level
10. Mic Volume Control: Use this control to set the volume level of Microphone
11. Line-In Signal Volume Control: Use this control to set the volume level of the
Line-In signal
12. Volume Control: Set the volume level
13. Treble: Set the treble level
14. Bass: Set the bass level
15. AC 120/240 Voltage Selectable
16. On/O Power Switch: Press to power ON/OFF the speak box
17. AC Power: To connect the AC power cord
7
8
9
10
11
12
13
14
15
17
16
3
Remote control
