Wireless Base Stations
▫
Surveillance Cameras
▫
Remote Gate Control
▫
Electric Fence
▫
Up to 192W loads
▫

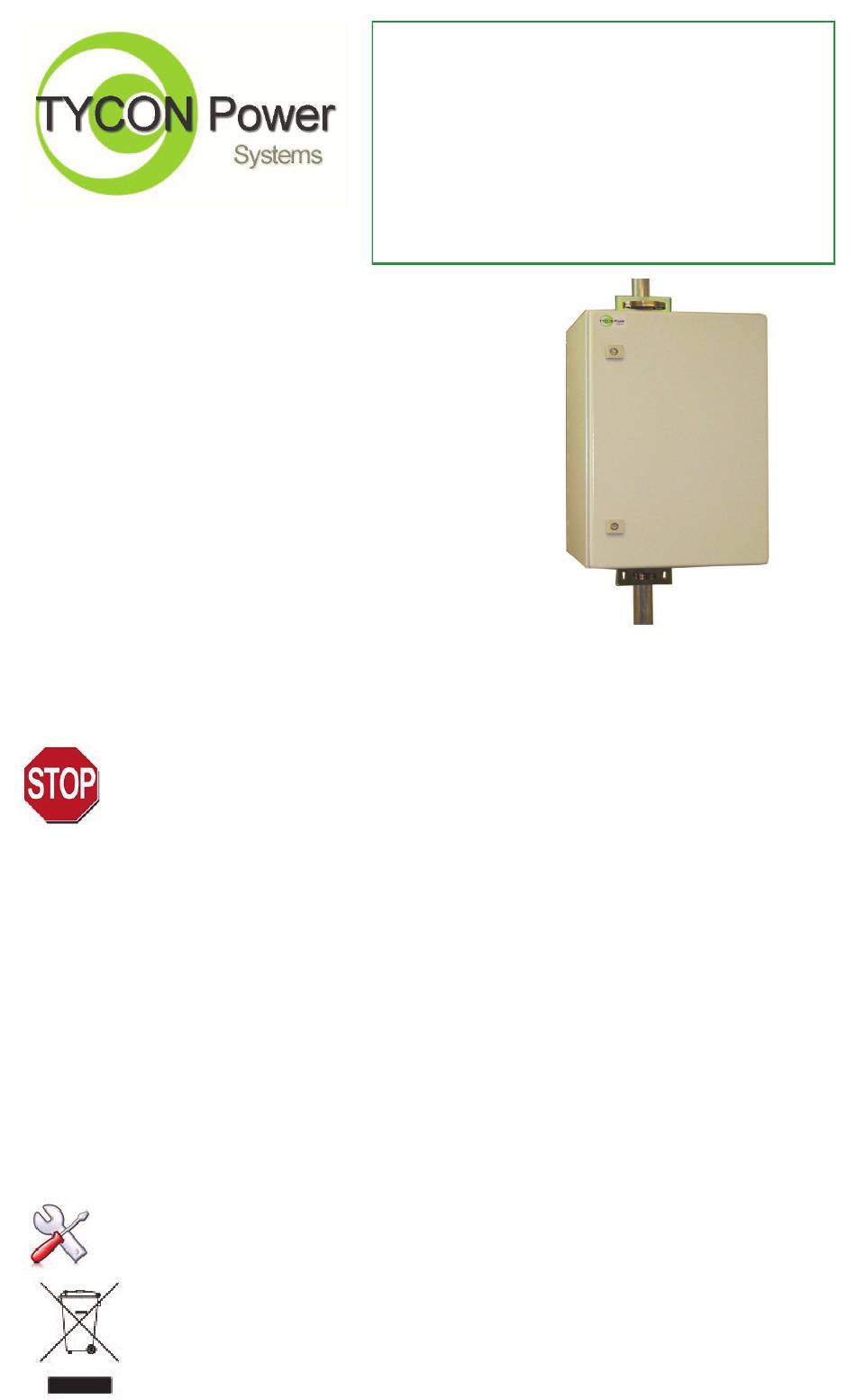

Congratulations! on your purchase of the UPSPro™ outdoor
backup power system. Please take a moment to review this Qwik
Install Guide before assembly or battery installation.
When following the instructions in this guide take extreme care to avoid
contact with overhead power lines, lights and power circuits. Contact
with power lines, lights or power circuits may be fatal. We recommend
to install no closer than 20 feet to any power lines.
Safety:
For your own protection, follow these safety rules.
▫
Perform as many functions as possible on the ground
▫
Do not attempt to install on a rainy, windy or snowy day or if
there is ice or snow accumulation at the install site or if the
site is wet.
▫
Make sure there are no people, pets, etc. below when you are
working on a roof or ladder.
Recommended Tools: Phillips Screwdriver, 13mm and 10mm
Open End Wrench, 8mm nut driver, Flat Blade Screwdriver
Please help preserve the environment and return
used batteries to an authorized depot
UPSPro™ Backup
DANGER! Avoid Powerlines!
You Can Be Killed!
UPS-ST12
UPS-ST24
Power System
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tycon Power Systems UPSPro UPS-ST12
Summary of Contents for Tycon Power Systems UPSPro UPS-ST12
- Page 1 UPS-ST12 UPS-ST24 UPSPro™ Backup Power System Wireless Base Stations ▫ Surveillance Cameras ▫ Remote Gate Control ▫ Electric Fence ▫ Up to 192W loads ▫ Congratulations! on your purchase of the UPSPro™ outdoor backup power system. Please take a moment to review this Qwik Install Guide before assembly or battery installation.
- Page 2 Qwik Install STEP 1: Add Grounding Wire Between Door and Enclosure: Remove plastic covers on cop- per studs on inside of door and inside of enclosure. Add jumper wire between 2 copper studs and use copper washers and nuts to secure. STEP 2: Add wire feedthrus into the bottom connector plate.
- Page 3 using the 4 holes in the back of the enclosure. STEP 5: Insert the battery platform in the bottom of the enclosure. The bat- tery platform has cutouts so wires can be routed under the battery as needed. STEP 6: Mount any extra equipment that will reside inside the enclo- sure.
- Page 4 24V two battery and 24V four battery configurations are shown below. Bat- teries are connected in series, with Plus (+) connected to Minus(-). STEP 8: If batteries are installed on their side make sure to apply an insulator to the top of the battery terminal to prevent the battery terminals from shorting to the metal enclosure in case the battery shifts inside the enclosure during an earthquake.
- Page 5 STEP 11: When a battery is connected properly the BATT LED will be green. Make sure that the Battery Type is selected correctly and never change the battery type during charging or this could damage the con- troller. Use GEL for GEL or AGM batteries. Use WET for standard lead acid wet cells.
- Page 6 -30°C to +60°C ature 2. CAPACITY: The UPSPro UPS-ST12 is rated at 144W load output. The UPS-ST24 is rated at 192W load output. The UPS –ST24 can de- liver 288W to the load but then the power available for battery charging is too small, so we recommend not to exceed 192W to the load for best performance.
- Page 7 Just visit tyconpower.com for more info. Compatible Solar Panel Kits Tycon Power Systems Solar Panel kits come with High Performance solar panels, side of pole mounts and out- door rated connection cabling. Solar panels have a 25 year output warranty.
- Page 8 Compatible Wind Turbine TPW-400N-12 400W 12V Wind Turbine TPW-400N-24 400W 24V Wind Turbine Includes controller Good low wind perfor- mance Self braking in high wind 80MPH survivability Sealed and maintenance free Limited Warranty The UPSPro™ products are supplied with a limited 24 month warranty which covers material and workmanship defects.
