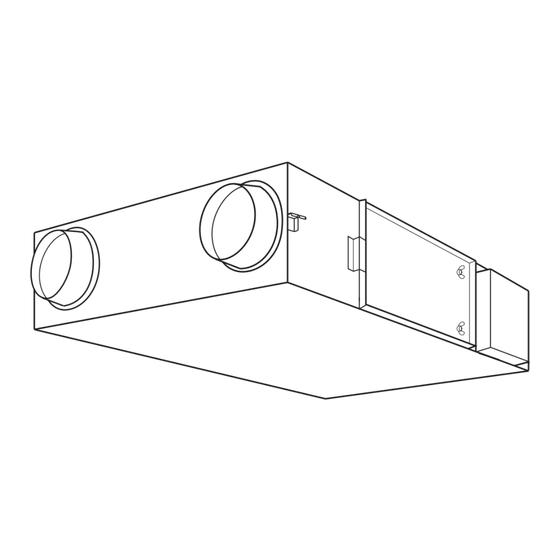

Fujitsu UTZ-BD025C Installation Manual

Energy recovery ventilators
Hide thumbs

Advertisement

Quick Links

UTZ-BD025C
UTZ-BD035C
UTZ-BD050C
UTZ-BD080C
UTZ-BD100C

Advertisement

loading

  Also See for Fujitsu UTZ-BD025C

  Related Manuals for Fujitsu UTZ-BD025C

  Summary of Contents for Fujitsu UTZ-BD025C

  • Page 1 UTZ-BD025C UTZ-BD035C UTZ-BD050C UTZ-BD080C UTZ-BD100C...
  • Page 2 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involves.
  • Page 4 Model UTZ-BD035C and UTZ-BD050C have two UTZ-BD100C Heat Exchange Elements. UTZ-BD025C UTZ-BD080C UTZ-BD035C UTZ-BD100C UTZ-BD050C UTZ-BD080C UTZ-BD025C UTZ-BD100C UTZ-BD035C UTZ-BD050C...
  • Page 5 ■Cable for supply cord : VVF cable with Φ1.6 or Φ2. Cable for connecting main unit and remote controller : 300V/500V , 60227IEC10 (hard wire). Cross-section area for each core wire is 1.5mm...
  • Page 6 FY-250ZDY8 FY-350ZDY8 UTZ-BD025C UTZ-BD035C FY-500ZDY8 UTZ-BD050C Number Name Quantity Note Frame Adapter Terminal Inspection Cover Motor Note2) Heat Exchange element Note1) Filter Damper 4-13×30 Oval hole Damper Motor ⑬ Ceiling Suspension Fixture Electrical Equipment Box Energy Recovery Ventilator Remocon Note1) Model No.UTZ-BD035C and UTZ-BD050C...
  • Page 7 Ask a specialized electrical construction operator for advice regarding wiring in accordance with "Technical Standards for Electrical Equipment"and"Interior Wiring Regulation". Connect wires/cables indicated by broken lines. UTZ-BD025C For power supply,use a VVF cable with 1.6 or 2. Take the following steps on connect wires/cables: Remove two screws fixing the cover of the electrical components box,open the cover ,and connect wires/cables correctly.
  • Page 8 UTZ-BD035C UTZ-BD050C UTZ-BD080C 10.0 UTZ-BD100C 10.0 Relay 4...
  • Page 9 When operating multiple air-to-air heat exchange units using a single switch ,the maximum number of units able to be operated is 10. Be sure to use the appropriate power supply corresponding to each model number,Using an inappropriate power supply may cause the motor to burn out. Grounding work must be based on Class D as defined in "Technical Standards for Electrical Equipment".
  • Page 10 Printed in China Gedruckt in China Imprimé en Chine Impreso en China Stampato in Cina Impresso na China Pursuant to at the directive 2014/30/EU,article 9(2) 25ZDY8RFG0854 P0917-0...
