FlashLogic FLCAN Install Manual page 6

iNstall Guide
Page 6 of 12
1 2
STARTER 1 (+) OUTPUT STARTER 1 (+) OUTPUT
PARKING LIGHT (-) OUTPUT PARKING LIGHT (-) OUTPUT
HOOD STATUS (-) INPUT HOOD STATUS (-) INPUT
STARTER 2 (+) OUTPUT STARTER 2 (+) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT GROUND WHEN RUNNING (-) OUTPUT
LEGEND
N/A NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
GWR INPUT - BLUE/WHITE GWR INPUT - BLUE/WHITE
(NC) WHITE (NC) WHITE
GROUND - BLACK GROUND - BLACK
12V (+) - RED 12V (+) - RED
LOCK/ARM (-) INPUT - GREEN/BLACK LOCK/ARM (-) INPUT - GREEN/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK UNLOCK/DISARM (-) INPUT - BLUE/BLACK
(NC) RED/WHITE
(NC) RED/WHITE
CONNECT TO GROUND
ONLY IF VEHICLE
PURPLE/YELLOW
IS EQUIPPED WITH
(NC) PURPLE/BLACK (NC) PURPLE/BLACK
FACTORY HOOD SWITCH.
STARTER 2 (+) INPUT - BLACK/WHITE STARTER 2 (+) INPUT - BLACK/WHITE
HOOD STATUS (-) OUTPUT - GREEN HOOD STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE TACH (AC) OUTPUT - PURPLE/WHITE
www.flash-it.com
FLC-AL(DL)-MA2-EN

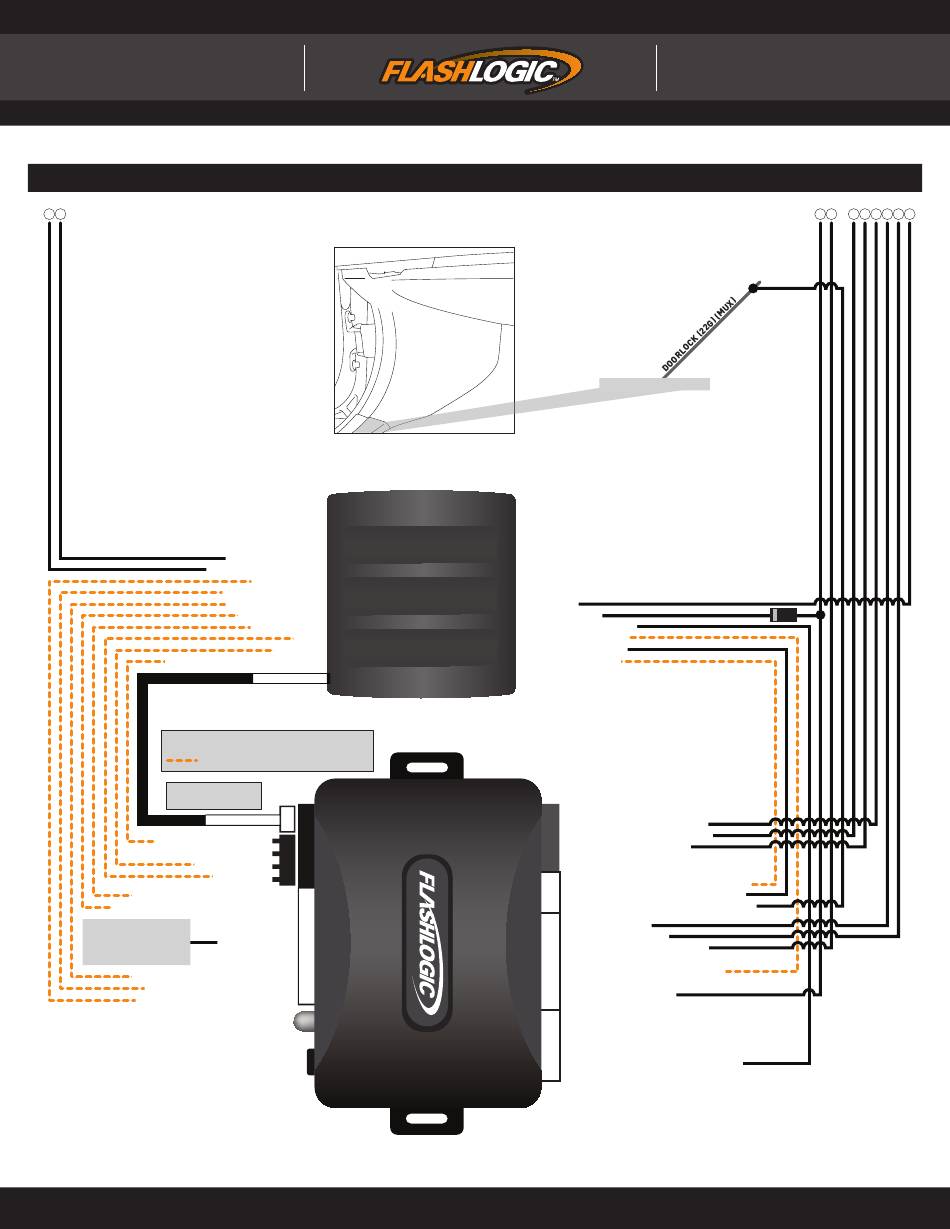

TYPE 1 - WIRING DIAGRAM - 2 of 2
REMOTE STARTER
<- REQUIRED
<- REQUIRED
TACH (AC) INPUT TACH (AC) INPUT <- REQUIRED
<- REQUIRED
<- REQUIRED
UNLOCK (-) OUTPUT UNLOCK (-) OUTPUT <- REQUIRED
LOCK (-) OUTPUT LOCK (-) OUTPUT
<- REQUIRED
12V (+) 12V (+)
<- REQUIRED
GROUND (-) GROUND (-) <- REQUIRED
<- REQUIRED
DATA MODE
(NC) BROWN (NC) BROWN
(NC) WHITE (NC) WHITE
DRIVER RUNNING BOARD
DRIVER KICK PANEL
REQUIRED ->
12V (+) INPUT 12V (+) INPUT
REQUIRED ->
IGNITION (+) INPUT IGNITION (+) INPUT
REQUIRED ->
E-BRAKE STATUS (-) INPUT E-BRAKE STATUS (-) INPUT
REQUIRED -> BRAKE STATUS (+) INPUT BRAKE STATUS (+) INPUT
OPTIONAL ->
TRUNK STATUS (-) INPUT TRUNK STATUS (-) INPUT
OPTIONAL ->
DOOR STATUS (-) INPUT DOOR STATUS (-) INPUT
WHITE/BLACK - RX VEHICLE SIDE WHITE/BLACK - RX VEHICLE SIDE
WHITE/RED - RX CONNECTOR SIDE WHITE/RED - RX CONNECTOR SIDE
WHITE - RX CONNECTOR SIDE - RX CONNECTOR SIDE
YELLOW/BLACK - DOOR STATUS (-) OUTPUT YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW - DOORLOCK/ALARM (MUX) OUTPUT YELLOW - DOORLOCK/ALARM (MUX) OUTPUT
BROWN/RED - CANH BROWN/RED - CANH
BROWN/YELLOW - CANL BROWN/YELLOW - CANL
ORANGE/BLACK - PTS (-) OUTPUT ORANGE/BLACK - PTS (-) OUTPUT
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC) PINK/BLACK (NC)
PINK - IGNITION (+) INPUT PINK - IGNITION (+) INPUT
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/YELLOW (NC) GREEN/YELLOW (NC)
GRAY/RED - E-BRAKE STATUS (-) OUTPUT GRAY/RED - E-BRAKE STATUS (-) OUTPUT
GRAY/YELLOW (NC) GRAY/YELLOW (NC)
ALL IN ONE
Mazda
20130227
Doc. No.: ##11050##
3 4 5 6 7 8 9 10
DIODE
1N4001
audiovox electronics corp. © 2013
