1
LED fl ashes (1X) once = DATA MODE
LED fl ashes (2X) twice = STANDARD HARDWIRE MODE
1 
x2
2
www.flash-it.com
FLC-AL(DL)-MA2-EN

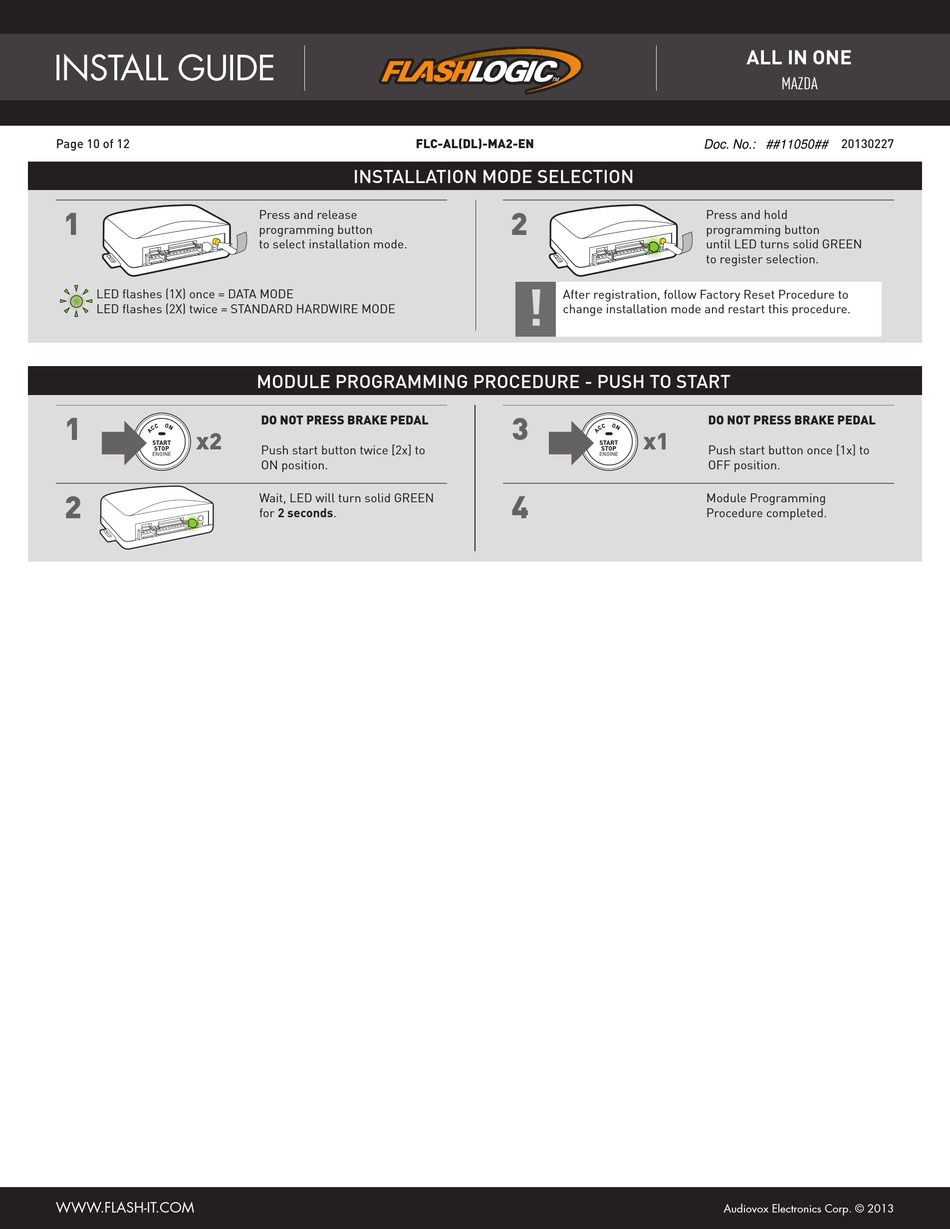

INSTALLATIoN MoDE SELECTIoN

Press and release
programming button
to select installation mode.
MoDULE PRoGRAMMING PRoCEDURE - PUSH To START
DO NOT PRESS BRAKE PEDAL
Push start button twice [2x] to
ON position.
Wait, LED will turn solid GREEN
for 2 seconds.
2
!
After registration, follow Factory Reset Procedure to
change installation mode and restart this procedure.
3 
x1
4
ALL IN ONE
Mazda
20130227
Doc. No.: ##11050##
Press and hold
programming button
until LED turns solid GREEN
to register selection.
DO NOT PRESS BRAKE PEDAL
Push start button once [1x] to
OFF position.
Module Programming
Procedure completed.
