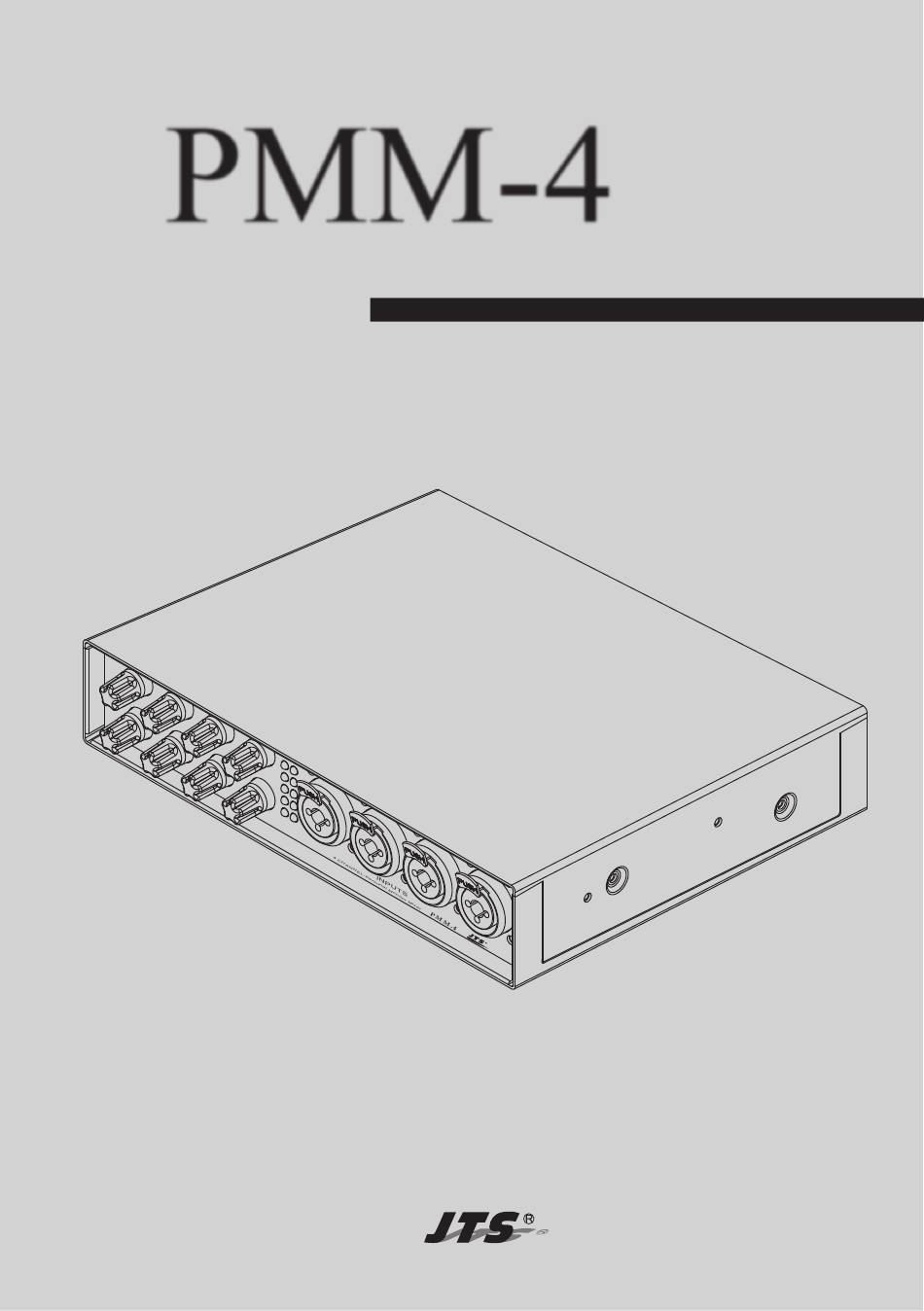

  • Page 1 PMM-4 Personal Monitoring Mixer...
  • Page 2 ATTENTION Please pay high attention to the following information. PMM-4 The guideline published by Occupational Safety Health Administration (OSHA) in United States indicates overload volume level for prolonged listening may harm your hearing. Here below are referenced data on maximum time exposure to sound level before hearing injury occurs.

  • Page 3: Table Of Contents

    1. Important Cautions 2. Features 3. Specification 4. Parts Identification 5. Preparing Procedures 6. Basic Operation Thanks for choosing JTS PMM-4 Personal Monitoring Mixer. In order to obtain the best efficiency, you are recommended to read this manual before applying.

  • Page 4: Important Cautions

    ▲ Keep the device away from fire and heat sources. FEATURES PMM-4 This multi purpose stereo mic/line mixer is designed for installed sound system application and personal monitoring. Four input signals can be easily controlled. Two addional auxiliary inputs and four outputs are provided for expanding capabilities.

  • Page 5: Specification

    1/4Ó jack Impedance 5.9KΩ 18.2 KΩ (MONO:9.1 KΩ) Input level(Max) +7.5dB +7.9dB (Main Mix Output:+13.5dB) CMRR >70dB >70dB PMM-4 Electronic Specification-Output Main Mix Output Split Outputs(CH.1~CH.4) Connector 1/4Ó jack Impedance 1KΩ (Balanced); 500Ω(Unbalanced) Output level(Max) 6.5dB±0.3dB (INPUT CH1~4) Noise <-110dB Distortion <0.005%...

  • Page 6: Parts Identification

    PREPARING PROCEDURE 1. Plug in one end of AC/DC adaptor cable to DC socket on the rear panel of PMM-4. And plug the other end into an AC outlet. 2. Connect the main mix outputs to the audio input of the next device.

  • Page 7: Basic Operation

    Rack Mounting the PMM-4 RM-901 rack mount kit is available to install the half rack PMM-4 into a standard EIA rack. PMM-4 INPUTS PMM-4 BASIC OPERATION Power On/ Off PMM-4 Turn on or turn off the unit by pressing the Ï POWERÓ...
