Installation Guide
HERO AB-QM connection set, DN 15-25
C
B
E
Installation / Montering / Einbau / Installation /Installatie / Montaj
Heating Solutions
MAINTENANCE
FREE
Type
DN10LF
DN15LF
DN15
DN20
DN25
D
A
-
-10...120°C
–10...120 °C
–10...120 °C
VI.LP.A1.3T
-25
DN
A
B
C
D
E
10
15
Rp½
15
Rp¼
20
Rp¾
25
R1
Rp1
Rp1
R1
PN 16
Δp
= 400 kPa (4 bar)
PN 16
p
= 400 kPa (4 bar)
max.
PN 16
p
= 400 kPa (4 bar)
max.
max.
SMT/SI
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Danfoss HERO AB-QM
Summary of Contents for Danfoss HERO AB-QM

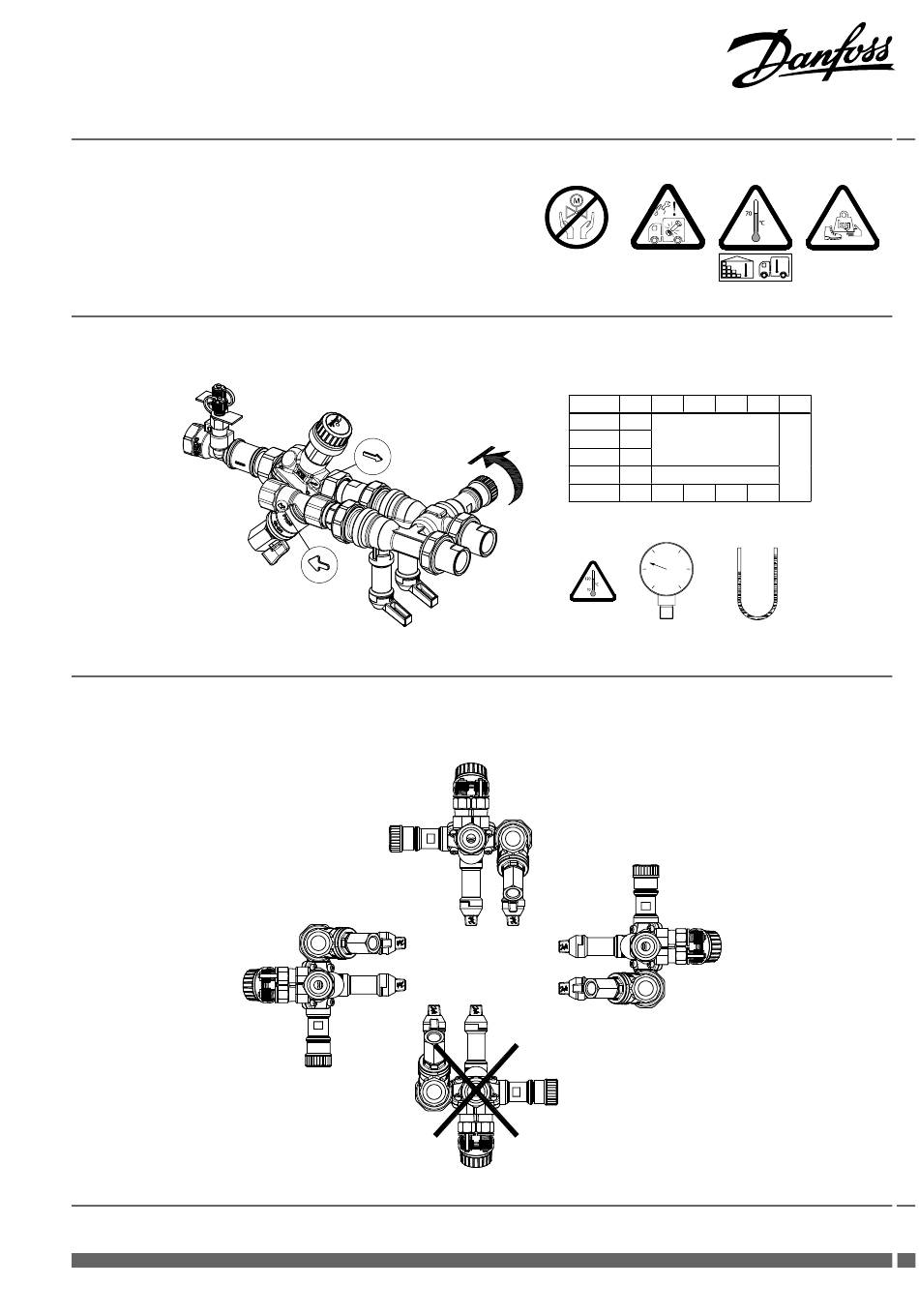

- Page 1 Installation Guide HERO AB-QM connection set, DN 15-25 MAINTENANCE FREE Type DN10LF DN15LF Rp½ DN15 Rp¼ DN20 Rp¾ DN25 PN 16 Δp = 400 kPa (4 bar) -10…120°C –10…120 °C PN 16 = 400 kPa (4 bar) max. –10…120 °C...
- Page 2 Installation Guide HERO AB-QM connection set, DN 15-25 Installation / Montering / Einbau / Installation /Installatie / Montaj ① ② ② ① Setting / Indstilling / Einstellung / Réglage / Ayarlama 4.5 lbf ft (6 Nm) ≠ 100% h+ 2 mm ①...
- Page 3 Installation Guide HERO AB-QM connection set, DN 15-25 Draining / Drenering / Entleerung / Vidange / Boşaltma Flushing of main pipe / Gennemskylning af hovedrøret / Spülen der Hauptleitung / Rinçage conduite / Ana Hattın Temizlenmesi Backward flushing / Baglengs gennemskyllning / Spülen über den Rücklauf / Rinçage à contre courant / Ters Akışla Temizleme Heating Solutions VI.LP.A1.3T...
- Page 4 Installation Guide HERO AB-QM connection set, DN 15-25 Dimensions / Dimension / Abmessungen / Dimensions / Ölçüler / DN10LF DN15LF DN15 DN20 DN25 Measuring / Måling / Messung / Mesure / Ölçülm Δp [kPa] Δp Q (Flow) Q [L/h] 73693990/VI.LP.A1.3T...
