MODEL7210 Series
Ethernet /4E1 Protocol Converter
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the converter for the first time.
1.
Protocol converter
3.
Quick installation guide
5
Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
The series products are 1-way Ethernet to 4-way E1 protocol
converters, including the following models:
Model I MODEL7210 (1-way 10/100M copper port + 4-way
E1 BNC port)
Model II MODEL7210-1U (1-way 10/100M copper port +
4-way E1 BNC or RJ45 port)

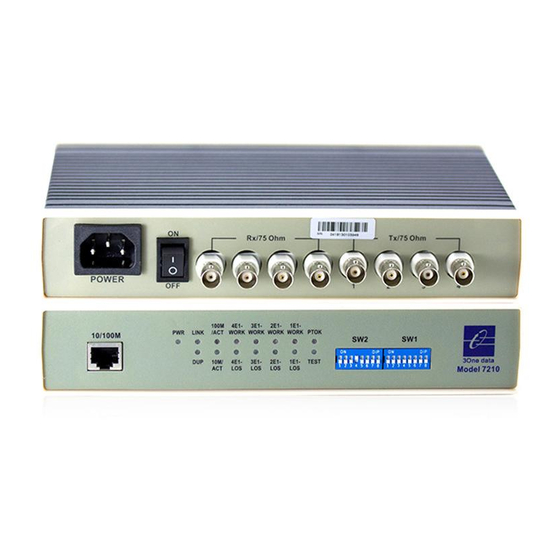

【Panel Design】
Front view (Rack-mounted)
Rear view (Rack-mounted)
Front view (Desktop)
Rear view (Desktop)
Nanshan
District,
1.
Power indicator
2.
Ethernet connection status indicator
3.
Ethernet duplex mode indicator
4.
Ethernet 10M speed status/active indicator
5.
Ethernet 100M rate status/live indicator
6.
E1-E4 port operating status indicator
7.
E1-E4 port signal interruption alarm indicator
2.
AC power cord
8.
Pseudorandom test status indicator
4.
Certification
9.
E1 loopback test status indicator
10.
DIP switch
11.
12.
220VAC power input socket
13.
220VAC power switch
14.
-48VDC power input terminal
15.
E1 input BNC port
16.
E1 RJ45 port
17.
E1 output BNC port
18.
10/100M Ethernet copper port (MDI)
19.
10/100M Ethernet copper port (MDI-X)
Note:
Ethernet port is connected to PC host through crossover
cable, connected to switch through straight through
cable.
【Mounting Dimension】
Unit (mm)
Rack-mounted
Desktop
Note before mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
