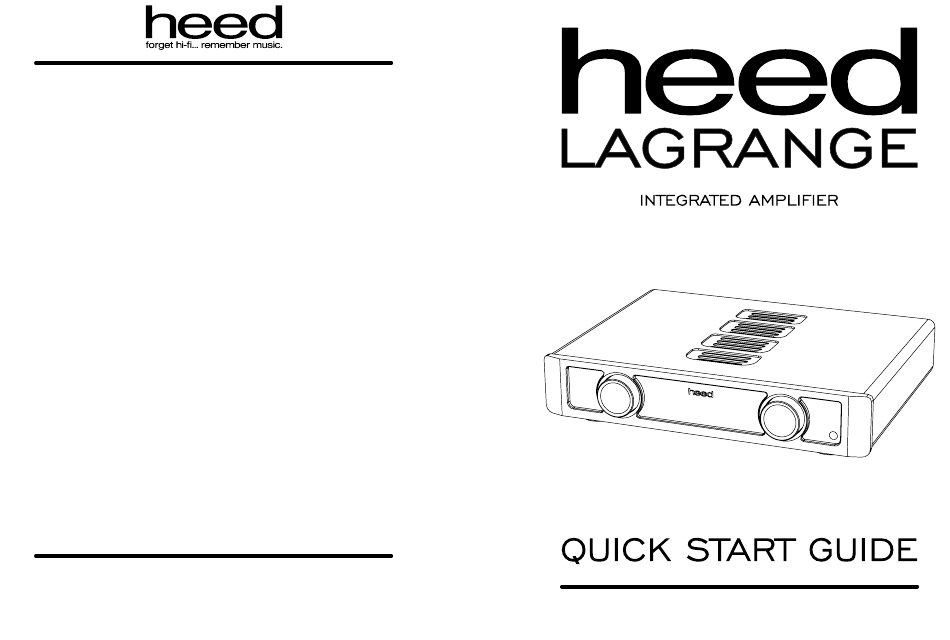

HEED LAGRANGE Quick Start Manual

inputs:
optional DAC card:
outputs:
power (power amplifier):
power (headphone amplifier):
impedance (headphones):
input impedance:
RIAA accuracy:
power consumption:
weight:
dimensions:
Heed Audio Kft. (Ltd.)
Reviczky Gyula u. 9-11
H-1181 Budapest
Tel.: +36 1 294 7401
info@heedaudio.hu
www.heedaudio.com
4 pairs RCA line input
1 pair RCA MM phono input
1 pair Home Theater bypass input
1 Bluetooth wireless input
1 USB
1 coaxial
1 optical
2 pairs speaker connectors
1 pair RCA preamplifier output
1 pair RCA fixed line output
1 front panel 6.35 mm headphones Jack
60 W / 8 Ω both ch
100 W / 4 Ω both ch
max. 210 mW / 75 Ω load
ideally above 50 Ω (min. 15 Ω)
10 kΩ (1 - 4 line inputs)
47 kΩ / 100 pF (MM phono input)
+/- 0.5 dB
600 VA max.
20 W idle
15 kg
43 x 9 x 34.5 cm (W x H x D)
Hungary
