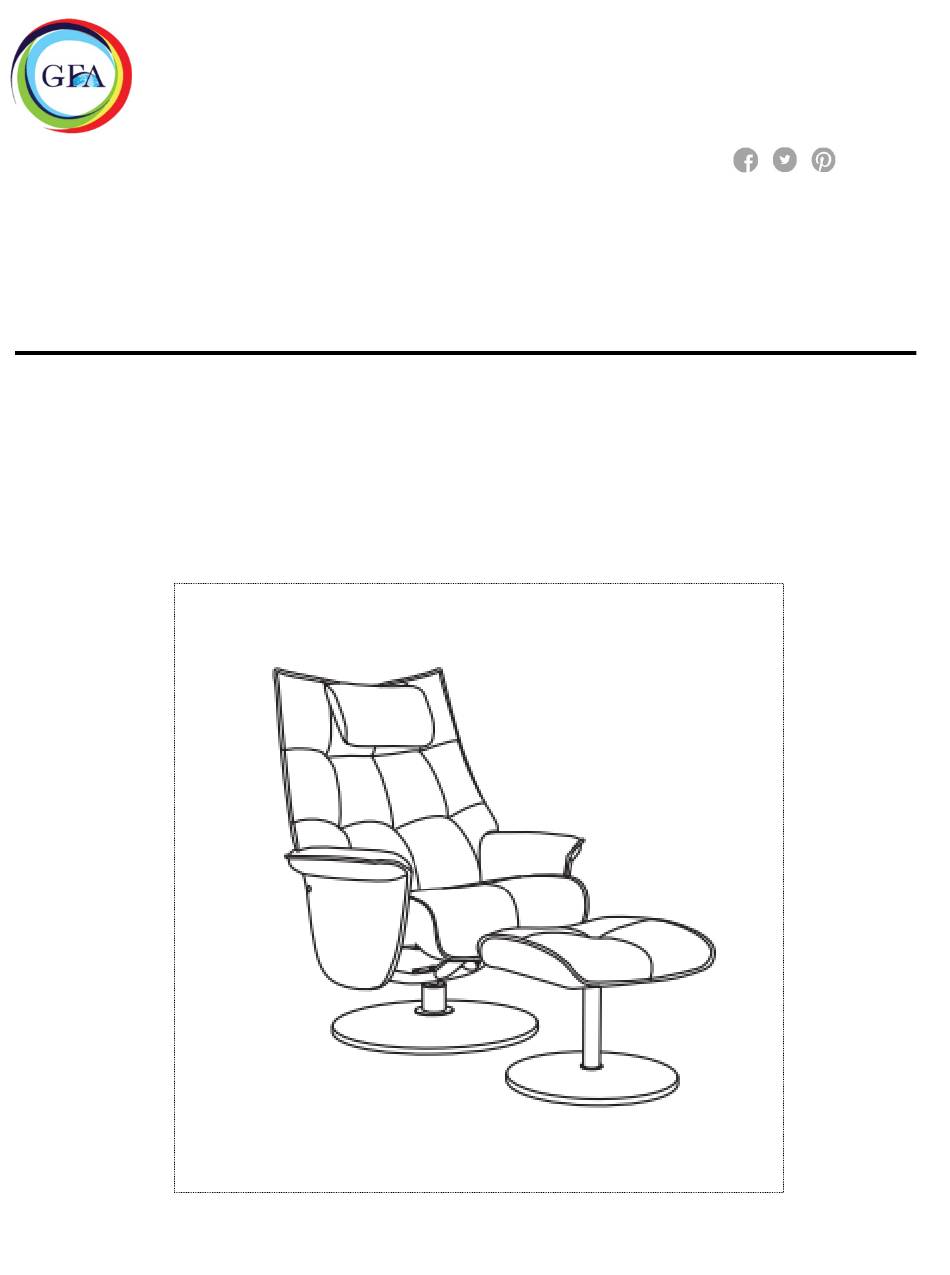

- Page 1 01291 645080 01291 645099 GLOBAL FURNITURE ALLIANCE LTD sales@gfa.uk.com www.gfa.uk.com Palmera Swivel Recliner DESCRIPTION TV Chair With Footstool...
- Page 2 This product is designed to seat people up to a maximum of 115kgs (18 stone) Check and re-tighten parts/nuts & bolts every three months For any assistance with assembly, please contact Global Furniture Alliance on 01291 645080 Option 2 or email service@gfa.uk.com...
-
Page 3: Safety Information
01291 645080 01291 645099 GLOBAL FURNITURE ALLIANCE LTD sales@gfa.uk.com www.gfa.uk.com IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. -
Page 4: Pre-Assembly Information
01291 645080 01291 645099 GLOBAL FURNITURE ALLIANCE LTD sales@gfa.uk.com www.gfa.uk.com PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION Seat Cushion Back Cushion Footstool Pad Qty 1 Qty 1 Qty 1 Fa/b Chair Spindle with Footstool Chair Round Base Large Metal Plate Round Base Qty 1... - Page 5 01291 645080 01291 645099 GLOBAL FURNITURE ALLIANCE LTD sales@gfa.uk.com www.gfa.uk.com PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION Ga/b Footstool Spindle with Small Metal Handle Plate Qty 1 Qty 1...
-
Page 6: Hardware Description
01291 645080 01291 645099 GLOBAL FURNITURE ALLIANCE LTD sales@gfa.uk.com www.gfa.uk.com PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION Allen Key Screw Allen Key Screw Allen Key Screw with Locking Nut M6*16mm M8*55mm M8*25mm Qty 4 Qty 7 Qty 2 Allen Key Screw Small Washer... - Page 7 01291 645080 01291 645099 GLOBAL FURNITURE ALLIANCE LTD sales@gfa.uk.com www.gfa.uk.com PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION Pa/b Large Washer M6 Allen Key Chrome Cap 8.5*22*2mm Qty 1 Qty 2 Qty 5 Large Allen Wrench Qty 1...
- Page 8 01291 645080 01291 645099 GLOBAL FURNITURE ALLIANCE LTD sales@gfa.uk.com www.gfa.uk.com ASSEMBLY STEP 1 Attach the chair spindle (Fa) on the center of the Base (D) with a metal plate (Fb). Use five screws (I) and five large washers (O) and the Allen key (Q) to tighten as per above diagram.
- Page 9 01291 645080 01291 645099 GLOBAL FURNITURE ALLIANCE LTD sales@gfa.uk.com www.gfa.uk.com ASSEMBLY STEP 2 Insert the handle (H) into the hole on the metal frame of the seat cushion(B) with clockwise rotation. Position back cushion (A) as shown and align the two holes at two sides of seat cushion cuhsion (B) and back cushion (A) together, connecting the seat cushion (B) and back cushion (A) by using two chrome caps (Pa/b) and two allen key screws (I) and two medium washers(N).
- Page 10 01291 645080 01291 645099 GLOBAL FURNITURE ALLIANCE LTD sales@gfa.uk.com www.gfa.uk.com ASSEMBLY STEP 3 Come to the back of the chair, align two holes on the seat cushion (B) and back cushion (A) together. Use two allen key screws with locking nuts (J) to tighten, use large wrench (R) and M6 allen key...
- Page 11 01291 645080 01291 645099 GLOBAL FURNITURE ALLIANCE LTD sales@gfa.uk.com www.gfa.uk.com ASSEMBLY STEP 4 Attach footstool spindle(Ga) on the bottom of the footstool pad(C) as shown, align four holes on the spindle and footstool pad together. Place the screws (K) and small washers (M) accoring to the holes location, use the M6 allen key...
- Page 12 01291 645080 01291 645099 GLOBAL FURNITURE ALLIANCE LTD sales@gfa.uk.com www.gfa.uk.com ASSEMBLY STEP 5 Align three holes on the footstool round base(E) with footstool spindle (Gb), put the small metal plate (Gb) between them, then use three Allen screws(L) and three small washers(M) according to the holes location as diagram shown.
- Page 13 01291 645080 01291 645099 GLOBAL FURNITURE ALLIANCE LTD sales@gfa.uk.com www.gfa.uk.com ASSEMBLY STEP 6 All the assembly steps have been completed, please check if all the screws have been tighten enough before sitting down . Recliner Handle function - Twist clockwise to tighten the tilt tension OR twist counter clockwise to...
-
Page 14: Warranty
WARRANTY Thank you for purchasing a product from Global Furniture Alliance. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
