Summary of Contents for KUHN FA 392

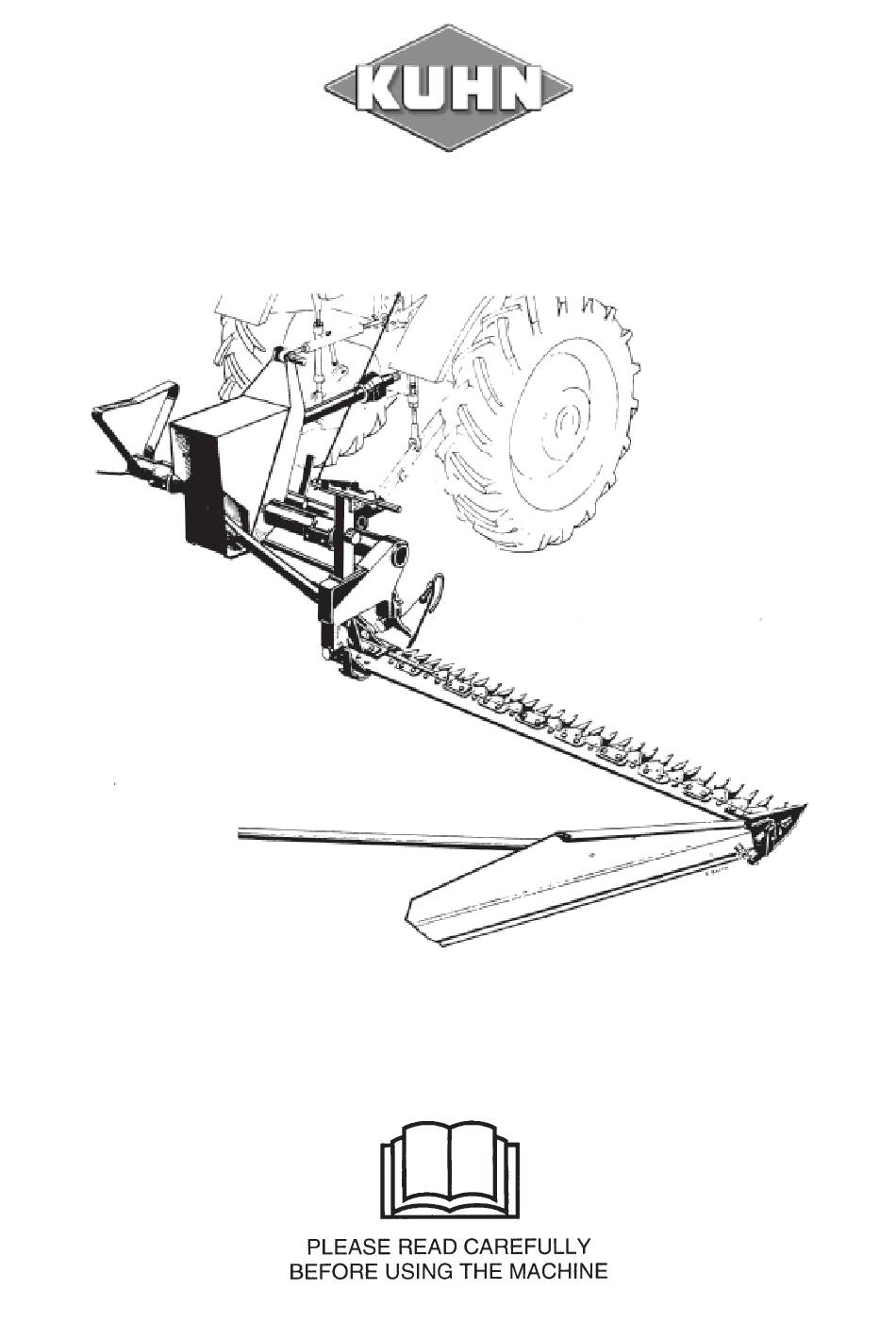

- Page 1 ASSEMBLY / OPERATOR'S MANUAL FA 392 REAR MOUNTED MOWER N° 95007 A.GB - 12.95...
- Page 2 DEAR OWNER, In buying a KUHN machine you have chosen wisely. Into it have gone years of thought, research and improvements. You will find, as have thousands of owners all over the world, that you have the best that engineering skill and actual field testing can produce. You have purchased a dependable machine, but only by proper care and operation can you expect to receive the performance and long service built into it.
-
Page 3: Table Of Contents
Contents Page Safety Safety decals Technical specifications Assembling cutterbar to the frame Safety breakback Fitting to the tractor Lowering the cutterbar and adjustments for work : 1. Lowering the cutterbar 2. Cutterbar lead adjustment 3. Cutterbar offsett adjustment 4. Lifting mechanism adjustment 5. -
Page 4: Safety
DESIGNATED USE OF THE MACHINE The FA 392 rear mounted mower must only be used for the work which it has been designed : mowing on the ground of hay fields, grass silage fields and improved pastures for the purpose of harvesting fodder for feeding livestock. - Page 5 GENERAL SAFETY RECOMMENDATIONS Before operating the machine, always ensure that tractor and machine are in accordance with work safety and road traffic regulations. BASIC PRINCIPLES 1. In addition to the recommendations given in this manual, legislation on work safety and accident prevention must also be respected.
- Page 6 19. Drive speed must be adapted to ground conditions as well as roads and paths. Always avoid abrupt changes of direction. 20. Precision steering, tractor adherence, road holding and efficient braking are influenced by the type of implement, weight, ballast of front axle, ground or road conditions. It is therefore of utmost importance to be cautious in every given situation.
- Page 7 POWER TAKE-OFF 1. Only use PTO shaft supplied with the machine or recommended by the manufacturer. 2. PTO guards must always be in place and in good condition. 3. Check for correct PTO overlap when at work and in transport. 4.
- Page 8 8. Spare parts used must be in accordance with specifications and standards as defined by the manufacturer. Use only genuine KUHN parts ! 9. Before any electric welding is carried out on tractor or attached machine, disconnect generator and battery terminals.
- Page 9 SPECIAL SAFETY RECOMMENDATIONS 1. Stay a safe distance away from the mower when discs are rotating. 2. Crushing and shearing zones which could cause serious bodily injury when changing the machine from transport to work position and vice versa may exist. To prevent possible injury, be extra careful when maneuvering and ensure that everyone is at a safe distance away from the machine.
-
Page 10: Safety Decals
SAFETY DECALS THE FOLLOWING SAFETY PICTORIALS HAVE BEEN PLACED ON YOUR MACHINE IN THE AREAS INDICATED. THEY ARE INTENDED FOR YOUR PERSONAL SAFETY AND FOR THE SAFETY OF THE PEOPLE WORKING WITH YOU. THE TEXT SHOWN ON THEM GIVES THEIR PRECISE MEANING. -
Page 11: Technical Specifications
- 9 -... -
Page 12: Assembling Cutterbar To The Frame
- 10 -... -
Page 13: Fitting To The Tractor
- 11 -... -
Page 14: Lowering The Cutterbar And Adjustments For Work
LOWERING THE CUTTERBAR AND ADJUSTMENTS FOR WORK 1. Lowering the cutterbar To lower the cutterbar from the transport position to the working position, first fit linchpin (D) into hole (H) and pull cord (X) to release latch (G). Then manually lower bar and remove knive guard. -
Page 15: Lifting Mechanism Adjustment
4. Lifting mechanism adjustment The mower can be raised by the tractor 3-point linkage. As the mower is raised, the cutterbar is automatically locked in the horizontal position. Adjustment to secure this horizontal position is made by set screw (V) which should always be secured by lock nut (E). -
Page 16: Belt Tension Adjustment
6. Belt tension adjustment First loosen the 4 screws (Y) which secure the pulley housing then loosen jam nut (T). Tighten belts using bolt (Z) until tension is sufficient to prevent belts from slipping during operation. Do not overtighten belts as they also act as a safety device and should slip in case the machine becomes blocked. - Page 17 ALWAYS DISCONNECT THE PTO SHAFT FROM THE TRACTOR PTO WHEN PUTTING THE MACHINE INTO THE TRANSPORT POSITION. When parking the machine, secure the triangular stand (B) on the left-hand side into the lower position with handle (V) as shown in the photo opposite. The mower can than be lowered on the tractor hydraulics where it can stand level while uncoupling from the tractor.
-
Page 18: Lubrication
- Every 3 hours of use the knife head ball joint. For protection against rust, use SHELL ENSIS 30 oil. To obtain maximum durability from KUHN machines, we recommend the use of SHELL LUBRICANTS. GENERAL MAINTENANCE - Regularly check tightness of nuts and bolts. -
Page 19: Cutterbar Maintenance And Adjustment
CUTTERBAR MAINTENANCE AND ADJUSTMENT A well guided knife and sharp sections are essential for a good cut. A blunt knife requires more power. It is preferable that the sections be sharpened using a blade sharpener though it is possible to use abrasive disc grinders. Wearing parts like knife guides, knife clips, wear plates or knife heads are made of heat treated steel and are very resistant to wear. - Page 20 3) KNIFE CLIPS (3) must be correctly fitted over the top of the raised section. Ensure they are not set at the back or at the front only, for that would increase the wear. Screw (V) can be adjusted to lower the knife clip and give good support to the knife on the surface of the finger (1).
-
Page 21: Accessories
2) HYDRAULIC CUTTERBAR LIFT (No. 100 60 50) The FA 392 can be fitted with an optional hydraulic cylinder to raise and lower the cutterbar. The hydraulic cylinder assembly (N) is fitted in place of the manual lifting rod and the hydraulic hose is connected to the tractor single acting outlet. -
Page 22: After-Sales Service
Your KUHN dealer will always be pleased to give you advice on our equipment. He maintains a stock of KUHN parts to give you good vervice. When ordering KUHN parts, always state : 1. Type of machine : FA 392 2. - Page 23 SOUND LEVELS Sound levels given out by : FA 392 rear mounted mower Sound levels have been measured in accordance with the measuring methods as defined in : HM Agricultural Inspectorate AGRICULTURAL MACHINERY NOISE Legislation and guidance on methods of testing...
-
Page 24: Limited Warranty
1. Normal maintenance such as greasing, maintenance of oil levels, minor adjustments, etc. 2. Transportation of any kind of any KUHN product to and from the place the warranty work is performed. 3. Dealer travel time to and from the machine or to deliver and return the machine from the workshop for repair. - Page 25 Company and have no right or authority to assume any obligation on their behalf, express implied, or to bind them in any way. KUHN S.A. reserves the right to incorporate any change in design in its products without obligation to make such changes on units previously manufactured.
- Page 26 - N O T E S -...
- Page 27 This machine complies with the safety requirements of the European machinery directive. The Operator should respect all Health and Safety regulations as well as the Highway Code. For your own safety, use only genuine KUHN spare parts. The manufacturer disclaims all responsibilities due to incorrect use or non-compliance with the...
- Page 28 KUHN parts KUHN S.A. 4 Impasse des Fabriques F - 67706 SAVERNE CEDEX (FRANCE) Tél. : + 33 (0) 3 88 01 81 00 - Fax : + 33 (0) 3 88 01 81 03 www.kuhnsa.com - E-mail : info@kuhnsa.com...
