Ver. 1.0
Dundalk LeisureCraft

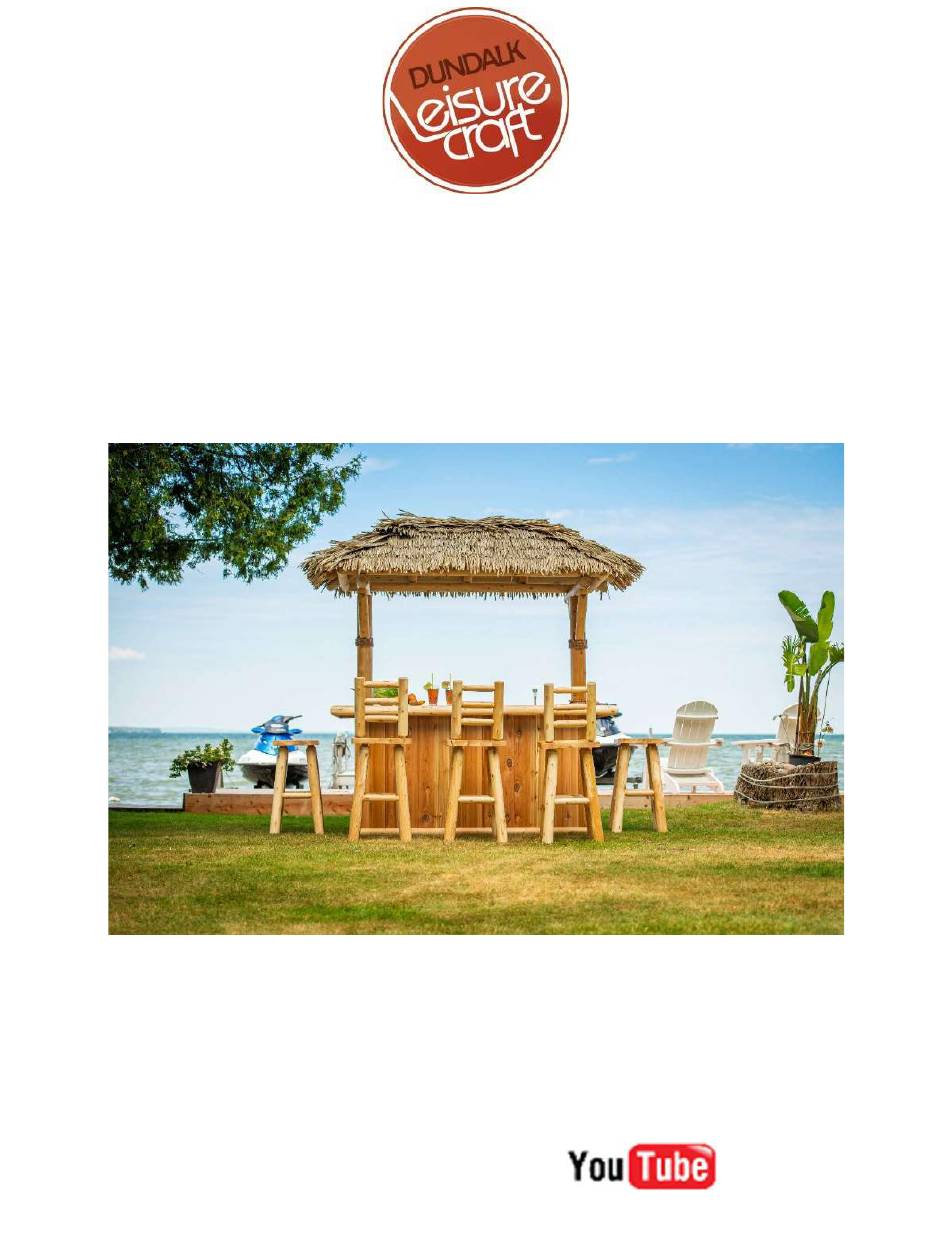

Tropical Paradise Tiki Bar
Assembly Instructions
Please read and understand the complete instructions prior to assembly and use of your outdoor leisure product. Customer agrees not to hold
Dundalk LeisureCraft Inc. and any of its authorized dealers liable for improper installation, maintenance and repair of this product
Requirements:
* 2 People (recommended)
* Staple Gun
* Cordless Drill (we supply the bit)
* Tape Measure
* Rubber Mallet
* Utility Knife
View the assembly process on
ph: 519-923-9813 | info@dundalkleisurecraft.com| web: www.dundalkleisurecraft.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dundalk LeisureCraft Tropical Paradise Tiki Bar
Summary of Contents for Dundalk LeisureCraft Tropical Paradise Tiki Bar
- Page 1 Please read and understand the complete instructions prior to assembly and use of your outdoor leisure product. Customer agrees not to hold Dundalk LeisureCraft Inc. and any of its authorized dealers liable for improper installation, maintenance and repair of this product...
- Page 2 Tropical Paradise Tiki Bar Assembly Instructions Organize your pieces neatly on the ground. Set up the front wall where the Tropical Paradise tiki bar will be placed. Slide one of the side wall pieces flush into the front wall. Holding the walls flush together, secure them using the provided 2 ½”...
- Page 3 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions Repeat this process for the other side wall piece. Place the bar top onto the assembled bottom base. * The bar top should “slip” over the assembled walls. If the roof option is chosen, secure the bar top to the base through the post holes.
- Page 4 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions Place the bar cabinet inside the base of the tiki bar. If no bar cabinet was chosen, skip the next 3 steps. Slide the bar cabinet tight to the front wall of the tiki bar.
- Page 5 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions Insert the bar posts into the holes on the top of the tiki bar. The posts should go into the holes so they sit tight to the tiki bar top. Lay the roof frame on a clean flat surface.
- Page 6 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions To make installation easier, pre place 3” (76mm) screws into the ends of the roof supports. Locate the roof cap assembly. With assistance from a helper, hold the corner roof support flush to the corner of the roof cap assembly.
- Page 7 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions Center the roof cap assembly on top of the roof frame. Screw the corners of the roof supports to the roof frame using 3” (76mm) screws. Ensure that the supports are centered on the corners.
- Page 8 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions Center 1 roof support on the end and secure as in the previous step. Repeat for the other end. Screw the bottoms of the roof supports to the roof frame using 3” (76mm) screws.
- Page 9 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions Starting on one of the sides, insert the shortest board up tight to the roof cap. Secure the roof boards into the roof supports with the provided 2” (51mm) screws. Continue adding the roof boards working around the roof assembly.
- Page 10 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions Gather up your synthetic palm thatch pieces. Place the thatch onto the roof with the synthetic palm leaves hanging over the bottom as in picture. Secure with staples Please note you are going to want to use a lot of staples to hold thatch pieces to the roof.
- Page 11 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions When you get to the end of the roof, cut off the excess thatch with a utility knife. Use the cut off piece to start the first row on the short side. Cut the excess off the corner in the same manner.
- Page 12 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions Take the cut corner pieces and fasten them to the corners with staples. This will cover up the corners of the thatch underneath. Fasten a row of thatch, then the cut corner pieces.
- Page 13 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions Use these cut pieces to cover the thatch at the top. Attach 2 more corner pieces at each end of the roof. Use cut corner pieces to make a ridge cap cover coming in from each end until they meet in the middle.
- Page 14 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions Overlap the 2 cut pieces back to back then secure into place with staples. Secure any loos thatch you may find with staples With a helper, place the roof up onto the bar posts.
- Page 15 Dundalk LeisureCraft Tropical Paradise Tiki Bar Assembly Instructions Congratulations on the assembly of your Dundalk Leisurecraft Tropical Paradise Tiki Bar! For assistance in the assembly of your Tiki Bar please visit our support page at: https://www.dundalkleisurecraft.com/support/ Or to view the assembly process got to: https://www.youtube.com/watch?v=-vwFM6YBRAg...
