HOLLAND HEATER
USER MANUAL

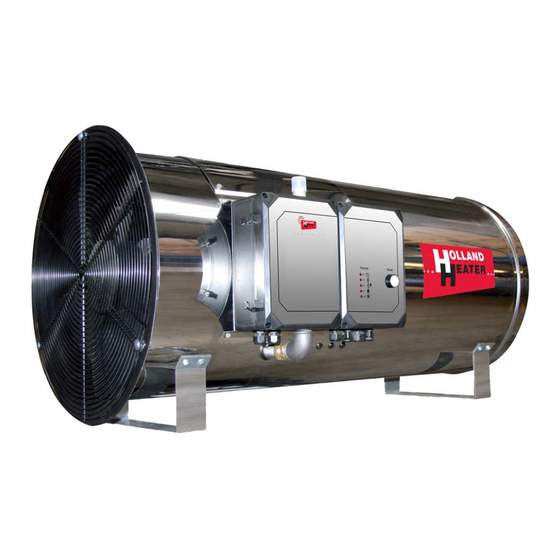

Air heater type HHB-40
HHB Air heater
May 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HHB-40 and is the answer not in the manual?

Questions and answers

Related Manuals for HOLLAND HEATER HHB-40

Summary of Contents for HOLLAND HEATER HHB-40

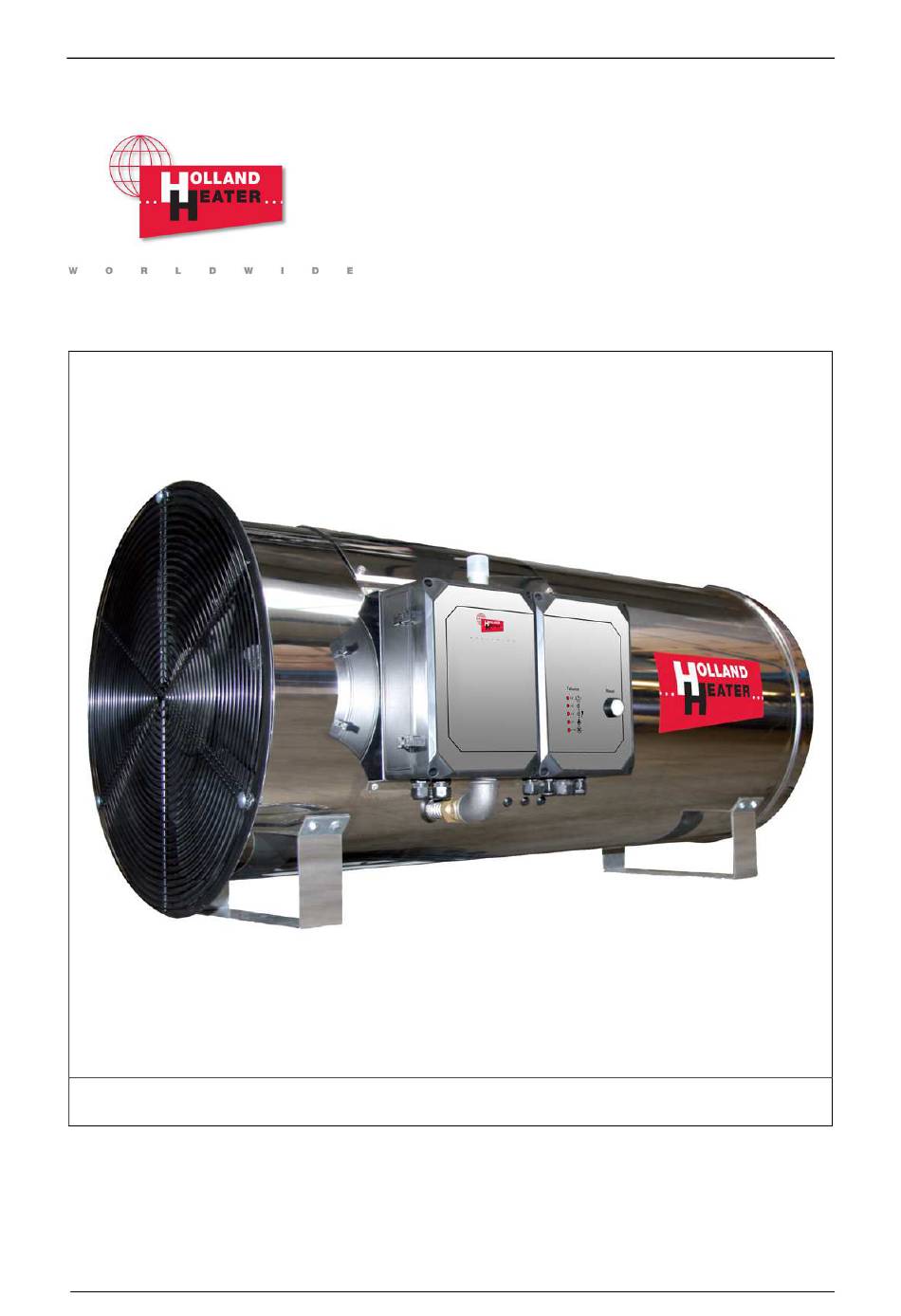

  • Page 1 HOLLAND HEATER USER MANUAL Air heater type HHB-40 HHB Air heater May 2013...
  • Page 2 HOLLAND HEATER USER MANUAL General HOLLAND HEATER Air heater HHB-40 Many thanks for your confidence in us! We are convinced that you will be satisfied! 0461BT0933 EC – declaration of conformity Certificate of Origin We hereby declare that the models and versions of the above-mentioned appliance, as launched onto the market by ourselves, comply with the European health and safety guidelines.

  • Page 3: Holland Heater

    Holland Heater. This similarly applies to the accompanying drawings and diagrams. Holland Heater reserves the right to change parts at any time, without informing the consumer either directly or prior to doing so. The content of this manual is also subject to change, without prior notification.

  • Page 4: Table Of Contents

    HOLLAND HEATER USER MANUAL General GENERAL MANUAL Holland Heater ......................3 General ........................5 Foreword ........................5 Pictograms and symbols ................... 6 Service and technical support ................... 6 Warranty provisions ....................6 Identification of the air heater ..................7 Ordering parts ......................7 Safety regulations and hazard warnings...............

  • Page 5: General

    Holland Heater B.V. shall not be held liable for any damages or injuries arising as a result of failure to comply with the instructions provided within this manual.

  • Page 6: Pictograms And Symbols

    2.4 Warranty provisions The sales and warranty provisions applicable to the air heater, as per the Metaalunie conditions, form part of the terms and conditions of delivery. Holland Heater is registered with the Haaglanden Chamber of Commerce under number 27226471. April 2012...

  • Page 7: Identification Of The Air Heater

    HOLLAND HEATER USER MANUAL General 2.5 Identification of the air heater The identification plate of your air heater is fixed to the appliance. This lists the correct information for the air heater supplied. The figure below shows an example of a possible identification plate.

  • Page 8: Safety Regulations And Hazard Warnings

    HOLLAND HEATER USER MANUAL General Safety regulations and hazard warnings 3.1 General • The manufacturer accepts no liability for damage or injury arising as a result of failure to comply (strictly) with the safety regulations and instructions in this document, or as a result of carelessness during installation, use or maintenance of the appliance indicated on the cover of this document or any accompanying accessories.

  • Page 9: Intended Use

    HOLLAND HEATER USER MANUAL General 3.5 Intended use* • The air heater has been designed for the purpose of heating poultry and livestock houses. Without ventilation, the dimensions of the room should total at least 200m /h gas consumption. •...

  • Page 10: Technical Specifications

    HOLLAND HEATER USER MANUAL For authorised persons Technical specifications HHB-40 Description: Unit: Value: Unit: Value: Nominal load at upper limit 136.136 Gas consumption natural gas (L-gas, 15°C) /hour Gas consumption propane kg/hour Natural gas injector 8 x ø 2,1 Inch 10 x ø...

  • Page 11: Safety Devices

    HOLLAND HEATER USER MANUAL For authorised persons 4.1 Safety devices • All safety devices must be fitted correctly and may only be removed by trained and authorised service technicians for the purpose of maintenance and repair works. • The air heater must never be used when the safety devices are not complete or are not fitted or if the devices have been turned off or rendered inoperative.

  • Page 12: Installation

    HOLLAND HEATER USER MANUAL For authorised persons Installation 5.1 Gas connection Pursuant to NEN 1078 and NEN 3324, the connection of the gas supply must be carried out by qualified personnel. It is also essential that the site regulations are observed.
  • Page 13 Y Y Y Y Yellow Type: HHB-40, 70, 100 and 120 Voltage 230 V 50 Hz Holland Heater Holland Heater Holland Heater Holland Heater Fig. 5.2-2 Circuit and wiring diagram HHB-40, 70, 100 and 120 HHB Air heater April 2012...

  • Page 14: General Points

    HOLLAND HEATER USER MANUAL For authorised persons 5.3 General points The air heater must be suspended horizontally. Ensure the air heater is protected from rain, leaks, etc. Figure 5.3-1 shows how the air heater should be installed and positioned. Under no circumstances must hoses and/or ducts be mounted on the sides where the inlet and outlet are located.

  • Page 15: Operation

    Operation 6.1 General functioning The Holland Heater Broiler heater is a direct gas-fired air heater, which means that the flue gases formed through the combustion of gas are fed directly into the air to be warmed. The major benefit of this is that it maximises the efficiency of the heating (all of the heat is utilised effectively, as a result of which 100% efficiency is achieved).

  • Page 16: Operation

    HOLLAND HEATER USER MANUAL For authorised persons The gas is injected into the cone through a radial nozzle (9). The rotating gas / air mixture generated as a result of this is ignited by means of a high voltage spark. The rotating flame provides a stable, blue and compact combustion, with low NOx and CO emissions.
  • Page 17 HOLLAND HEATER USER MANUAL For authorised persons The gas is now injected into the combustion chamber via the nozzle and is ignited. The burner relay (40) now checks whether a stable flame is formed within three seconds of the gas valve opening. If a stable flame does not form, the burner relay allows the system to restart twice more before generating a fault (freezing).
  • Page 18 HOLLAND HEATER USER MANUAL For authorised persons Fig. 6.2-3 Operation of selector switch The selector switch has the following positions: 0 = Off 1 = Automatic heating / automatic ventilation* 2 = Continuous heating 3 = Continuous ventilation When the air heater is set to automatic ventilation (position 1), it must first be set to idle for 30 seconds before it can be set to automatic heating.

  • Page 19: Introduction

    HOLLAND HEATER USER MANUAL For authorised persons 6.3 Introduction The air heater may only be used by authorised persons, as specified previously in sections 5.1 and 5.2. Once the air heater is connected according to the directions specified in sections 4 and 5, it is essential that the following points are checked prior to first using the appliance: •...
  • Page 20 HOLLAND HEATER USER MANUAL For authorised persons A manometer can be used to check the supply pressure and the burner pressure and to compare these with the values shown in annexe A. You can do this by turning the screw in the measuring nipple (31.1 and 31.3) one quarter, using an appropriate, short screwdriver.

  • Page 21: Maintenance

    HOLLAND HEATER USER MANUAL For authorised persons Maintenance Always remove the plug from the wall socket and shut off the gas supply when carrying out work on the appliance. Note! The air heater is phase-sensitive. In order for the air heater to function, it is essential that the plug is reinserted into the wall socket in the correct manner.

  • Page 22: Conversion To Another Gas Type

    HOLLAND HEATER USER MANUAL For authorised persons Conversion to another gas type If necessary, the HHB air heater can be easily converted from natural gas to propane, butane or LPG or vice versa. The air heater may only be converted to a different type of gas by a person authorised to do so.
  • Page 23 HOLLAND HEATER USER MANUAL For authorised persons The differences between the natural gas and propane/butane nozzle are shown in the figure 8-2 below. The mounting plate for the natural gas nozzle is equipped with holes, whilst the nozzle for the propane/butane nozzle is equipped with rectangular slots. Furthermore, the diameter of the injection holes depends on the HHB type.

  • Page 24: Troubleshooting

    HOLLAND HEATER USER MANUAL For authorised persons Troubleshooting 9.1 General When resolving malfunctions, it is recommended that you always check first whether: • The appliance is connected to the correct voltage 240 V +/- 10%. Problems can arise if there is no connection to the mains voltage or if the mains voltage is too low.

  • Page 25: Burner Relay Status Indicator

    HOLLAND HEATER USER MANUAL For authorised persons 9.3 Burner relay status indicator During normal operation, the various operating statuses are indicated in the form of colour codes, as shown in the colour coding table below. During start-up, the status is indicated as shown in the following table.

  • Page 26: Burner Relay Malfunction Indicator

    HOLLAND HEATER USER MANUAL For authorised persons 9.4 Burner relay malfunction indicator After the appliance has frozen, the red error signalling lamp on the top of the box will remain lit continuously. In this situation, the visual diagnosis of the cause of the malfunction according to the error code table can be activated by holding down the reset button for 3 seconds.

  • Page 27: Malfunctions And Potential Solutions

    HOLLAND HEATER USER MANUAL For authorised persons 9.5 Malfunctions and potential solutions Malfunction : The air heater does not start, even when started manually. • Possible cause: The plug is not in the wall socket. • No mains voltage. •...
  • Page 28 HOLLAND HEATER USER MANUAL For authorised persons • Remove any dirt from the grille in front of the fan. • Check that all electrical components are working correctly. Malfunction : The air heater starts correctly, but does not ignite. Gas is however being released.

  • Page 29: Technical Support

    HOLLAND HEATER USER MANUAL For authorised persons Malfunction : The appliance starts up, but does not ignite and there is no gas. The fan rotates however (Error code 5 or 10). • Possible cause: Fan rotates too slowly and does not turn on the vane.

  • Page 30: Annexes

    HOLLAND HEATER USER MANUAL For authorised persons 10 Annexes Annexe A – Gas pressures for different types of gas The burner pressure is dependent on the calorific value and the density of the gas. In order to establish a direct connection to the required burner pressure, the so-called Wobbe index has been introduced.
  • Page 31 HOLLAND HEATER USER MANUAL For authorised persons Annexe B - Electrical diagram HHB Yellow Phase 230 Volt Room thermostat* Maximum thermostat 10 Amp limit switch 10 Amp safety Selector switch Ignition transformer Alarm lamp Gas block Vane switch Ionisation pin...
  • Page 32 HOLLAND HEATER USER MANUAL For authorised persons Holland Heater Oud Camp 5 3155 DL Maasland The Netherlands Telephone: +31 (0)174 – 516741 Fax: +31 (0)174 – 518021 E-mail info@hollandheater.nl April 2012 HHB Air heater...
