Installation Instructions for 2015-2018 Challenger Front LED Sidemarker Lights

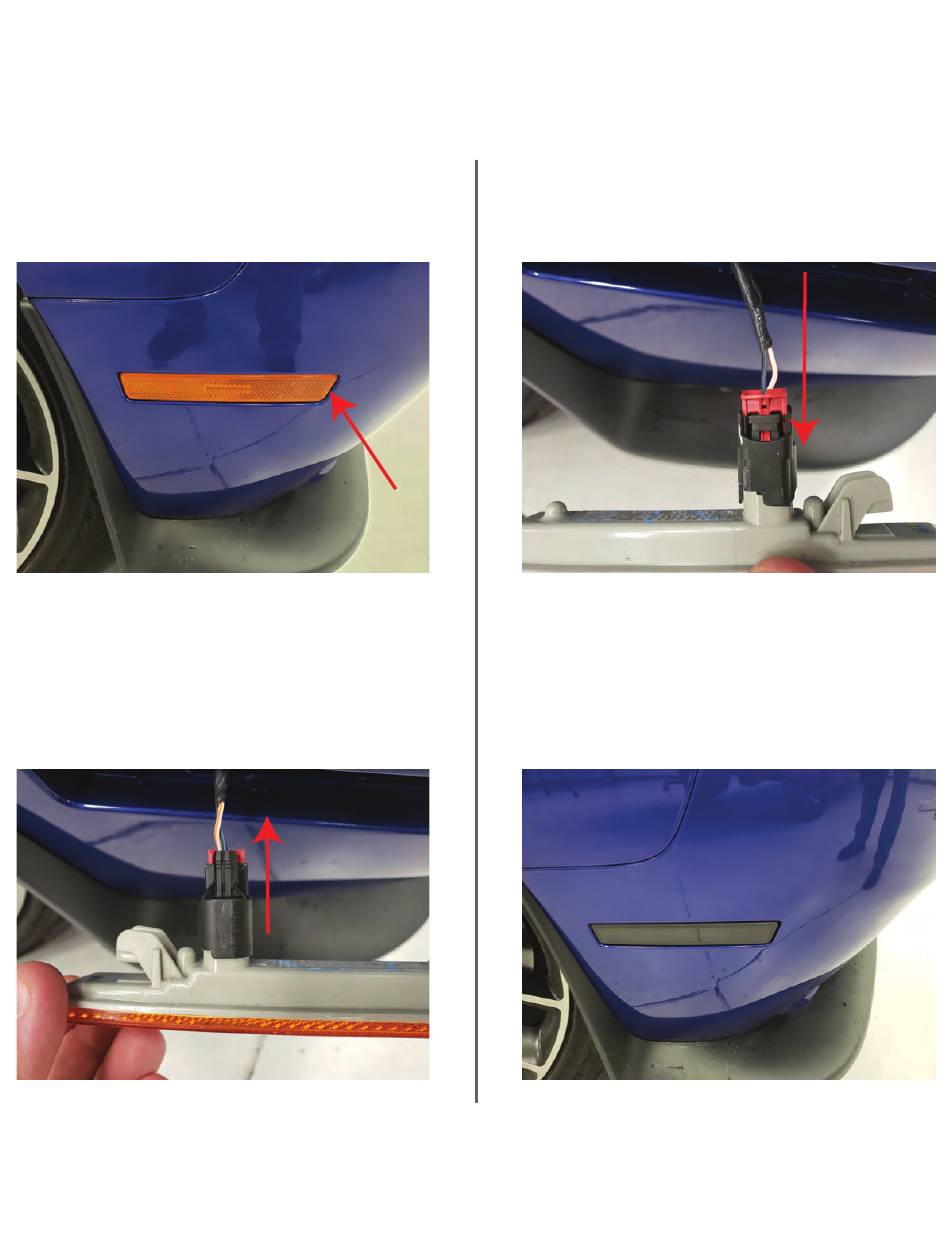

Using a trim panel removal tool, carefully pry between the
front sidemarker light and the bumper to release the clip.
Slide the sidemarker light out to remove from the bumper.
Unlock the red retaining clip, press and release the factory
wiring connector from the factory light.
Connect the factory sidemarker connector into the new
light, and push in the red tab to secure.
Insert the locating tab into the bumper, and then carefully
press the light until it clicks into place securing it to the
bumper.
CH3215
CH3216
