Wiring

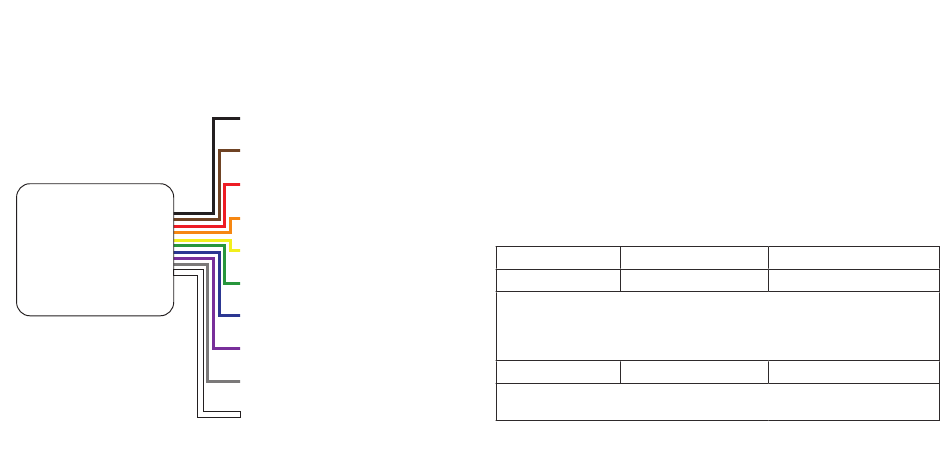

Set up your Universal module according to this schematic. Use
relay 1 before relay 2 if possible.
4
Ground
Power output: 12-24v DC 1amp
Relay 2: Normally open
Relay 2: Common
Relay 2: Normally closed
Relay 1: Normally open
Relay 1: Common
Relay 1: Normally closed
Power input: 12-24v DC 1amp
Ground
Click commands
You can configure the Universal Module via the button found in
the small hole on the module. When you get to the setting you
want, wait for 5 seconds and the Universal Module will react. If you
make a wrong number of clicks, just stop at an unmarked number
of clicks and wait for 5 seconds. The LED will flash red.
Clicks Color
1 Green
This command is for setting up the Universal Module with a smart home gateway
such as Z-Wave or ZigBee (not HomeKit). The Universal Module will respond by
blinking green. Now the module is in ex/inclusion mode and you have 30 seconds to
pair or unpair it with a gateway.
10 Red
Deletes all settings and all keys on the Universal Module. The Universal Module will
respond by blinking red.
Activity
Inclusion mode
Reset the Danalock
5
