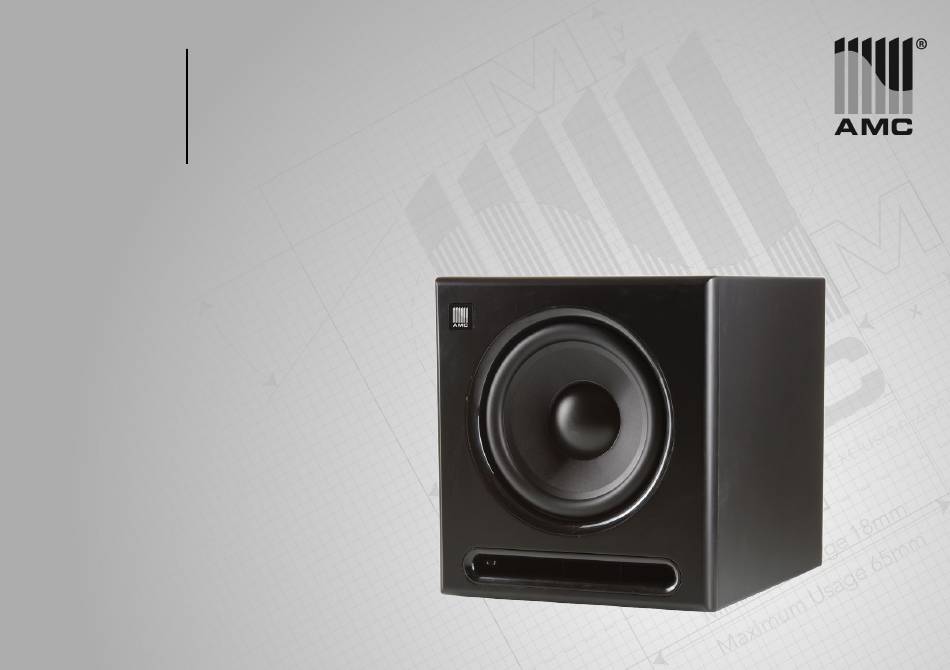

- Page 1 User SUB 2 Manual Active Subwoofer...
- Page 2 ON. When the power switch is turned ON, the main power is turned ON.The only operation to disconnect the power supply from the grid, unplug the power cord. USER MANUAL SUB 2 Active subwoofer...
- Page 3 Table of contents Before you start Introduction ..............................2 Features ................................2 Operation Rear panel................................3 Rear panel functions ...........................4 Specifications General specifications ..........................5 USER MANUAL SUB 2 Active subwoofer...
- Page 4 Before you start SUB 2 is an active subwoofer for public address and home installations. It features front mounted 10” driver. 200 W power amplifier with built-in limiter, 20 Hz - 130 Hz frequency response, crossover, volume and phase control and a ground lift switch.
- Page 5 Operation Rear Panel 1. Volume control 2. Crossover control 3. Phase control | 4. Line level signal input (RCA) | 5. Line level signal output (RCA) | 6. Balanced line level signal input (TRS) | 7. Balanced line level signal inputs and outputs (XLR) | 8. Ground lift switch 9. Power switch 10. Mains lead socket and fuse USER MANUAL SUB 2 Active subwoofer...
- Page 6 POWER SWITCH Turns subwoofer ON or OFF MAIN POWER SOCKED AND FUSE Power connector for mains power, combined with fuse holder. Use only the same type of fuse that is written on the device. USER MANUAL SUB 2 Active subwoofer...
- Page 7 General Specifications SUB 2 active subwoofer Power supply AC 230 V, 50 Hz Rated power 200 W Frequency response 20 Hz - 130 Hz Crossover point 50 Hz - 130 Hz Driver dimensions 10” (254 mm) Input gain control - 6 dBu - +3 dBu Input impedance 10 k Ω...
