- Page 1 RTK Base Station User Guide Revision Date: 2019-08-29...
- Page 2 Table of Contents System description Setup and assembly Operation Manual entry of base coordinates Use with PHX...

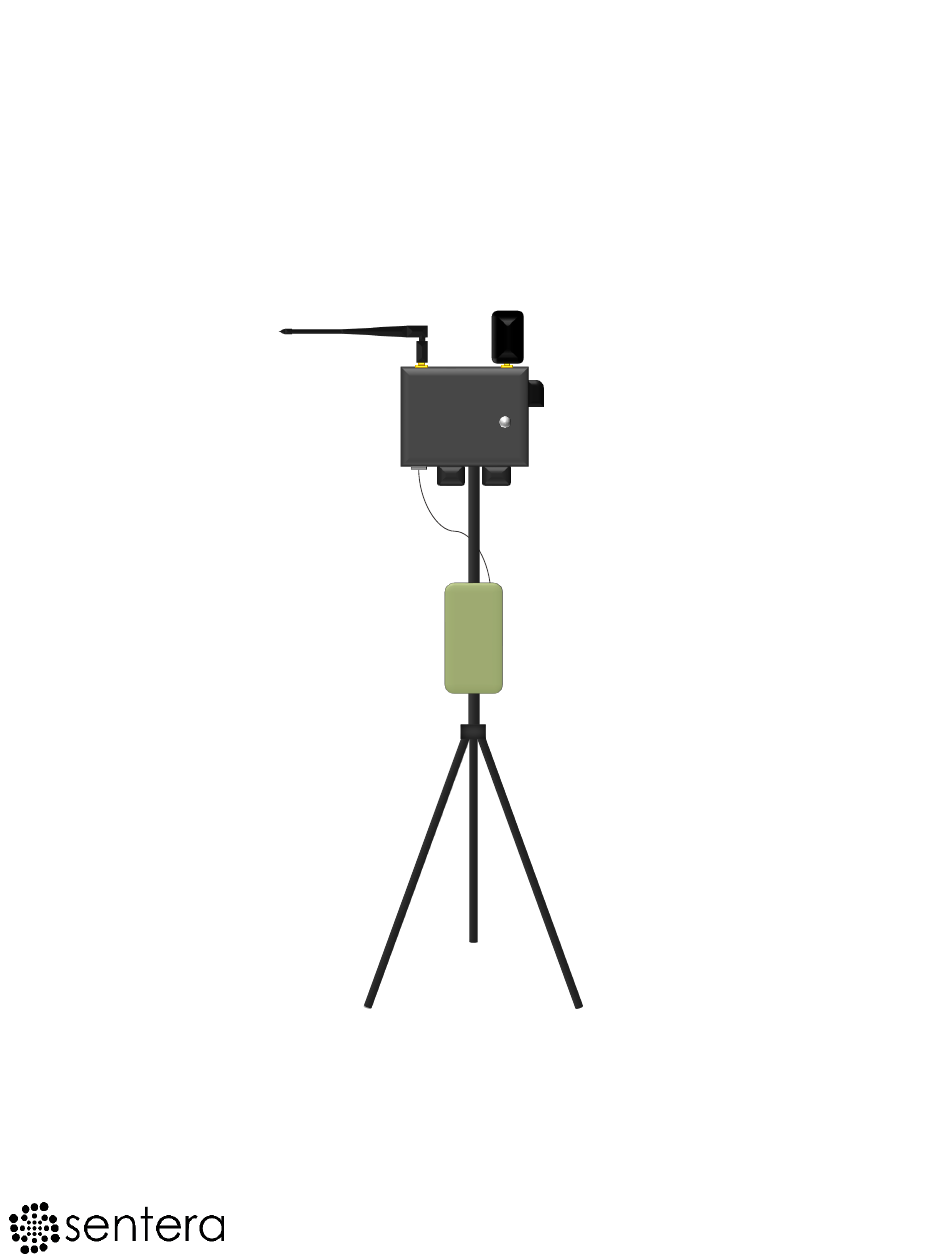

- Page 3 System Description The RTK Base Station operates using a dual frequency multi- constellation GNSS module, a 900 MHz telemetry link, and a 2 port Ethernet switch for real time correction message forwarding. Main Unit Dual frequency GPS Antenna 900 MHz Antenna...
- Page 4 Setup and Assembly Remove the tripod, fully extend, and lock the legs. Mount the main unit to the tripod. Attach the GPS antenna to the connector on the top of the main unit labeled GPS. Turn until finger tight. Attach the 900MHz antenna to the connector on the top of the main unit label 900 MHz.
- Page 5 Operation Power Power the system ON/OFF using the switch on the battery so that the “I” (on) or “0” (off) symbol is depressed. Auto-Survey Powering the base station on will automatically start the auto- survey feature. Do not move the base station during operation. The status LED will indicate auto survey progress using the following light codes: •...
- Page 6 Manual entry of base coordinates The RTK base station is capable of using manually entered coordinates as the base station location. Perform the following steps to use this functionality: 1. Change your computer’s ethernet adapter to a static IP address of 192.168.143.42 and set the subnet mask to 255.255.255.0.
- Page 7 Additional Setup Using standard Ethernet cables: 1) Connect your PHX CommsBox to an Ethernet jack on the base station. Power on both the CommsBox and RTK base station. 2) Connect your laptop to the other Ethernet jack on the base...
