Summary of Contents for ABACO MACHINES AWT7523C

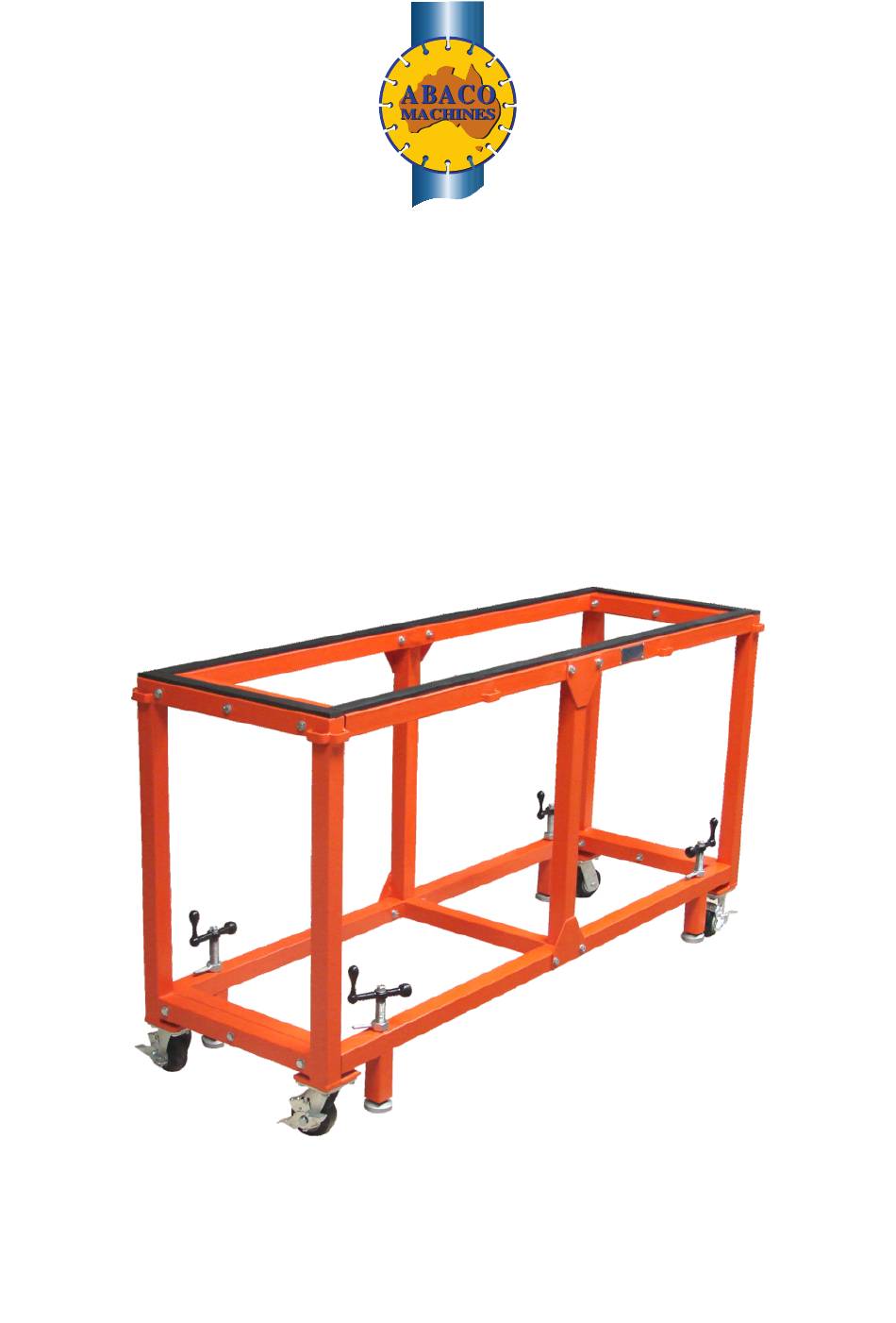

- Page 1 ABACO MACHINES OPERATION MANUAL ABACO WORKING TABLE (AWT7523C) ABACO MACHINES (USA) 14508 S. Garfield Ave., Paramount, CA 90723, USA Tel : 310-532-0366 Fax : 310-532-0499 Email : sales@abacomachines.com Website : www.abacomachines.com...
- Page 3 OPERATION MANUAL APPLICABLE MODEL of this WORKING TABLE: AWT7523C ABACO MACHINES AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved...
-
Page 4: Table Of Contents
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved... -
Page 5: Equipment General Information
I. EQUIPMENT GENERAL INFORMATION: - Working Table (AWT7523C) is used to put the stone slab for grinding, polishing and drilling. - Linking hooks are designed to create multi-way table layout arrangements by combination of single tables. (Refer to page 7.) - Rubber-lined table protects stone slabs from scratches or damages. -
Page 6: Spare Part List
AWT7523C-14 Circlip Ø12 AWT7523C-15 Right Frame AWT7523C-16 Rubber pad 1 AWT7523C-17 Washer Ø10xØ20x1.5 AWT7523C-18 Rubber pad 2 AWT7523C-19 Swivel caster AWT7523C-20 Bolt M10x20 AWT7523C-21 Spring washer Ø10 AWT7523C-22 Washer Ø10xØ20x2 AWT7523C-23 AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved... - Page 7 2) Spare part list: Center Support Bar (sold separately) can be attached if required. AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved...
-
Page 8: Safety Instructions
- Clean the Working Table thoroughly after each use. - Store in a well-ventilated place, avoid places with high heat or humidity. Note: See Maintenance Instructions section in this manual for more details. AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved... -
Page 9: Device Usage
2) Device usage: Step 1: Lock four swivel casters (Figure 1.1). Figure 1.1 Step 2: Place the stone slab on the table (Figure 2.1). Stone slab Figure 2.1 AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved... - Page 10 Note: To adjust the stone slab surface even, loosen the locking nut and rotate the height adjuster handle clockwise (Figure 2.2). Height adjuster handle Locking nut Figure 2.2 Stone slab Before After AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved...
-
Page 11: Appendix
IV. APPENDIX: Various ways to layout/display the Working Table. Linking hook AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved... -
Page 12: Technical Problems & Solutions
- Store this equipment in a well-ventilated place (dry and cool), avoid places with high heat and/or humidity. - Keep maintenance records to ensure safety checks are carried out. AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved... -
Page 13: Warranty Policy
- Aftermarket or none genuine spare parts were used for repair installation. - Modification and repair installations were conducted by uncertified individual. AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved... -
Page 14: Warranty Certificate
EXCLUSIONS Warranty does not apply for damages or failures caused Misuses, errors in transportation, incorrect handling or failing to maintain the equipment appropriately. Use of non-genuine parts/accessories, or of incorrect specs. AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved... - Page 15 THIS MANUAL SHALL BE REVISED WITHOUT PRIOR NOTICE All Rights Reserved: FOR IMPROVEMENT PURPOSES Abaco Machines USA, Inc. DO NOT COPY AND/OR QUOTE THE CONTENTS WITHOUT PRIOR WRITTEN CONSENT OF ABACO MACHINES USA, Inc.
