ADC ClearGain Dual Inline TMAs Specification Sheet page 4

ClearGain
Americas

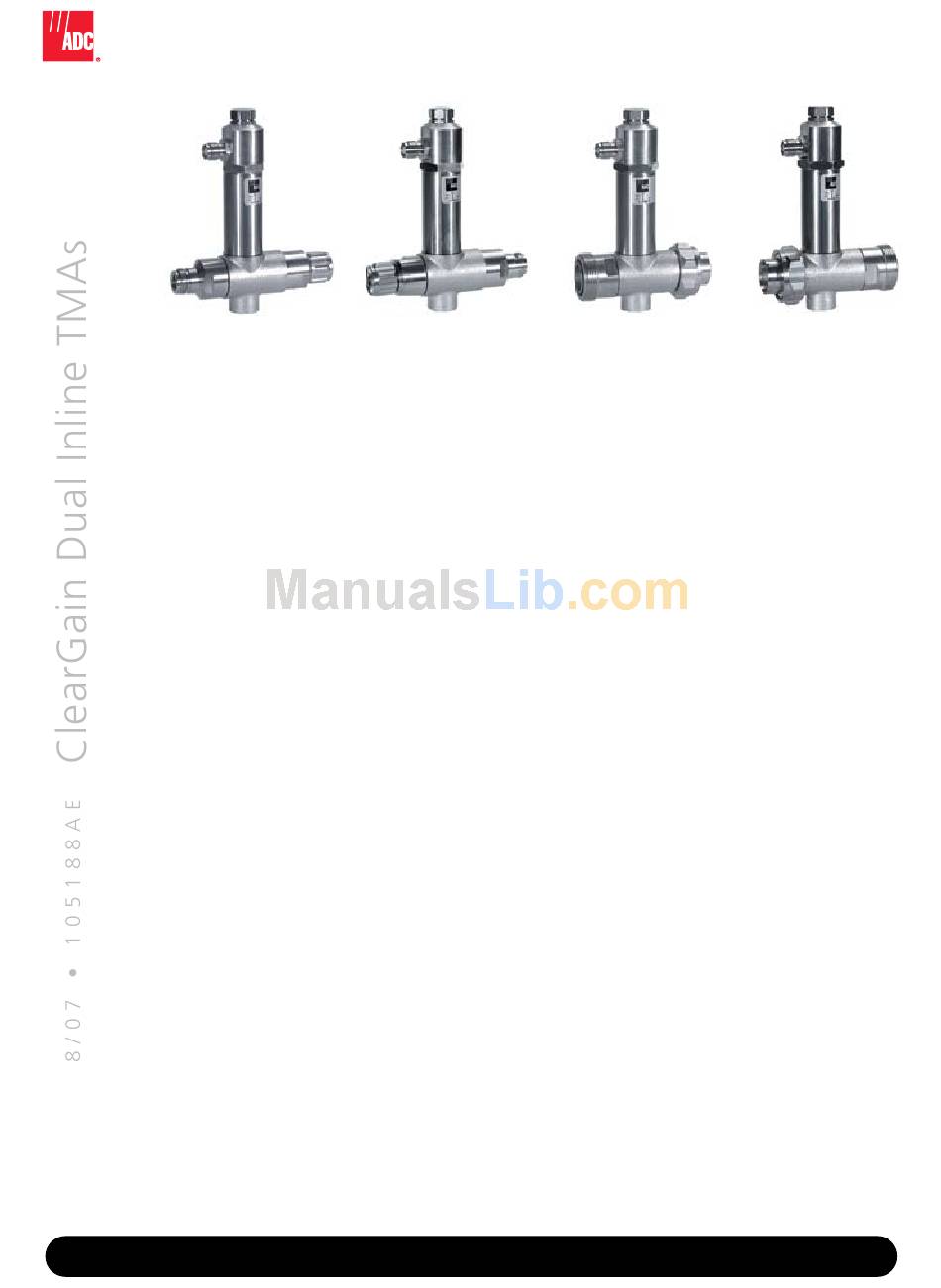

STRB-NF-NM-G-KIT
Bias-T Units
ADC's newly enhanced Bias-T Units can be used indoors and outdoors in conjunction with the ClearGain
power distribution unit (PDU). These versatile units, also known as DC current injectors, insert DC power
into the coaxial cable and extract alarm and monitoring signals from the coaxial cable.
PRODUCT CONFIGURATION
Main path connectors:
DC injection/Sample port connector:
Mounting and grounding:
TECHNICAL DATA
Impedance:
Frequency range:
Return loss:
Insertion loss:
RF CW power:
PIM 3rd order:
Surge current handling capability:
Operating temperature:
Waterproof degree:
DC injection / DC bypass current:
DC supply / DC bypass voltage:
MTBF:
Size:
Weight:
