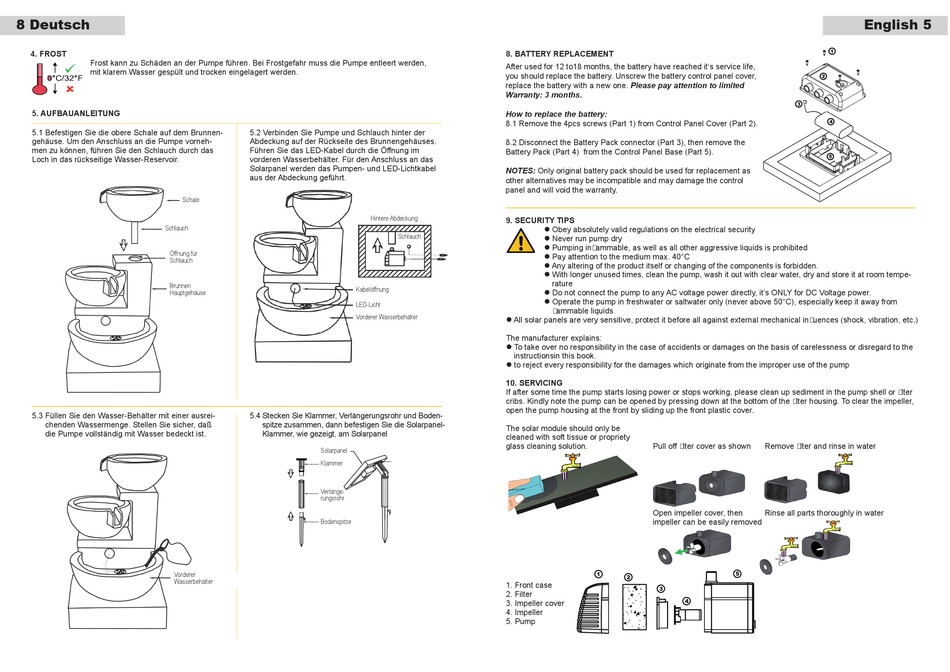

Battery Replacement; Security Tips; Servicing - Profi-pumpe SOLAR CASCADE Operating Instructions Manual

8 Deutsch
4. FROST
Frost kann zu Schäden an der Pumpe führen. Bei Frostgefahr muss die Pumpe entleert werden,
mit klarem Wasser gespült und trocken eingelagert werden.
5. AUFBAUANLEITUNG
5.1 Befestigen Sie die obere Schale auf dem Brunnen-
gehäuse. Um den Anschluss an die Pumpe vorneh-
men zu können, führen Sie den Schlauch durch das
Loch in das rückseitige Wasser-Reservoir.
Schale
Schlauch
Öffnung für
Schlauch
Brunnen
Hauptgehäuse
5.3 Füllen Sie den Wasser-Behälter mit einer ausrei-
chenden Wassermenge. Stellen Sie sicher, daß
die Pumpe vollständig mit Wasser bedeckt ist.
Vorderer
Wasserbehälter
5.2 Verbinden Sie Pumpe und Schlauch hinter der
Abdeckung auf der Rückseite des Brunnengehäuses.
Führen Sie das LED-Kabel durch die Öffnung im
vorderen Wasserbehälter. Für den Anschluss an das
Solarpanel werden das Pumpen- und LED-Lichtkabel
aus der Abdeckung geführt.
Hintere Abdeckung
Schlauch
Kabelöffnung
LED-Licht
Vorderer Wasserbehälter
5.4 Stecken Sie Klammer, Verlängerungsrohr und Boden-
spitze zusammen, dann befestigen Sie die Solarpanel-
Klammer, wie gezeigt, am Solarpanel
Solarpanel
Klammer
Verlänge-
rungsrohr
Bodenspitze

8. BATTERY REPLACEMENT

After used for 12 to18 months, the battery have reached it's service life,
you should replace the battery. Unscrew the battery control panel cover,
replace the battery with a new one. Please pay attention to limited
Warranty: 3 months.
How to replace the battery:
8.1 Remove the 4pcs screws (Part 1) from Control Panel Cover (Part 2).
8.2 Disconnect the Battery Pack connector (Part 3), then remove the
Battery Pack (Part 4) from the Control Panel Base (Part 5).
NOTES: Only original battery pack should be used for replacement as
other alternatives may be incompatible and may damage the control
panel and will void the warranty.

9. SECURITY TIPS

 Obey absolutely valid regulations on the electrical security
 Never run pump dry
 Pumping in ammable, as well as all other aggressive liquids is prohibited
 Pay attention to the medium max. 40°C
 Any altering of the product itself or changing of the components is forbidden.
 With longer unused times, clean the pump, wash it out with clear water, dry and store it at room tempe-
rature
 Do not connect the pump to any AC voltage power directly, it's ONLY for DC Voltage power.
 Operate the pump in freshwater or saltwater only (never above 50°C), especially keep it away from
ammable liquids.
 All solar panels are very sensitive, protect it before all against external mechanical in uences (shock, vibration, etc.)
The manufacturer explains:
 To take over no responsibility in the case of accidents or damages on the basis of carelessness or disregard to the
instructionsin this book.
 to reject every responsibility for the damages which originate from the improper use of the pump

10. SERVICING

If after some time the pump starts losing power or stops working, please clean up sediment in the pump shell or lter
cribs. Kindly note the pump can be opened by pressing down at the bottom of the lter housing. To clear the impeller,
open the pump housing at the front by sliding up the front plastic cover.
The solar module should only be
cleaned with soft tissue or propriety
glass cleaning solution. Pull off lter cover as shown
O p e n i m p
i m p l l e r e c
1. Front case
2. Filter
3. Impeller cover
4. Impeller
5. Pump
English 5
Remove lter and rinse in water
l l e r e c o v e , r h t e n R n i s e l l a p r a s t h t o o r u g h y l n i w
a n b e e a s y l i e r m o v e d
t a r e
