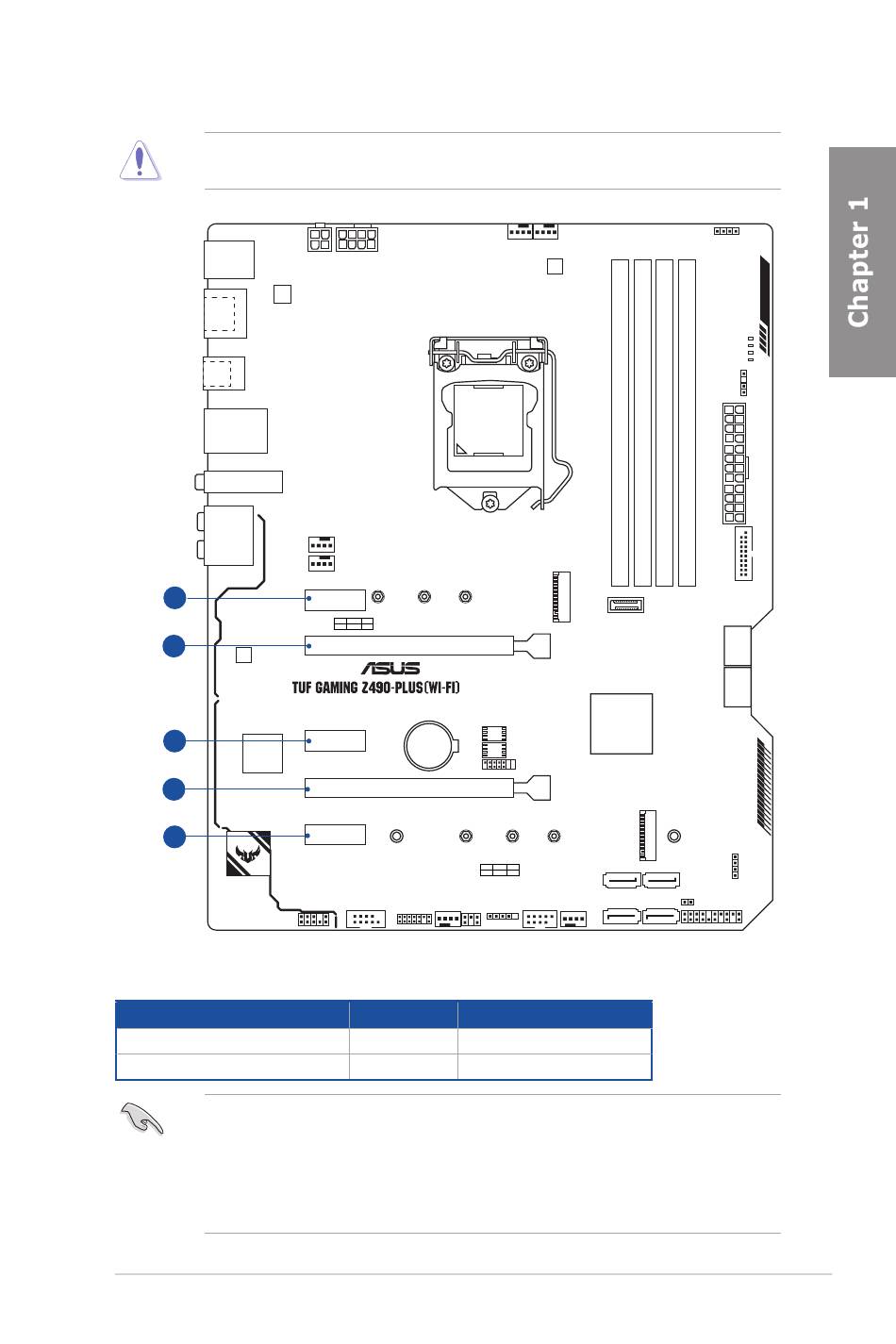

Expansion slots
Unplug the power cord before adding or removing expansion cards. Failure to do so may
cause you physical injury and damage motherboard components.
1
2
3
4
5
Recommended VGA configuration
Slot Description
2.
PCIe 3.0 x16_1
4.
PCIe 3.0 x16_2
•
We recommend that you provide sufficient power when running CrossFireX™ mode.
•
Ensure to connect the 8-pin and 4-pin power plugs when running CrossFireX™
mode.
•
Connect a chassis fan to the chassis fan connectors when using multiple graphics
cards for better thermal environment.
TUF GAMING Z490-PLUS (WI-FI)
PCIEX1_1
PCIEX16_1
®
PCIEX1_2
PCIEX16_2
PCIEX1_3
Single VGA
x16
-
Dual VGA
x16
x4
1-7
