Novus NVB-5020JB User Manual

N V B - 5 0 2 0 J B u s e r 's m a n u a l

1. MAIN CHARACTERISTICS

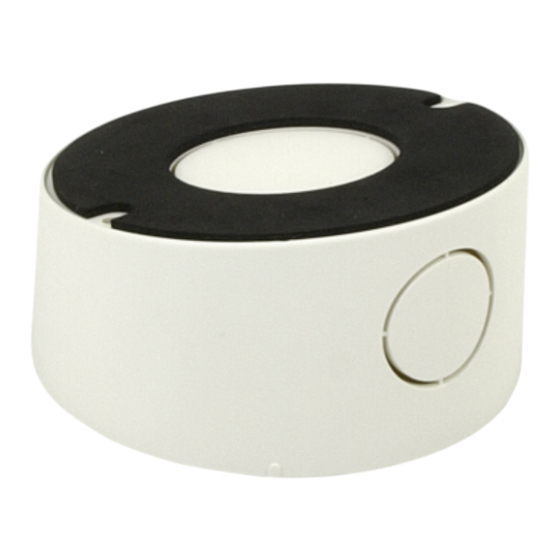

NVB-5020JB Wall/ceiling internal/external mount bracket designed for: NVIP-1DN5000V/IR-1P,
NVIP-1DN5001V/IRH-1P, NVIP-2DN5000V/IR-1P, NVIP-2DN5001V/IRH-1P NVIP-3DN5000V/IR-1P,
NVIP-3DN5001V/IRH-1P

2. PACKAGE CONTENT

Package contains: mount bracket, accessories bag, mounting template, user's manual
If the equipment has been damaged during transport or is incomplete, the contents of the package should be
packed back to the original box. Contact the local NOVUS distributor for further assistance.

3. SPECIFICATIONS

Weight 52 g

4. MOUNTING THE ADAPTOR

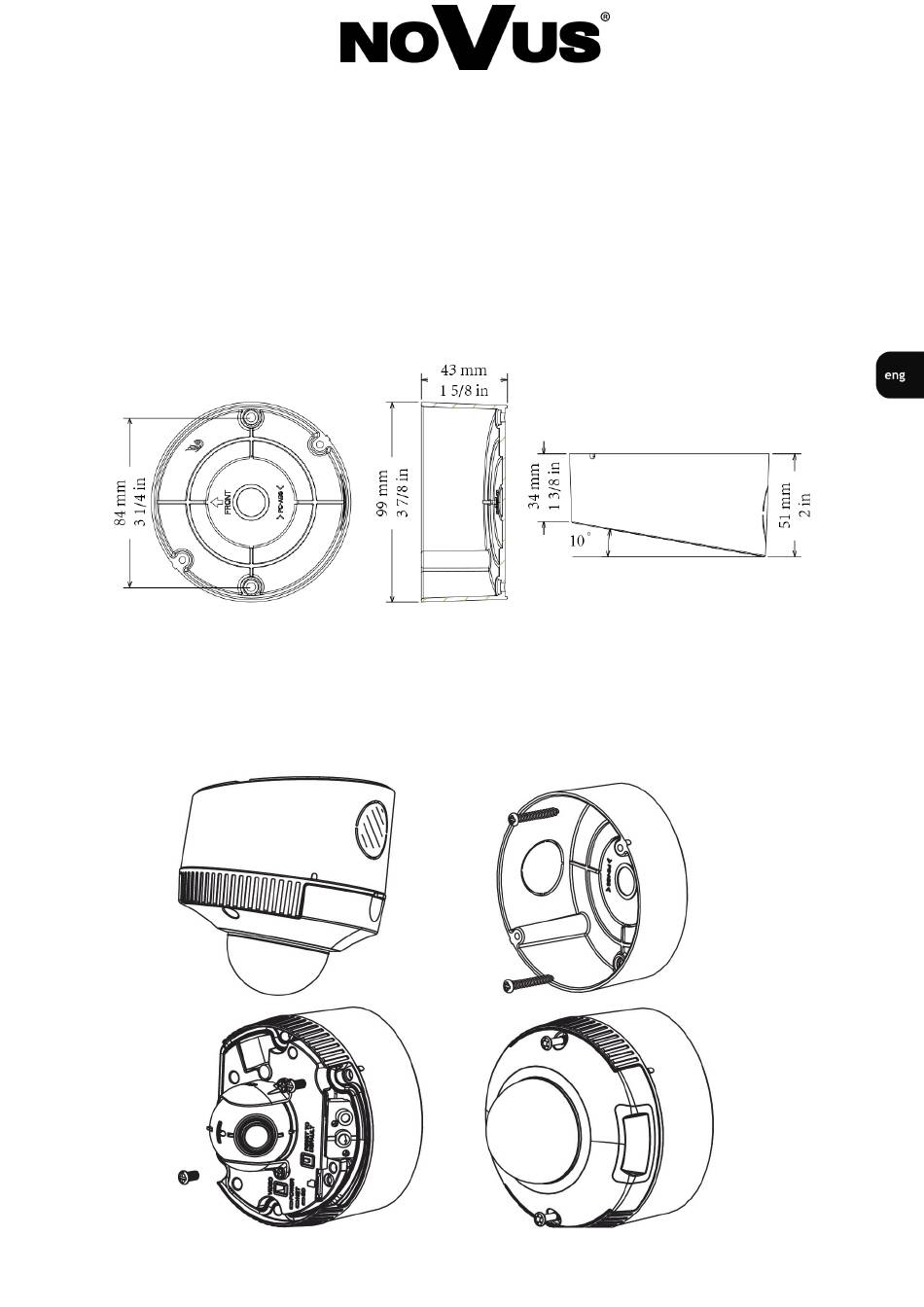

1)Mark the holes on the surface for mounting adpater using the provided template.
2) Cut the hole for cables in the bottom or side of the adapter (A). Attach the adapter to the desired location
using the screws (B).
3) Remove the two screws that secure the camera housing and remove the camera cover.
4) Thread the cable through the grommets. Mount the camera to the adapter and secure it with two screws (C).
5) Attach the camera housing with two screws unscrewed when removing housing (D)
A
C
B
D
