Novus NVB-6030JB User Manual

NVB-6030JB, NVB-6030JB/7043, NVB-6035JB, NVB-6035JB/7043, NVB-6040JB

1. Introduction

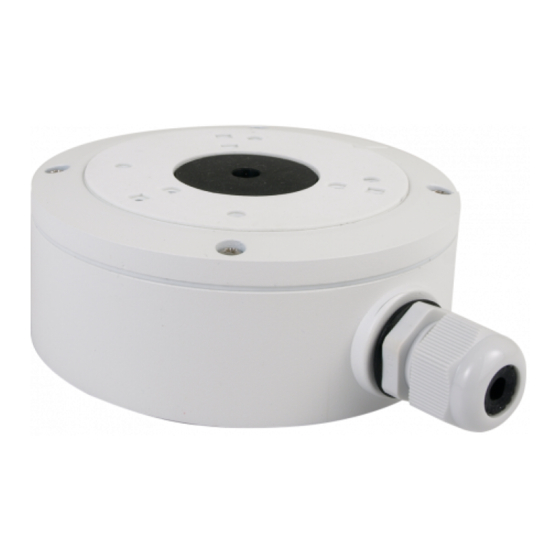

Wall/ceiling internal/external mount brackets NVB-6030JB, NVB-6030JB/7043, NVB-6035JB,
NVB-6035JB/7043 and NVB-6040JB are designed for IP camera 6000 series. A complete list of
compatible cameras is available in the product data sheet on http://www.novuscctv.com/en.

2. Package contents

Wall / ceiling mount bracket
•
Mounting screws/pins
•
Mounting template
•
Foam gasket
•
Cable gland
•

3. Technical specification

Bracket type
Material
Colour
Load capacity
Dimensions
Weight

4. Installation manual

1. Pick a suitable location and provide all necessary wiring in desired bracket mounting place.
2. Mark 4 mounting holes and drill them in selected locations (optionally use mounting template).
3. Stick foam gasket to back side of bracket (base), unscrew bracket base and cover.
4. Put wiring through cable gland, than mount cable gland in one of holes in bracket base. Plug
unused holes with attached end caps and if required, please seal it with appropriate sealing mass.
Tighten cable gland until feel resistance.
5. Screw the base of bracket to the wall. It is recommended to mount bracket so hole from side is
directed downwardly.
CAUTION! Please note that the wall must have enough strength to support the bracket with camera.
If the installation involves cameras 5DN3625AV/940IR-1P, 5V-6502M/F, 2V-6502M/F:
6a. Connect the camera cables and wires into base of bracket.
7a. Screw the camera to the base of bracket. The bracket cover is not used in this case.
If the installation involves other cameras:
6a. Put all cables from camera through the central hole of bracket cover.
7a. Screw the camera to the cover of bracket using screws from accessories, use gasket from cover of
bracket to keep degree of protection.
8a. Connect the camera cables and wires into base of bracket.
9a. Screw cover of bracket (with camera) to the base of bracket.
CAUTION! To keep degree of protection seal every holes and possible leaks place using additional
sealant, both in bracket and camera.
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
User's manual
Wall/ceiling mount bracket, internal/external
Aluminium
White or grey (NVB-6030JB/7043 and NVB-6035JB/7043)
10 kg
Detailed dimensions showed on diagram
Nr
0,4 kg - NVB-6030JB, NVB-6030JB/7043
0,5 kg - NVB-6035JB, NVB-6035JB/7043
1
0,6 kg - NVB-6040JB
2
3
4
5
6
7
8
version 1.2
1 pc
1 set
1 pc
1 pc
1 pc
Nazwa Sztuk
1
Maskownica
Podstawa 1
Kątownik-prowadnica 3
Skrzydełka mocujące 3
Pierścień mocujący 1
Śruba dystansowa 3
7
Śruby maszynowe
3
Pierścień Segera
Opis
tworzywo: ABS
stal
stal
M4
stal
M4, L=55
M4, L=6
Ø=4
