Summary of Contents for Owandy Radiology OwandyCam

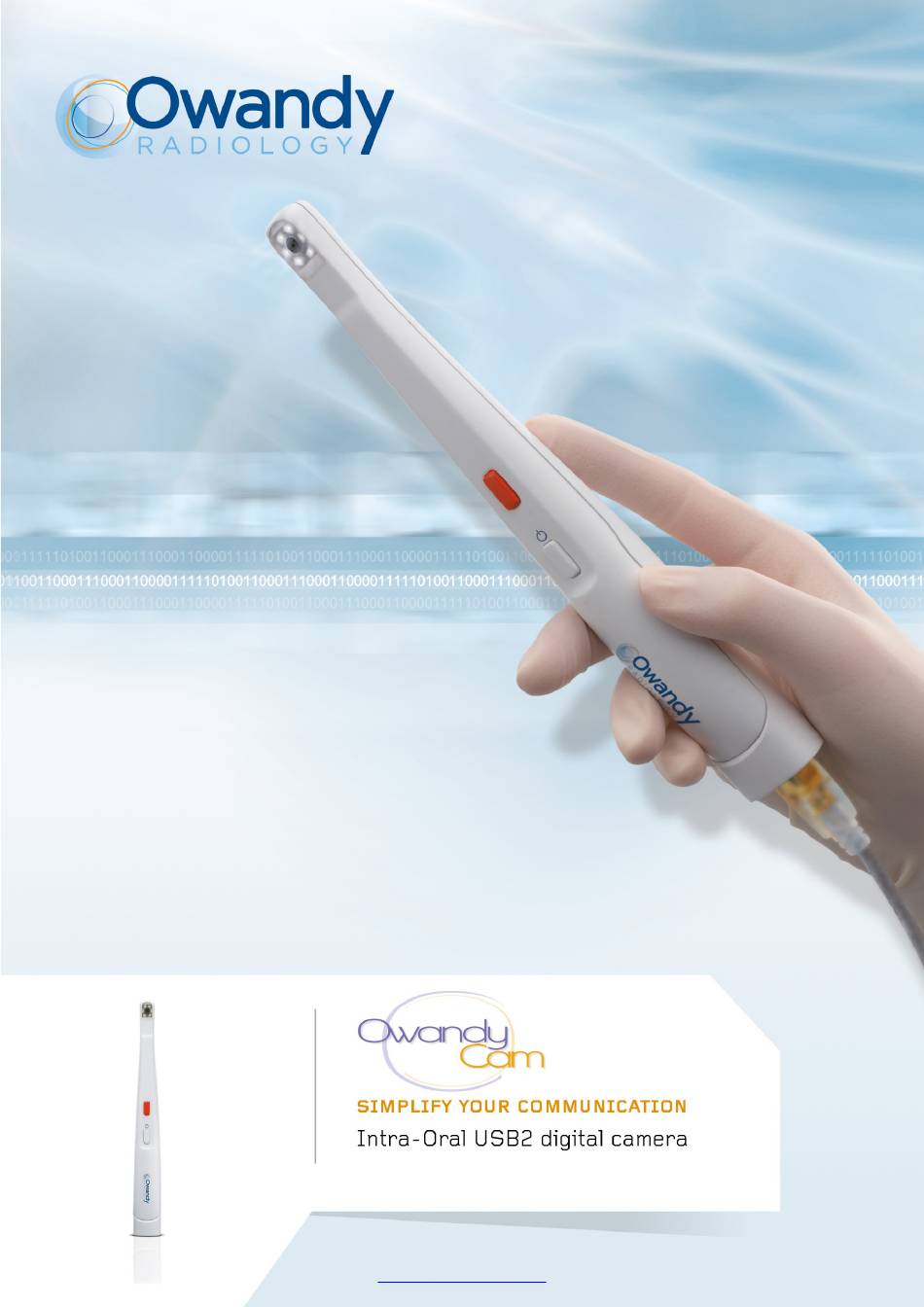

- Page 1 • INSTALLATION AND USER MANUAL 7735006300 • Version 08, October 2017 https://stomshop.pro...
- Page 2 https://stomshop.pro...
-
Page 3: Table Of Contents
SPECIFICATIONS ........................... 22 ACCESSORIES ............................23 OWANDY RADIOLOGY reserves the right to modify its products or their specifications in order to improve their performance, quality or productibility. The specifications of the products or accessories can be modified without prior notification. -
Page 4: Introduction
1. If you have a Class 1 computer, see that its earth is connected to the building’s earth. As the handpiece of the OwandyCam is located in the patient environment (less than 1.5 metres / 4.9 feet from the patient), it is imperative that your computer complies with regulation EN/CEI60601-1, or that your installation including the computer has been made compliant with regulation EN/CEI60601-1. -
Page 5: Liability And Operators
Packaging of equipment when returning to distributor: should it prove necessary to return the OwandyCam set to the distributor, take care to package it in its original packaging after carefully cleaning it. Loss of documentation: every set is delivered with its own documentation. Should this documentation be lost, please contact your distributor in order to obtain replacement documentation. -
Page 6: Marking And Labelling Symbols
(WEEE) and Decree 2005-829 of 20 July 2005 relating to the composition of electrical and electronic equipment and to the elimination of waste produced by this equipment (only in France). OwandyCam – User Manual Page 6/25 https://stomshop.pro... -
Page 7: Content
2 Content Your OwandyCam set is made of the following parts (illustrations not contractually binding): Handpiece Wall support with 2 fixing screws One bag of single-use, disposable hygienic covers One braided USB 2.0 cable (3m) Installation CD-ROM Imaging software CD-ROM (optional) One installation and use manual OwandyCam –... -
Page 8: Installation
Also avoid nearness to sources of electrostatic radiation. Refer to paragraph “1.3 Installation precautions” to ensure the installation is in compliance with the regulations. Install your imaging software before the installation of the drivers and utilities and the OwandyCam equipment set. 3.1.1 Minimum recommended configuration Failure of the computer installations to meet the minimum configuration can prevent the proper operation or the start-up of your OwandyCam set. -
Page 9: Software Installation
3.2.1 Installation of drivers The OwandyCam drivers are compatible with Windows 7, 9, 10 (32 or 64 bits) operating systems. To install the drivers: 1. Insert the CD-ROM in the CD-ROM-driver or download the drivers on our website http://www.owandy.com/support/... -
Page 10: Equipment Installation
Connect the plug of the USB 2.0 cable to one of your computer’s available ports – do not exert force when inserting the plug as this could damage the connector (see image below). OwandyCam – User Manual Page 10/25 https://stomshop.pro... - Page 11 3.3.3 Wall support The OwandyCam can be placed on the support delivered with the set. The support can take the handpiece alone or connected to its USB2.0 cable. Do not fix this wall support the wrong way round or horizontally, as the camera could fall to the floor and be damaged.
-
Page 12: Configuration In The Owandy Imaging Software
3.5 Sharing handpiece between different workstations Sharing OwandyCam enables one or more handpieces to be used in turn in a practice equipped with more than one seat. It is recommended to link the various workstations in a network in order to allow the central storage and sharing of images. -
Page 13: Use
4.2 Buttons on the handpiece You will find below a description of all the actuators provided on the OwandyCam set’s handpiece. 6 white light LEDs Focus-free lens... -
Page 14: Capturing An Image
You are now ready to examine. The camera can then be positioned manually in front of the patient’s teeth or in his endobuccal cavity. OwandyCam – User Manual Page 14/25 https://stomshop.pro... - Page 15 Modes of operation The OwandyCam set can operate according to two methods: • By the Twain protocol: select the “OwandyCam USB” driver under the TWAIN capture option in your imaging software. Then run the desired TWAIN capture. • By the Owandy imaging software: click on the “Camera” icon from the dental regime module. Then click on the “Video”...
- Page 16 Opens Format menu - See « Configuration menus » Opens Source menu - See « Configuration menus » Freezes or activates the video flow using the computer’s mouse (button equivalent to the camera’s capture buttons) OwandyCam – User Manual Page 16/25 https://stomshop.pro...
- Page 17 , to select which images you want to keep and export to your imaging software. When an image is captured and replaces a miniature already selected, the latter is definitively removed from your capture database and cannot be recovered to export it to your imaging software. OwandyCam – User Manual Page 17/25 https://stomshop.pro...
- Page 18 The format menu specifically gives you access to image resolution adjustment (from 160x120px up to 1280x1024px). The more you increase the resolution of your image, the more the size of the file so generated will increase, and the more the image flow frequency will decrease. OwandyCam – User Manual Page 18/25 https://stomshop.pro...
-
Page 19: Hygiene And Maintenance
(damage to hard disk or computer). Ask your computer retailer for advice as to the most suitable backup system for your computer configuration (external or extractable disk, Zip or Jaz system, CD-ROM or DVD writer, etc.). Test and store copies in a safe place. OwandyCam – User Manual Page 19/25 https://stomshop.pro... -
Page 20: Troubleshooting
Check your computer’s screen to determine whether the black marks. black marks result from a fault in it. If necessary, change it. • Clean the camera lens gently. • If necessary contact your retailer or computer specialist. OwandyCam – User Manual Page 20/25 https://stomshop.pro... -
Page 21: Image Quality
Readjust the “sharpness” parameter in the “properties” tab of the camera video window’s source menu. • Check that the hygienic cover has not been installed the wrong way round on the head of the endoscope: refer to chap. 4.3.1. OwandyCam – User Manual Page 21/25 https://stomshop.pro... -
Page 22: Specifications
Input current of handpiece 0.5 A max. Use temperature +5°C to +68°C / 41°F to 154°F Atmospheric pressure for use 860hPa to 1060hPa ≤80% Humidity for use Regulations NF EN/CEI60601-1 Compliance with regulations NF EN/CEI60601-1-2 OwandyCam – User Manual Page 22/25 https://stomshop.pro... -
Page 23: Accessories
8 Accessories Disposable, single-use hygienic covers (for handpieces) 7835000500 Bag of 20 USB 2.0 Cable 7758000700 3m / 9.8foot cable OwandyCam – User Manual Page 23/25 https://stomshop.pro... - Page 24 This page is intentionally left blank for your notes: OwandyCam – User Manual Page 24/25 https://stomshop.pro...
- Page 25 https://stomshop.pro...
