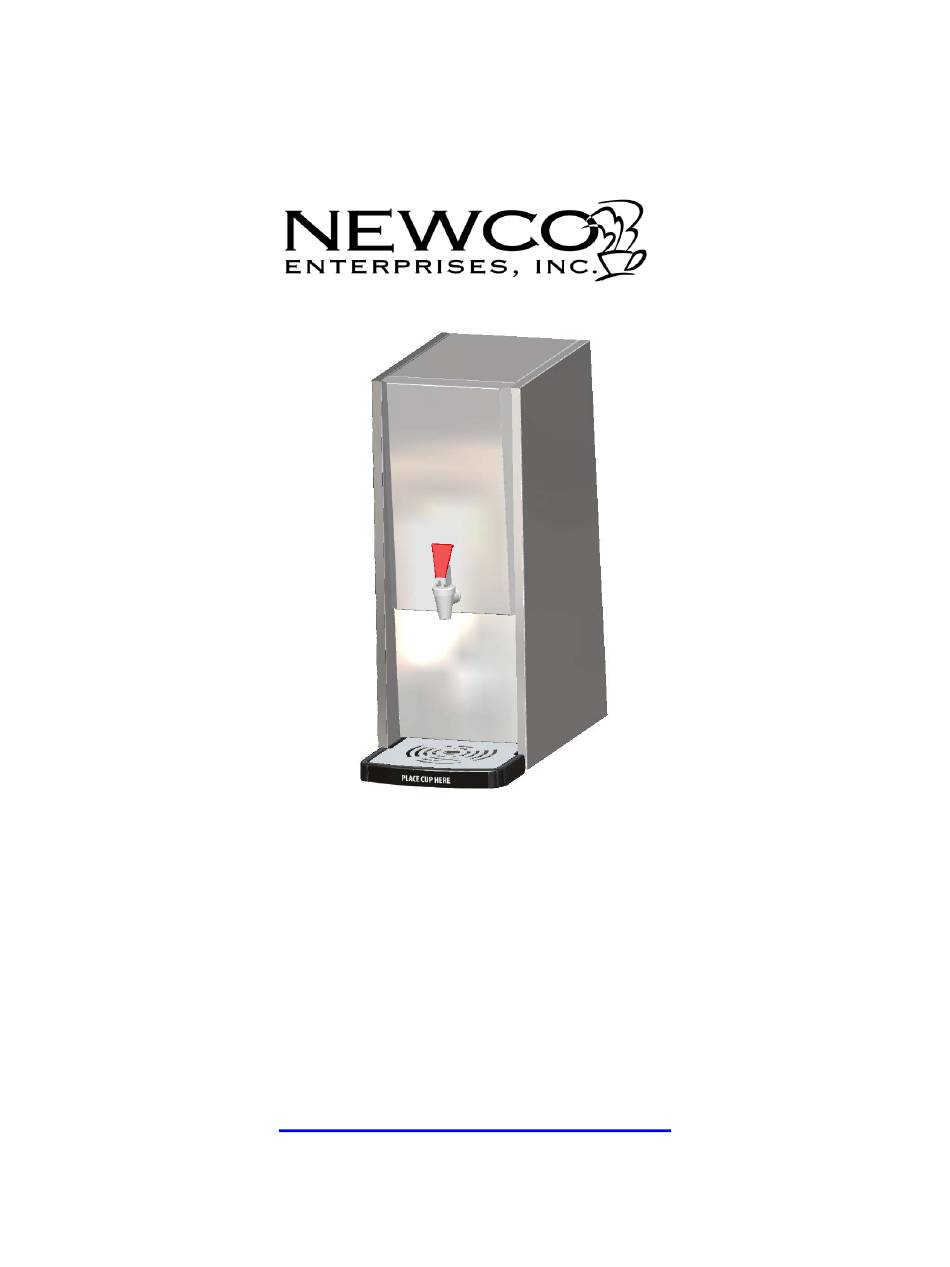

- Page 1 PN 121586 8-29-2013 NHW-5 HOT WATER MACHINE Operating Instruction Manual Model NHW-5 1-800-325-7867 3650 NEW TOWN BLVD ST. CHARLES MO 63301 WWW.NEWCOCOFFEE.COM...
-
Page 2: Table Of Contents
PN 121586 8-29-2013 Table of Contents Machine Dimensions & Specifications ......5 Plumber’s Installation Instructions ......6 Electrical Hook-Up ............6 Installation Instructions..........6 Operating Instructions..........7 Temperature Adjustment ..........7 Machine Troubleshooting ..........8 ... - Page 3 PN 121586 8-29-2013 Warning Labels NOTICE: Read and follow all notices posted on this machine. Do not damage or destroy these notices as they are for your protection WARNING DO NOT OVERLOAD CIRCUIT. ALWAYS ELECTRICALLY GROUND THE CHASSIS OR ADAPTOR PLUG. ...
- Page 4 Newco Enterprises, Inc. Prompt disposition will be made if item proves to be defective, within warranty. Before returning any item, write or call Newco, or the dealer from whom the product was purchased, giving model number, serial number, and date of purchase, and describe nature of the defect.
-
Page 5: Machine Dimensions & Specifications
PN 121586 8-29-2013 Machine Dimensions & Specifications 120 VAC-1600W HEATER-15A USA POWER SUPPLY 120 VAC-1400W HEATER-15A CANADIAN POWER SUPPLY 1/2 GALLON TANK 8-12 OZ CUP SIZE TEMPERATURE RANGE 180-205F... -
Page 6: Plumber's Installation Instructions
PN 121586 8-29-2013 Plumber’s Installation Instructions CAUTION: Disconnect Power to machine before proceeding with plumbing installation. Attach water line to water filter, rear of machine. Flush water line before installing machine. Machine should be connected to COLD WATER LINE ONLY. Water pressure should be at least 40 lbs. -
Page 7: Operating Instructions
PN 121586 8-29-2013 Operating Instructions Once the machine has filled and water is heated to temperature, machine is ready to dispense Hot Water. To dispense Hot Water, place cup or bowl under dispense nozzle. Pull down Red Handle on Dispense Nozzle to dispense hot water, and release nozzle when finished. -
Page 8: Machine Troubleshooting
PN 121586 8-29-2013 Machine Troubleshooting PROBLEM CAUSE CORRECTIVE ACTION 1. No water a) Water turned off a) Turn water on –open b) Water line not shutoff valve connected b) Ensure water line is c) Faulty water inlet connected valve c) Check valve and connections-replace if necessary 2. -
Page 9: Machine Parts Locator
PN 121586 8-29-2013 Machine Parts Locator... -
Page 10: Machine Parts Locator-Listing
PN 121586 8-29-2013 Machine Parts Locator-Listing 100078 FOOT,BUMPER WITH SCREW 102770 FAUCET ACE W/RED HANDLE 110626 SWITCH,DP/ST,RECT,ROCKER 110958 RELAY,12V DC,SPST,30 AMP 111719 BOARD,ECONO HOT WATER DIS 120378 VALVE ASY,LCD1,HOT 121304 DRIP TRAY,LCD-1 121305 GRID,DRIP TRAY,LCD-1 121576 TNK ASY,COMPCT HOT/W,1600 120898 TANK BODY W/INSUL,LCD-1 111593 THERM,MAN,VERTAB,221F,25A... -
Page 11: Wiring Diagram
PN 121586 8-29-2013 Wiring Diagram...
