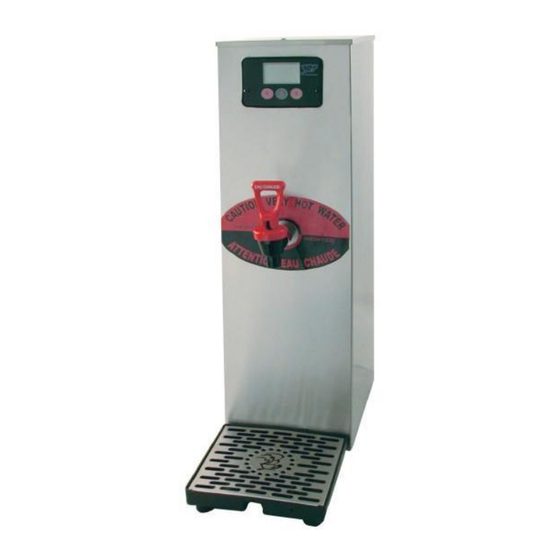

NH W - 15 H O T WATER MAC H I N E
OPERATING MANUAL/
INSTALLATION
120/240 V, 1650/6600 W US
120/240 V, 1350/5500 W CAN
CONVERTIBLE
2 GA LLON
DRIP TRAY INCLUDED
ADVANCED TEMPERATURE
CONTROL
TVT TECHNOLOGY
NEW C O
E N T E P R I S E S
3650 NEW TOWN BLVD
ST. CHARLES MISSOURI
63301
Phone: 636-925-1202
800-325-7867
Fax: 636-925-0029
WWW.NEWCOCOFFEE.COM
OP Manual P/N 104138
Rev 20200528
Advertisement
Related Manuals for Newco NHW-15
Summary of Contents for Newco NHW-15
- Page 1 OP Manual P/N 104138 Rev 20200528 NH W - 15 H O T WATER MAC H I N E OPERATING MANUAL/ INSTALLATION 120/240 V, 1650/6600 W US 120/240 V, 1350/5500 W CAN CONVERTIBLE 2 GA LLON DRIP TRAY INCLUDED ADVANCED TEMPERATURE CONTROL TVT TECHNOLOGY NEW C O...
-
Page 2: Warranty
AT NEWCO’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall Newco be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages. - Page 3 SPECIFICATIONS MODEL NW15 HOT WATER MACHINE 120/240 VOLTS 3 GAL/HR (120V) 6 GAL/HR (240V) 1 PH OPERATING TEMP RANGE: 170 DEG F- 208 DEG F 7" 2-9/16" 24-1/8" 1-3/8" 12-3/8" 1-1/2" 6-1/4" 8-1/2" * UNIT CAN BE CONVERTED FROM 120 V 1PH TO 240V 1 P H (240V POWER CORD NOT SUPPLIED) SEE 240 V SCHEMATIC...
-
Page 4: Machine Setup
MACHINE SETUP PLUMBER'S INSTALLATION INSTRUCTIONS CAUTION: Power to machine must be OFF before proceeding with plumbing installation. 1) Flush water line before installing machine. Machine should be connected to COLD WATER LINE for best operation. 2) Water pressure should be at least 20 psi. For less than a 25 ft. run, use 1/4" copper tubing and connect to 1/2"... - Page 5 NHW-15 OPERATING INSTRUCTIONS CENTER BUTTON HOLD DOWN FOR 5 SECONDS TO ENTER PROGRAM MODES RIGHT BUTTON: LEFT BUTTON: TOGGLE TOGGLE TEMP UP TEMP DOWN IN PROGRAMMING MODE IN PROGRAMMING MODE MONITOR LOWER TANK TEMP IN MONITOR UPPER TANK TEMP NORMAL OPERATING MODE...
- Page 6 PLUMBING AND ELECTRICAL COMPONENTS 800007 C RING UNDER NUT NOT VISIBLE...
- Page 7 PLUMBING AND ELECTRICAL COMPONENTS (CONT) FIGURE # QTY. PART # DESCRIPTION 104113 FAUCET-HI HEAT 104114 NUT-HI HEAT FAUCET 800236 FITTING, TEA FAUCET 104118 FITTING-EXTENSION, FAUCET 800244 GASKET-NYLON .671*.937*.062 104111 VALVE ASSY-HOT WATER 100155 CONNECTOR-MALE ¼ C X 1/8 NPT WITH NUT 104135 TUBE-COPPER INLET 511053...
- Page 9 WATER TANK ASSY (CONT) FIGURE # QTY. PART # DESCRIPTION 104108 LID-SPOTWELD HOT WATER 704221 GASKET-TANK SILICONE 151677 PROBE-DUAL THERMISTOR 102019 TUBE-WATER INLET 701286-10 ELEMENT, DUAL VOLTAGE 1350W/5500W 100431 NUT-BRASS 9/16-24 100030 GASKET-BRASS .566 ID 101720 CONNECT FM 3/C X 1/8 100149 ELBOW-1/4C 90 DEG W 704222...
- Page 10 FLOAT SWITCH ASSEMBLY DRIP TRAY FLOAT SWITCH ASSY-HI TEMP PN 151529 DRIP TRAY GRATE PN 104134 BRACKET-FLOAT SWITCH PN 151734 DRIP TRAY PN 1041339...
- Page 11 ER4 – Bottom thermistor open ER5 – Heater has run for more than 45 minutes continuously ER6 – Fill time has run for more than 6 minutes Newco Enterprises, Inc. * 1735 South River Rd. * P.O. Box 852 * St. Charles, MO 63302...
