Installation Instruction
Carefully open the carton, remove contents and lay out on cardboard or other
!
protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure
!
that all components were received undamaged. Do not use damaged or defective
parts.
Carefully read all instructions before attempting installation.
!
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before
!
installation, and carefully follow all instructions contained herein. Use proper safety
equipment during installation.
Please call a qualified installation contractor for help if you don't understand these
!
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
UNPACKING INSTRUCTIONS
1
English
Advertisement
Table of Contents
Related Manuals for DMP Electronics Non-VESA Adapter
Summary of Contents for DMP Electronics Non-VESA Adapter

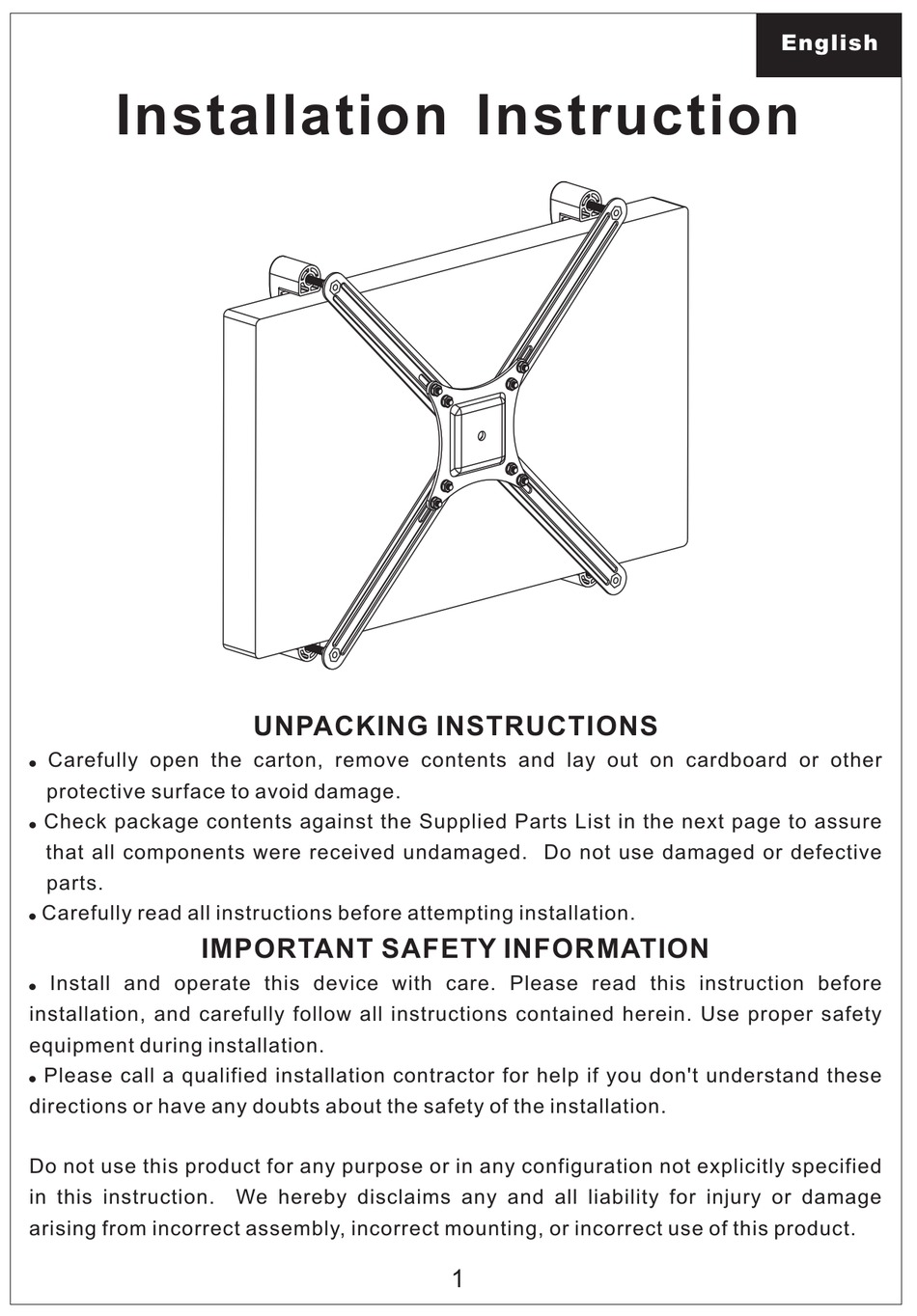

- Page 1 English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
- Page 2 Supplied Par ts List (4) Metal Bar-a (4) “L” Support-b (4) Plastic Cover-c (8)M4x12 Bolt-d (8)M4 Nut-e (8)M4 Washer-f (4)M6x50 Bolt-g (4)M6x75 Bolt-h Pre-Assembly g or h Use the Bolt(g) or Bolt(h) according to the thickness of your monitor. For your information, the Bolt(g) is good for the monitor with thickness 25-45mm, while...
