Installation and Mounting for C3900:
Item No. Part No.
1 140-1533-00
2 220-1174-00
3 220-1175-00
6 321-0126-00
7 T03745
Installation and Mounting for C3100:
The mounting of C3100 speaker using the clamp-on design bracket will avoid the need for drilling into the aluminum body of the new Ford
F150 or Expedition.
Step 1. Locate the aluminum cross member under the front end of the vehicle behind the grill & Eco-Boost Intercooler (See Figure-1).
Step 2. Locate the slotted flange of the main bracket & position it over the top of the vehicle's cross member. While pushing up on the
vehicle's black plastic splash guard, slip the flange of the bracket between the cross member & the plastic splash guard as shown in Figure
3. Slide the bracket into position up against the back side of the vehicle's cross member as shown in Figure 4. Position the assembly on the
cross member so that the speakers will clear all of the vehicles hoses & etc.
Step 3. Insert the short flange of the clamping bracket into the slot in the main bracket as shown in Figure 5 & rotate the clamping bracket up
to the bottom of the vehicles cross member as shown in Figure 6.
Note: Make sure the short clamp bracket flange stays engaged in the slot in the main bracket while you rotate the clamp bracket
into position.
Step 4. Thread two (2) ¼"-20 X 1 ¼" Phillips pan head screws with two (2) ¼" split lock washers through the slots in the clamp bracket and
into the threaded inserts in the main bracket. Tighten the screws until the lock washers fully flatten out and the clamp bracket is tight up
against the main bracket flange (See Figure 7).
Step 5. Step 5. Install the single or dual speakers by threading four (4) #12 X 1" Long Phillips pan head sheet metal screws with four (4) ¼"
internal tooth star lock washers for each speaker body through the holes in the main bracket and into the holes in the back side of the plastic
speaker body (See Figure 8 -C3100). Tighten the screws until the screws and washers fully bottom out against the bracket. Do not over
tighten. Note: Make sure the speakers are mounted in the correct orientation with the Code 3 Speaker Label at the top of the assem-
bly (See Figure 8 - C3100 for correct speaker orientation). Caution: Severe damage could occur to the speaker if it is not mounted
in the proper orientation.
Step 6. Connect the unit wires to customer supplied wires & route to the desired power source.
Description
100 Watt Slim Speaker
Speaker Bracket
Speaker Bracket
1/4"-20 x 1 1/4" Machine Screw
1/4" Split Lock Washer

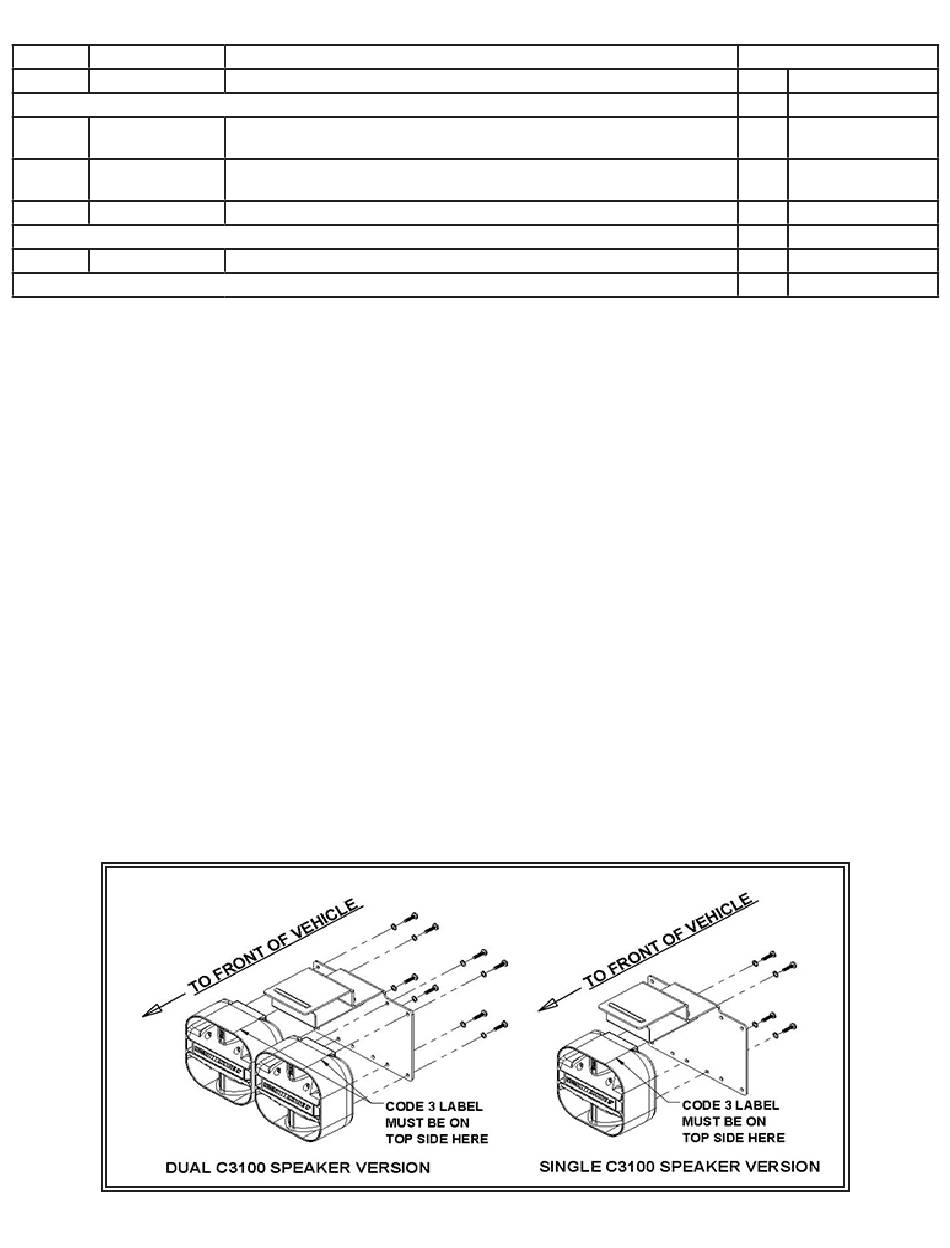

Figure 8
Qty.
1 Single Speaker
2 Dual Speaker
1 Single and Dual
Speaker
1 Single and Dual
Speaker
4 Single Speaker
6 Dual Speaker
4 Single Speaker
6 Dual Speaker
Page 4 of 8
