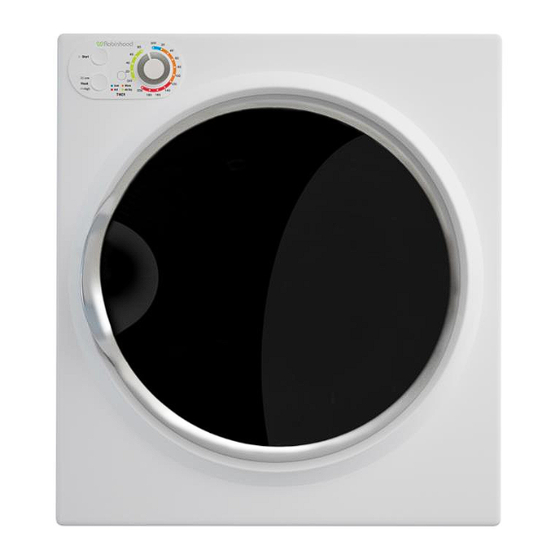

- Page 1 Installation and Operating Instructions Issue: 1 Description: ROBINHOOD VENTED DRYER 4.5KG WHITE Model Number: RHVD45UDW Actual unit may vary from image above...
-
Page 2: Table Of Contents
It is important that you retain these instructions and your proof of purchase along with any other important documents about this product for future reference. Due to continual product development, Robinhood reserves the right to alter specifications or appearances without notice. Important Safety Instructions……………………………………………………………………………………………………………………..1-2 Appliance Details……………………………………………………………………………………………………………………………………………3... -
Page 3: Important Safety Instructions
Important Safety Instructions When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 Important Safety Instructions • Do not place naked flame sources, such as candles, on the appliance. • Do not locate the appliance or cord near heat sources such as radiators, heaters, air ducts or direct sunlight. • Do not block any of the ventilation openings. Ensure that vents are not covered by newspapers, tablecloths, curtains, etc.
-
Page 5: Appliance Details
Appliance details Model RHVD45UDW Maximum Drying Capacity 4.5 kg Rated Voltage 220 – 240 V Rated Frequency 50 Hz Rated Wattage 1450 W Net Weight 20 kg Dimension (WxDxH) 600 mm x 435 mm x 700 mm... -
Page 6: Installation
Installation Instructions Where to place your dryer Place the dryer in a dry well ventilated area. It should be positioned away from heat and direct sunlight. If the dryer is not wall mounted, it must be placed on firm horizontal ground. ... - Page 7 Installation Instructions Continued Fix the wall hanging brackets (2 supplied) to the wall securely (eg. into the stud.) Fit a timber slat between the studs to mount the brackets onto if the stud position is too wide. To install the hanging hook to timber. Please see Fig 2. Align hanging hooks and fasten screws tightly.
- Page 8 Installation Instructions- Upside down This dryer can be installed upside down if required. Please follow below instructions: Take off the rubber plugs on the top of the unit (See Fig 6). Then take off the four legs from the bottom (See Fig 7). Put the dryer up-side-down and install the four legs at the bottom (Top side of the original dryer, see Fig.8).
-
Page 9: Operating Instructions
Operation Instructions Electrical requirements: The unit is required to be plugged into a three pin socket that is reliably grounded. The power supply must be 220-240V. Plug the power cord into the socket. Loading the dryer: It is recommended that items are placed into the dryer one at a time. This ensures they are not tangled which results in uneven drying. - Page 10 Operation Instructions Control Panel Functions Heat Selector button: Select ' High Dry' for items that are particularly bulky or large quantities. Select 'Low dry' for delicate items such as Silk, nylon, linen etc. Start button: After having set up the Heat Selector and Timer Dial, press the Start button. The dryer will start and work until the program is finished.
-
Page 11: Cleaning And Maintenance
Cleaning and Maintenance Clean the Lint filter: Please unplug the power cord prior to any cleaning. The lint filter must be in place whenever drying. It must be cleaned before each use. Removing the filters: Remove by pulling outwards with fingers, inserted into the four holes around the exhaust vent shroud. -
Page 12: Troubleshooting
Trouble Shooting Please review below table before calling for service:... -
Page 13: Warranty Certificate (New Zealand)
The following conditions apply in respect of the warranty given in this certificate: Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: ... -
Page 14: Warranty Certificate (Australia)
The product was used outdoors. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
